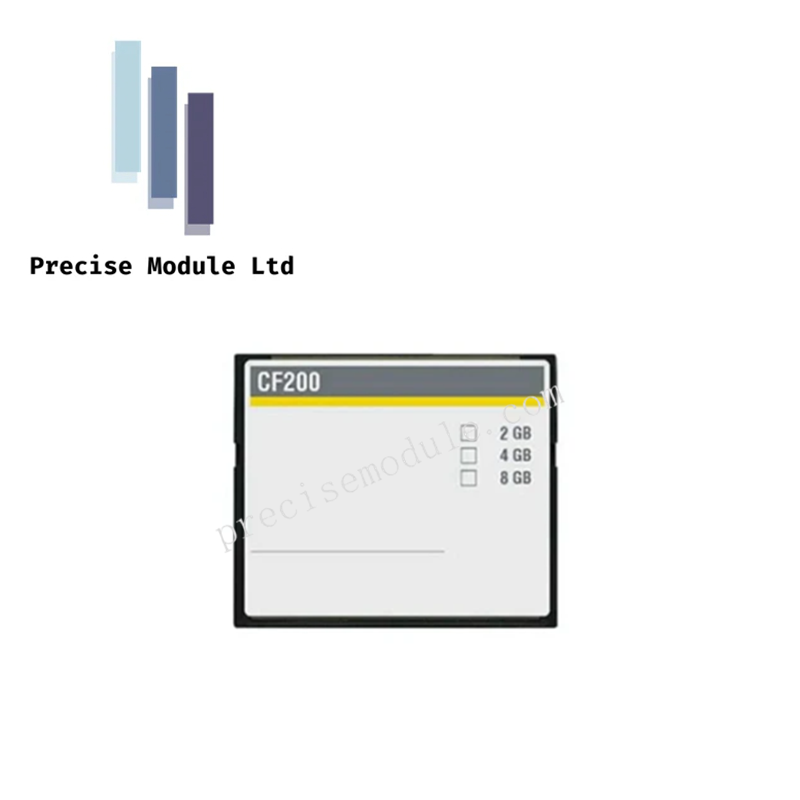

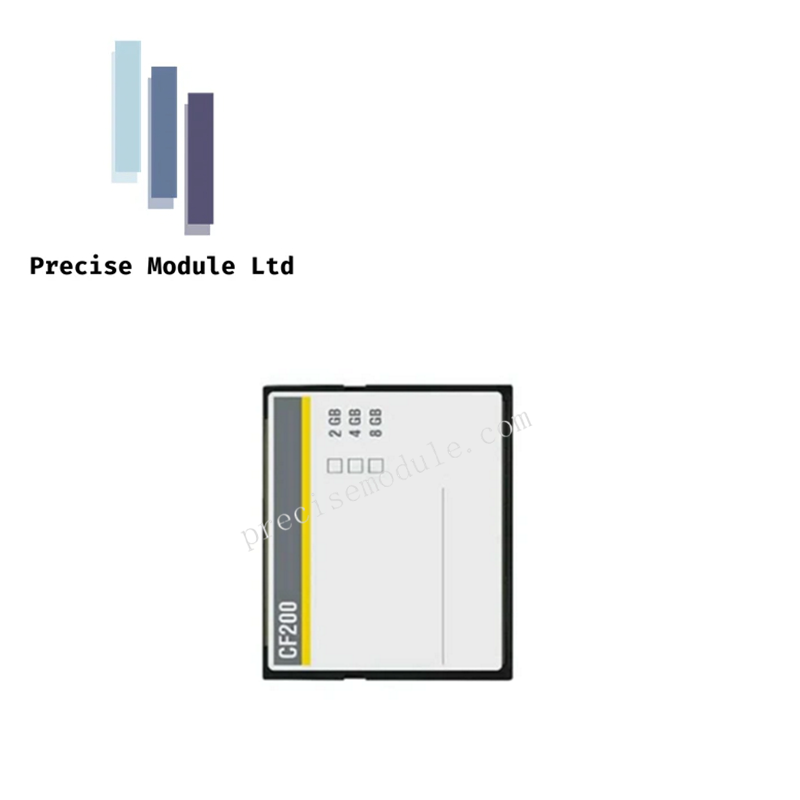

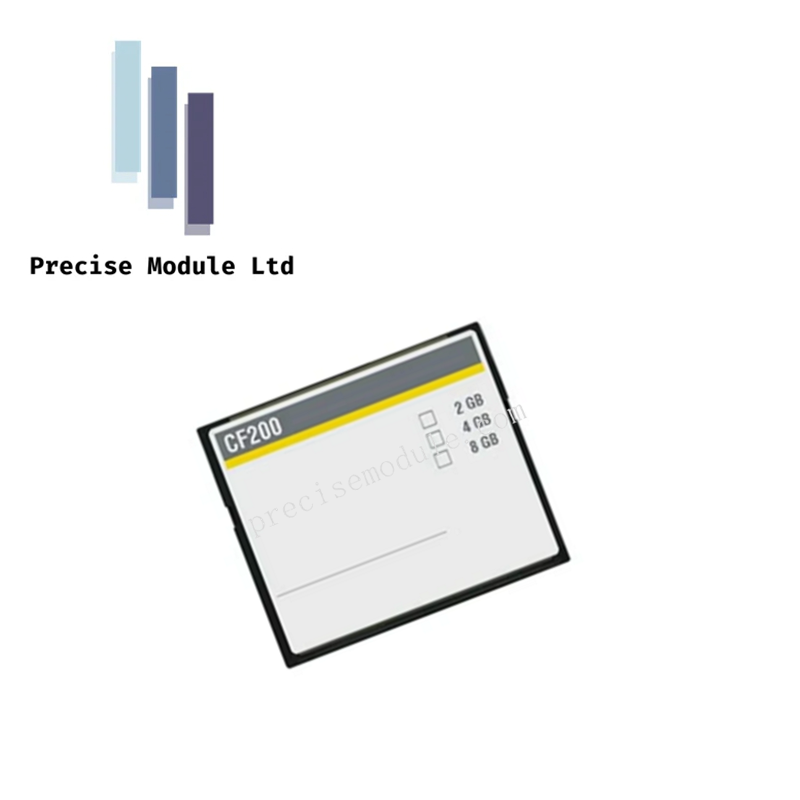

Bachmann 00016586-00 CF200 Compact Flash Card 4 GB UDMA

Description

The 00016586-00 CF200 from Bachmann is a rugged Type I compact flash memory card built for industrial automation systems. It offers fast data transfer, extended temperature tolerance, and long-term reliability for demanding environments.

Specifications

• Model: 00016586-00 CF200

• Manufacturer: Bachmann electronic GmbH

• Type: Type I Compact Flash (CF) memory card

• Storage Capacity: 2 GB / 4 GB / 8 GB options

• Data Transfer Rate: Up to 66 MB/s (UDMA 4 burst mode)

• Flash Type: SLC (Single-Level Cell) NAND

• Operating Voltage: 3.3 V / 5 V (auto-adaptive)

• Read/Write Cycles: Over 100,000 cycles

• MTBF at 25°C: Greater than 3,000,000 hours (based on spare memory availability)

• Vibration Resistance: 20 G, 20 Hz to 2 kHz

• Shock Resistance: 1500 G, 0.5 ms half-sine wave

• Operating Temperature: -40°C to +85°C

• Storage Temperature: -40°C to +100°C

• Humidity (Operating): 5% to 85%, non-condensing

• Humidity (Storage): 5% to 85%, non-condensing

Features

• Industrial Compliance: Meets Type I CF specifications for embedded systems

• Flexible Capacity Options: Available in 2 GB, 4 GB, and 8 GB variants

• High-Speed Performance: Supports UDMA for rapid data access and logging

• Write Protection: Configurable via operating software for data integrity

• Extended Temperature Range: Operates reliably in extreme conditions

• Long-Term Reliability: SLC flash and high MTBF ensure stable performance

• Shock and Vibration Tolerance: Withstands harsh mechanical environments
