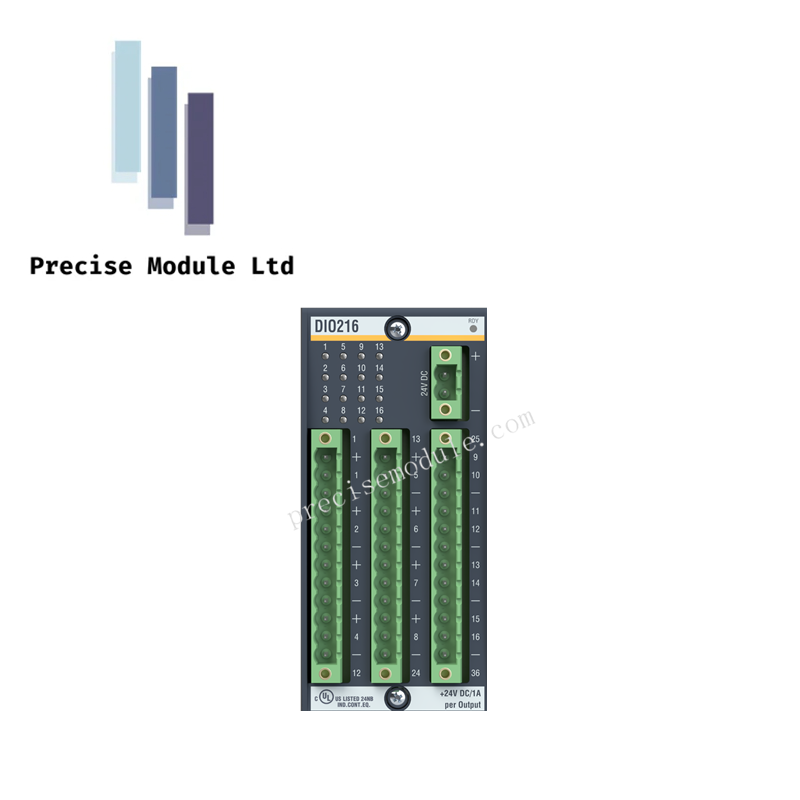

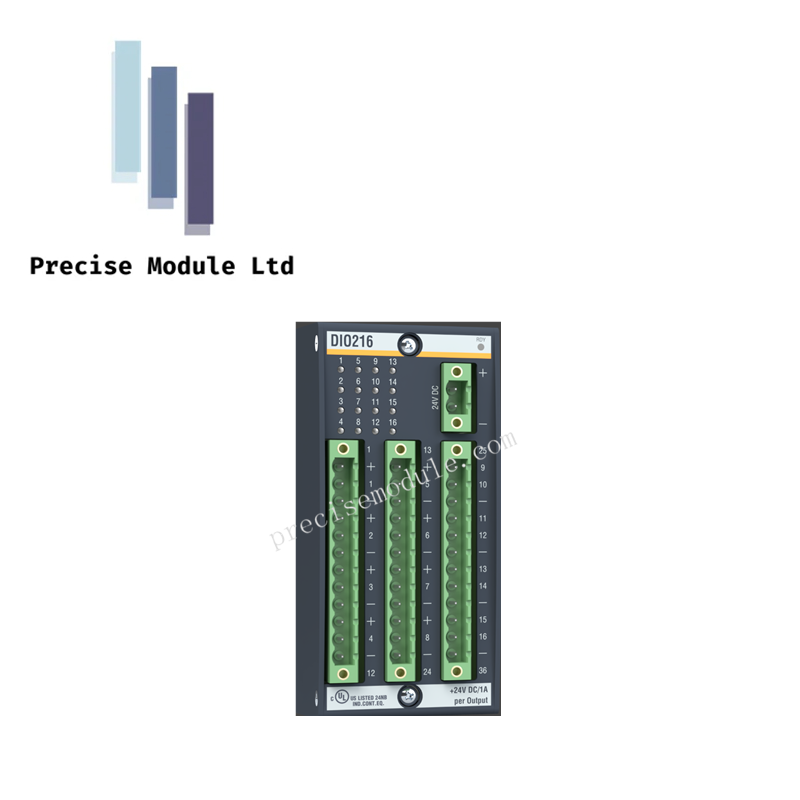

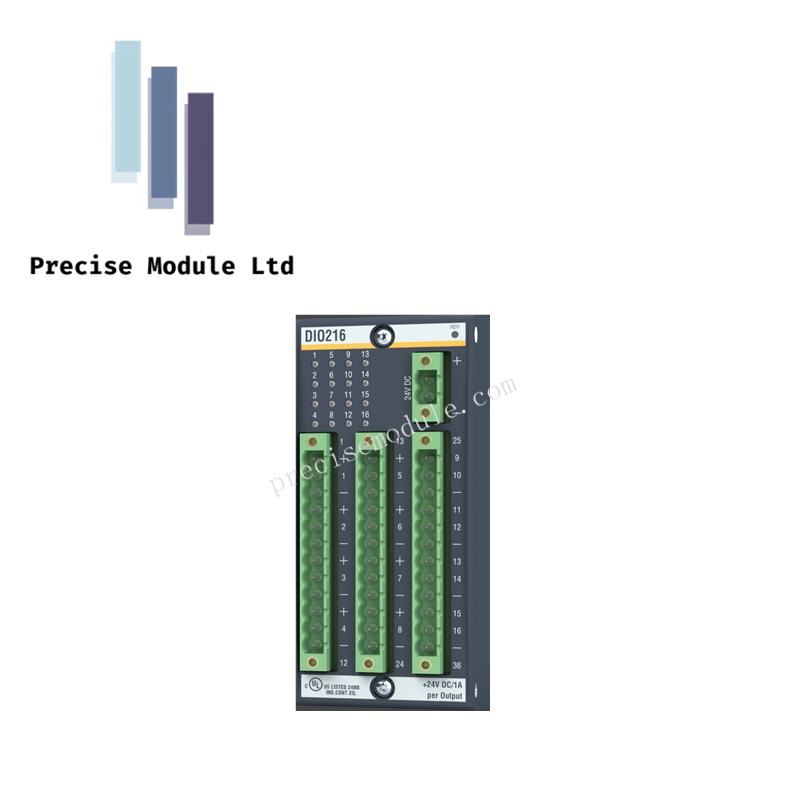

The DIO216 from Bachmann is a high-speed digital input/output module designed for M1 automation systems. It combines 16 inputs and 16 outputs in a compact housing, enabling precise and reliable signal processing in industrial environments.
Specifications
Manufacturer: Bachmann
Model: DIO216
Type: Digital I/O Module
Digital Inputs: 16 channels, 24V DC
Digital Outputs: 16 channels, transistor type
Output Protection: Short-circuit and overload protection
Signal Delay: Low latency for real-time control
Power Supply: 24V DC nominal
Dimensions: 55 mm × 119 mm × 70 mm
Weight: Approx. 320 g
Mounting Method: DIN rail or cabinet integration
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Range: 5% to 95% RH, non-condensing
Pollution Degree: 2 (IEC 60664-1 standard)
Certifications: CE, cULus, CCC
Features
Dual I/O Channels: Offers 16 inputs and 16 outputs for flexible control
Fast Switching: Supports high-speed signal processing with minimal delay
Robust Output Design: Transistor outputs with integrated protection circuitry
Compact Form Factor: Saves space in control cabinets and supports modular expansion
System Compatibility: Seamlessly integrates with Bachmann M1 automation platforms
Industrial Reliability: Built to perform in demanding environments with wide temperature tolerance
Certified Safety: Meets global standards for industrial control and automation
