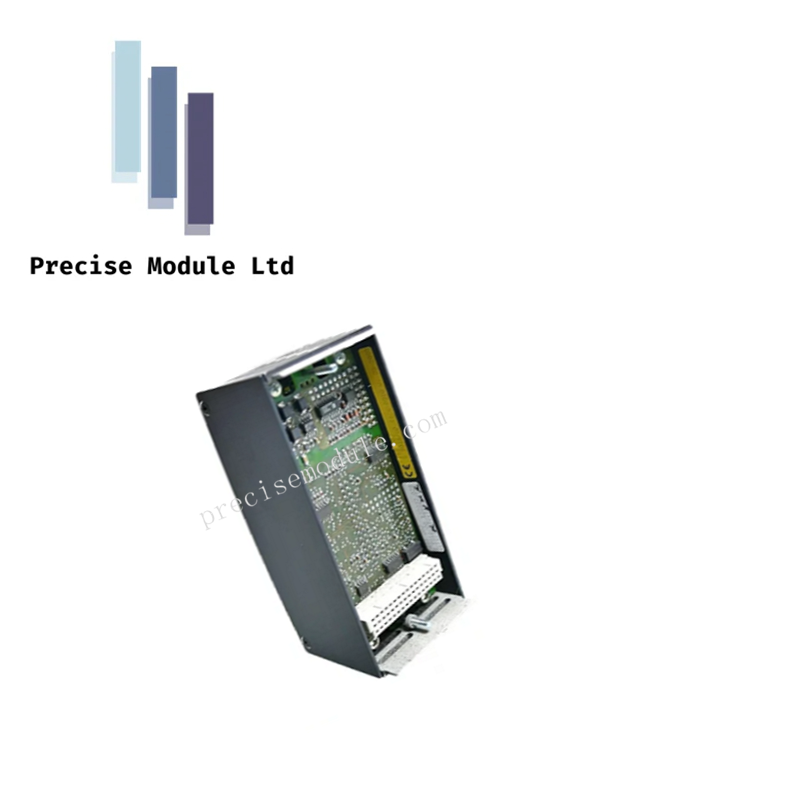

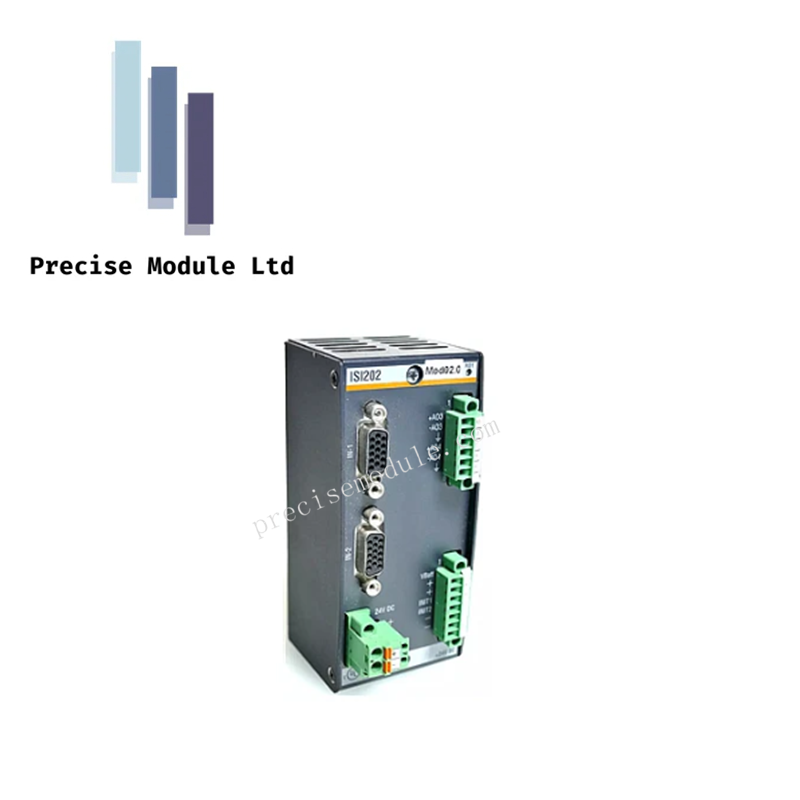

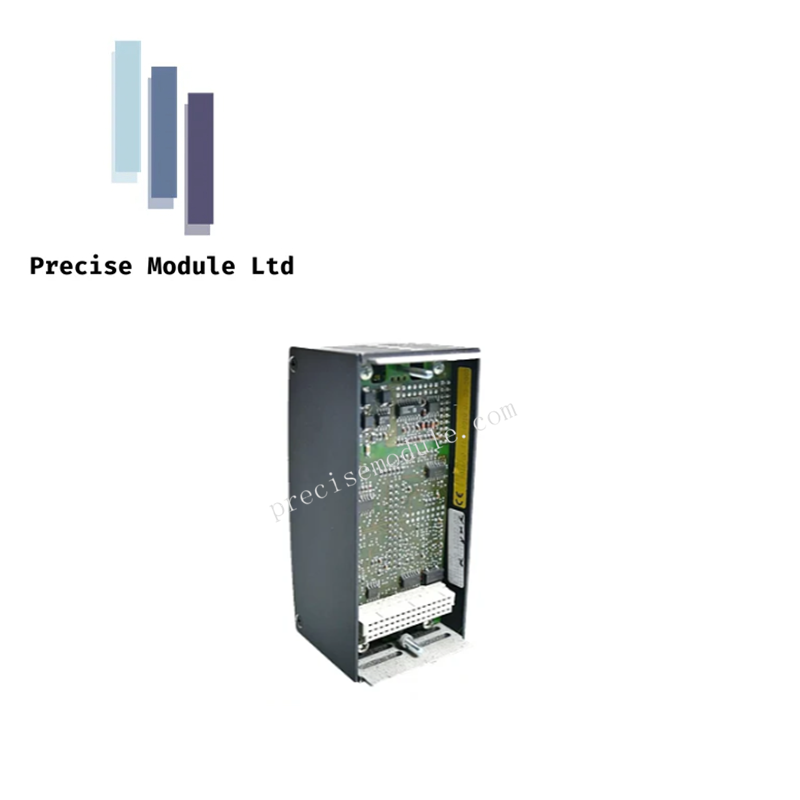

Bachmann ISI202 Encoder Interface Module

Description

The ISI202 from Bachmann is a high-performance encoder interface module designed for precise motion control applications. It supports both incremental and SSI encoders, offering reliable signal evaluation and analog output for automation systems.

Specifications

• Manufacturer: Bachmann electronic GmbH

• Model: ISI202

• Type: Encoder Interface Module

• Input Channels:

  • Incremental or SSI encoder: 2 channels

  • Digital inputs (reference, trigger): 2 channels

• Output Channels:

  • Analog outputs: 2 channels (±10 VDC)

• Encoder Power Supply: Provided directly via connectors

• Voltage Monitoring: Supports all external supply voltages

• Maximum Input Frequency: 1 MHz or 5 MHz depending on configuration

• Counter Resolution: 24 bits, extendable to 32 bits via software

• Supported Input Signals: A, A+, B, B+, N, N+

• Signal Evaluation Modes: 1-edge, 2-edge, 4-edge, or pulse direction

• Weight: 0.99 lbs (approx. 0.45 kg)

Features

• Dual Encoder Support: Handles both incremental and SSI encoder types

• Flexible Signal Evaluation: Offers multiple edge detection and direction modes

• High-Speed Input: Accepts encoder signals up to 5 MHz for dynamic control

• Precision Analog Output: ±10 VDC channels for actuator or drive feedback

• Integrated Voltage Monitoring: Tracks external supply levels for diagnostics

• Compact and Lightweight: Weighs under 1 lb, ideal for space-constrained systems

• System Compatibility: Designed for seamless integration with Bachmann M1 controllers

• Reliable Performance: Built for industrial environments requiring accurate motion feedback
