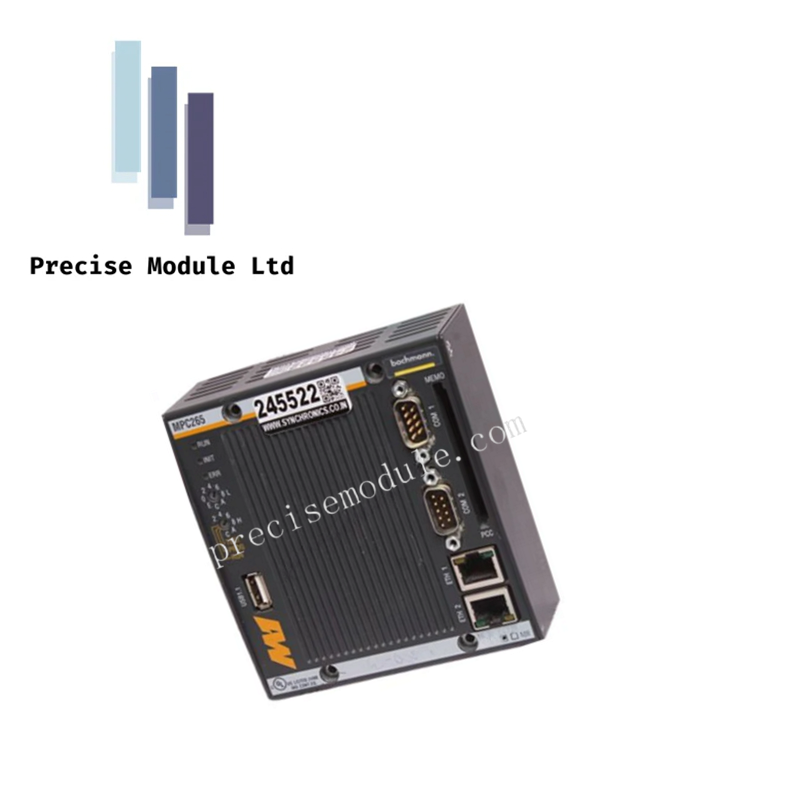

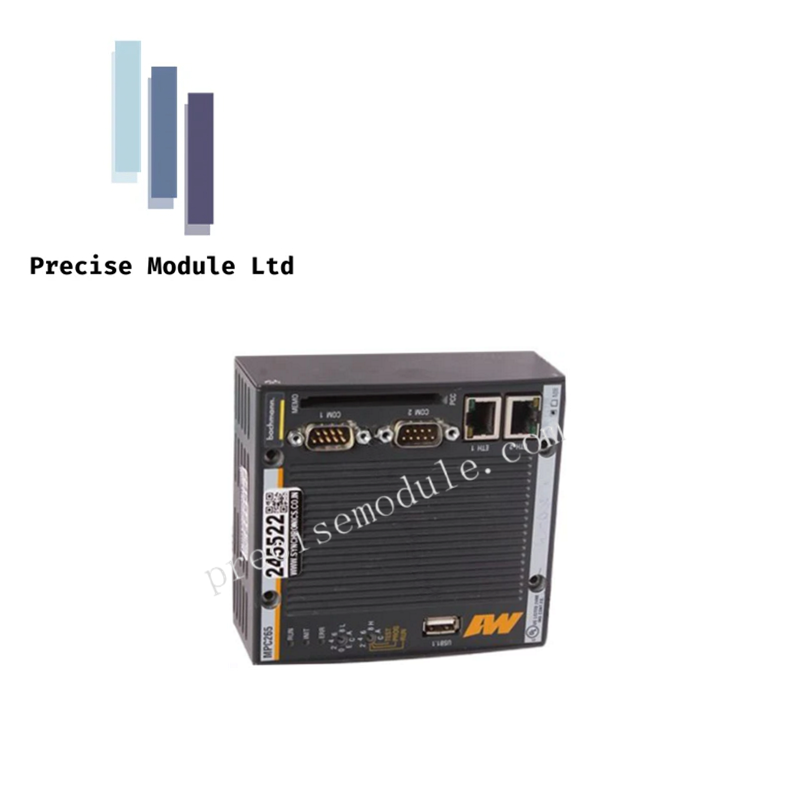

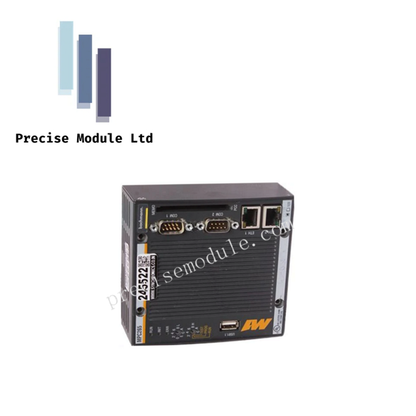

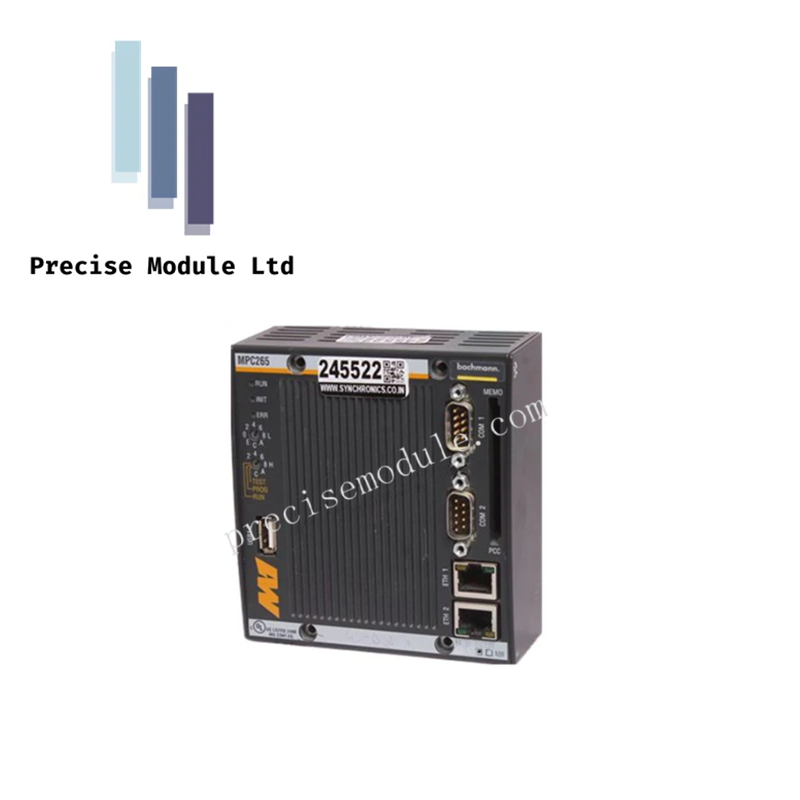

Bachmann MPC265 Processor Module

Description

The MPC265 processor module from Bachmann is a high-performance control unit designed for demanding automation tasks. It features a dual-core architecture, fast memory access, and versatile communication interfaces.

Specifications

• Manufacturer: Bachmann

• Model: MPC265

• Type: Processor Module

• CPU Architecture: Dual-core processor

• RAM: 512 MB DDR3 memory

• Flash Memory: 512 MB onboard storage

• Ethernet Ports: 2× 100 Mbit/s interfaces

• Serial Interfaces: 2× RS232/RS485 ports

• USB Ports: 1× USB 2.0 host

• Expansion Slot: CF card interface for extended storage

• Real-Time Clock: Integrated with battery backup

• Power Supply: 24 VDC nominal

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +85°C

• Humidity Range: 5% to 95%, non-condensing

• Dimensions: 55 mm × 119 mm × 70 mm

• Weight: Approx. 320 g

Features

• Dual-Core Performance: Handles complex control tasks with fast processing speed

• Reliable Memory Access: 512 MB RAM ensures smooth multitasking and data handling

• Flexible Communication: Includes Ethernet, serial, and USB interfaces for system integration

• Expandable Storage: CF card slot supports additional memory for large applications

• Real-Time Operation: Built-in clock with backup ensures time-critical task execution

• Compact Design: Fits seamlessly into Bachmann M1 automation systems

• Industrial Grade: Operates reliably in harsh environments with wide temperature tolerance

• System Compatibility: Fully supports Bachmann software and control architecture
