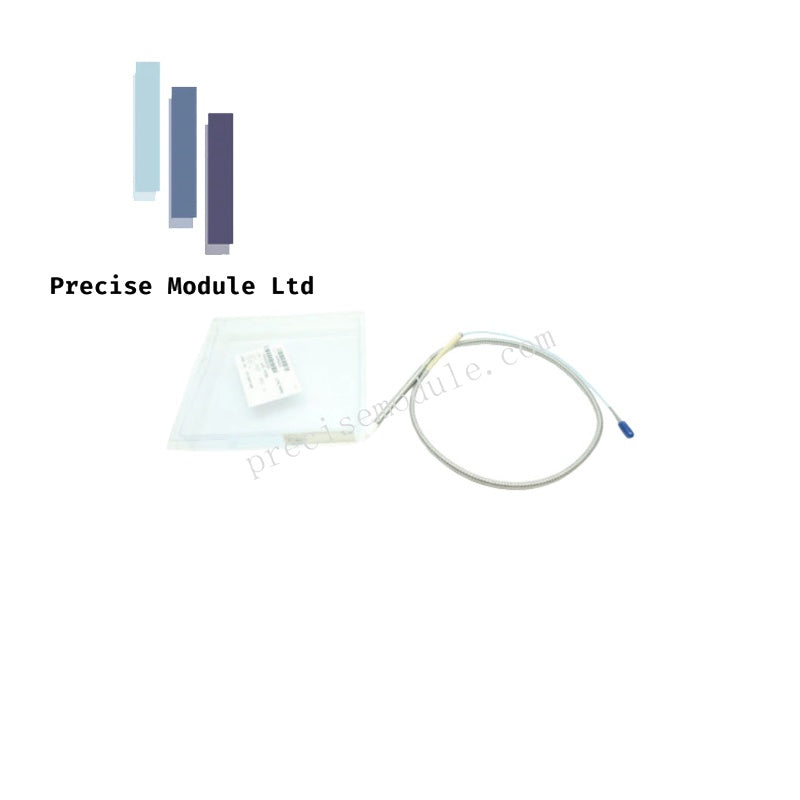

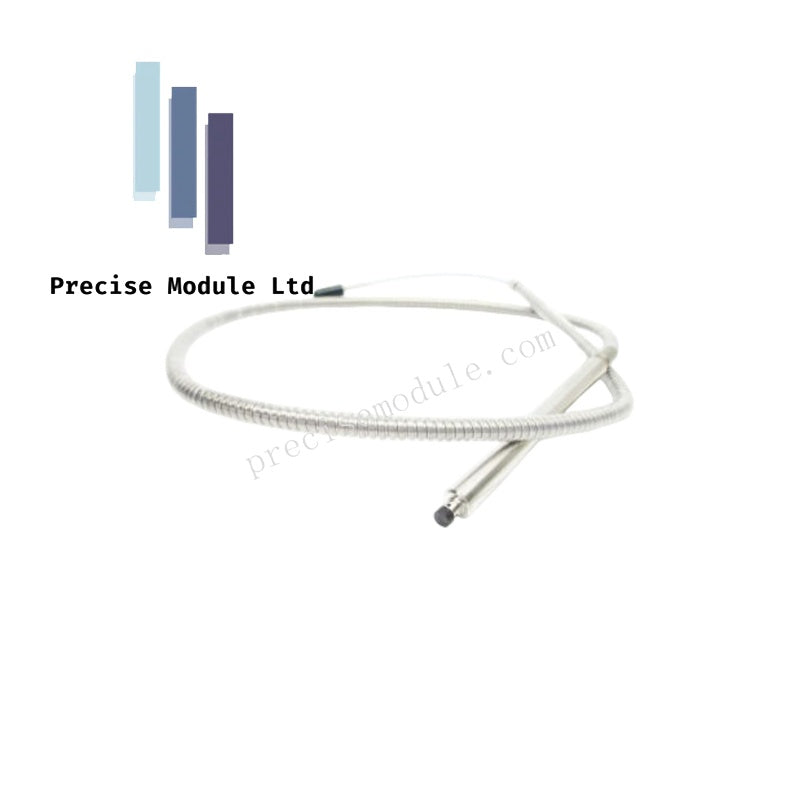

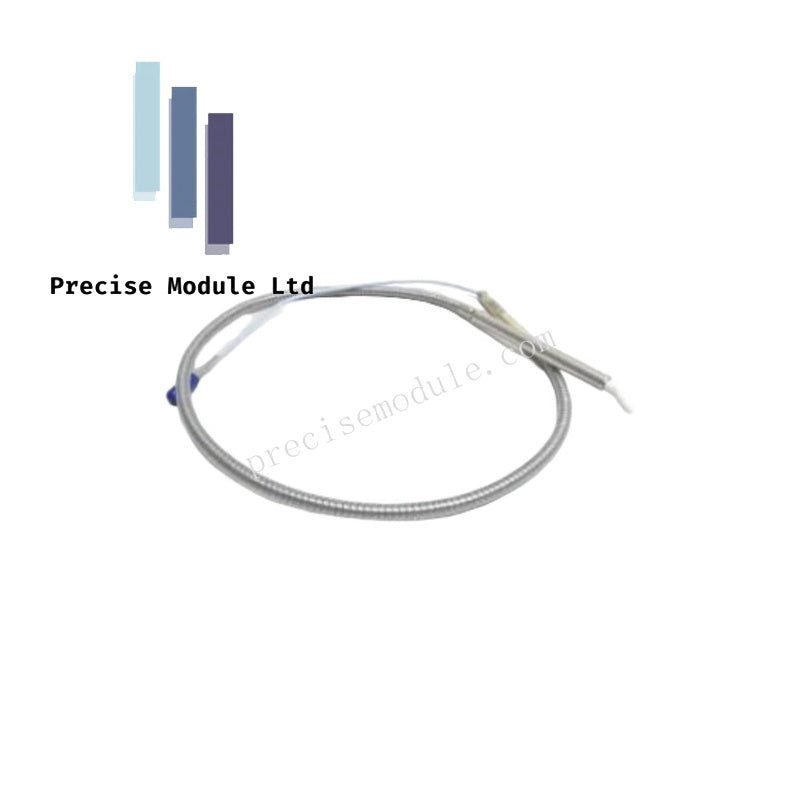

Bently Nevada 109549-01 3300 XL NSv Photoelectric Probe

Bently Nevada 109549-01 3300 XL NSv Photoelectric Probe

The Bently Nevada 109549-01, also cataloged as the 109549-01 3300 XL NSv Photoelectric Probe, operates as a dedicated hardware component for high-temperature machinery displacement and vibration measurement within rotating equipment monitoring systems. The probe provides non-contact measurement capability for hot-area applications where conventional proximity probes may not withstand operating conditions.

Hardware Specifications

Eddy-Current Probe Scaling and High Temperature Measurement

The 3300 XL NSv Photoelectric Probe is designed for high-temperature machinery monitoring where standard proximity sensors may experience thermal limitations. The system supports measurement applications including vibration, thrust position, differential expansion, radial and axial seal clearance, and rotor dynamics analysis in turbine environments. Probe sensitivity calibration and signal scaling parameters are applied according to the connected monitoring system configuration to maintain displacement measurement accuracy under elevated temperature conditions.

Frequently Asked Questions

Q: What temperature range can the 109549-01 probe operate in?
A: The standard probe tip operating range is -35 deg C to +125 deg C, with extended temperature options available up to 150 deg C or 175 deg C.

Q: What measurements can be performed using the 3300 XL NSv system?
A: The system can be configured for vibration, thrust position, differential expansion, seal clearance, and other rotating machinery displacement measurements.

Q: Is the probe designed for contact measurement?
A: No. The probe is a non-contact measurement device intended for machinery monitoring applications in high-temperature environments.

Field Installation Guidelines

• Install the probe according to the mechanical clearance requirements of the monitored machine location.
• Verify probe alignment and mounting stability before operation.
• Route probe cables away from high-temperature sources beyond the specified probe operating area.
• Protect cable routing through turbine structures from mechanical damage and excessive bending.
• Confirm probe calibration and signal scaling parameters within the connected monitoring system.
• Verify measurement response during commissioning before enabling machinery protection alarms.
