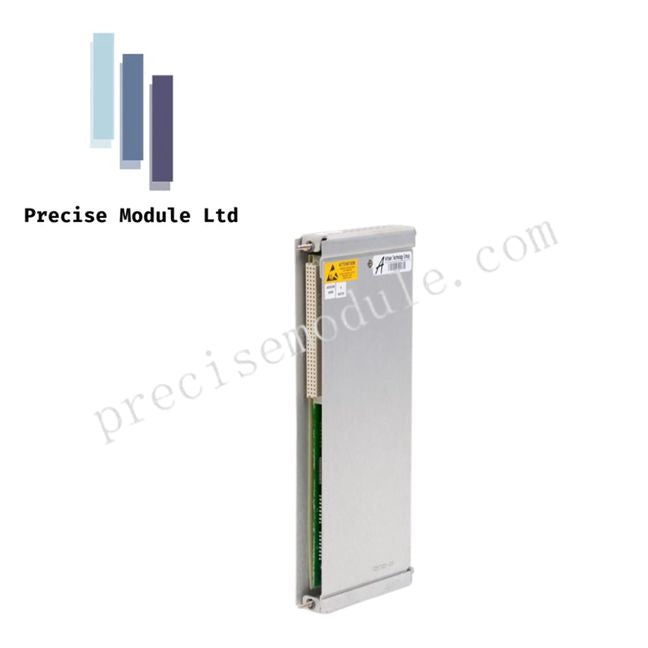

Bently Nevada 125720-01 Ethernet I/O Module | 3500/92 Gateway

Product Description

Overview

The Bently Nevada 125720-01 is a high-speed Ethernet I/O Module designed for the 3500/92 Communication Gateway, providing seamless integration of machinery protection data into plant-wide networks, DCS, and historians. This rear-mounted module enables reliable Modbus/TCP communication over 10/100 Mbps Ethernet, supporting multiple simultaneous hosts without latency or data loss.

Key Features

• High-speed 10/100 Mbps Ethernet interface via RJ45

• Supports Modbus/TCP protocol for modern industrial networking

• Galvanic isolation for backplane protection and data integrity

• Configurable Modbus register mapping for tailored data access

• Multiple simultaneous host connections supported

• Rear-mount installation directly behind the 3500/92 module

• Status LEDs for Link/Activity and Module OK

Technical Specifications

Performance Characteristics

• Real-time data from 3500 rack modules transmitted over Ethernet

• Supports simultaneous monitoring by DCS, condition monitoring software, and historians

• Galvanically isolated to protect internal rack electronics

• Easily configured via 3500 Rack Configuration Software

Comparison with 125736-01

• 125736-01: Serial (RS232/RS422) communication, ideal for legacy systems and short distances

• 125720-01: Ethernet (Modbus/TCP) communication, ideal for high-speed, modern network integration

Bently Nevada 3500/32 Series 4-Channel Relay Module

Overview

The 3500/32 4-Channel Relay Module is a full-height module providing four independent relay outputs for critical alarm and trip functions. Each output can be programmed using Alarm Drive Logic, combining AND/OR logic across multiple monitor channels to meet system-specific requirements.

Key Features

• Four independently programmable relay outputs

• Supports complex alarm logic via 3500 Rack Configuration Software

• Can be installed in any slot to the right of the Rack Interface Module

• Designed for continuous industrial operation with high reliability

Technical Specifications

Applications

Ideal for machinery protection and process safety systems, enabling precise control over alarm and trip outputs based on complex logic conditions across multiple monitored channels.
