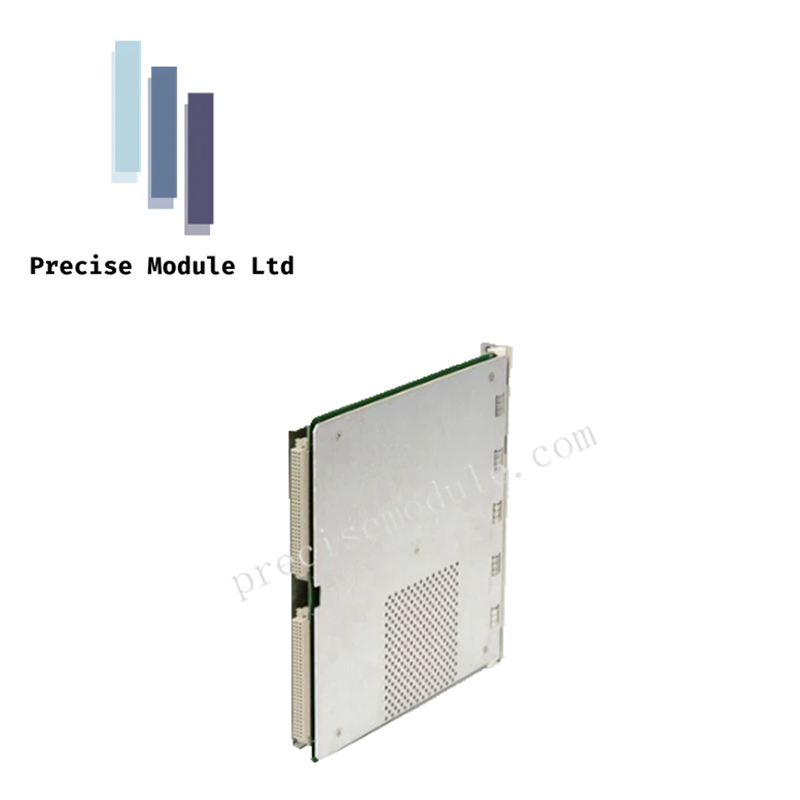

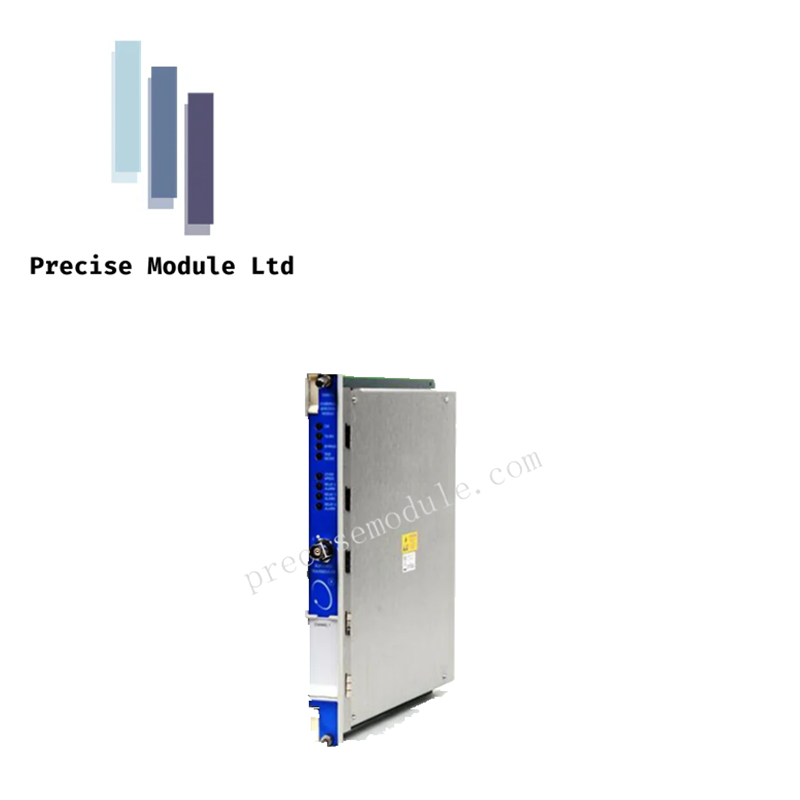

Bently Nevada 125728-01 (3500/90) Communication Gateway Module

Technical Overview

The 125728-01 (3500/90) is a high-performance Communication Gateway designed for the Bently Nevada 3500 Machinery Protection System. This module acts as the digital bridge between internal monitor data and external plant control architectures. By converting proprietary rack data into industry-standard formats, the 125728-01 (125728-01) enables operators to integrate critical vibration, position, and speed metrics directly into Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and SCADA platforms.

Detailed Technical Specifications

The following specifications define the operational parameters for the 125728-01 (125728-01) Gateway:

• Communication Protocols: Supports Modbus RTU (Serial), Modbus TCP/IP (Ethernet), and Bently Nevada proprietary protocols for high-speed data exchange.

• Redundancy Support: Dual-port configurations allow for redundant communication paths to ensure high availability for critical machinery monitoring.

• Network Interfaces: Equipped with Ethernet (10/100 Base-T) and RS-232/RS-422/RS-485 serial ports.

• Power Consumption: Optimized at 5.0 Watts (typical).

• Operating Temperature: Rated for industrial environments from -30°C to +65°C.

• Physical Dimensions: 160 mm x 160 mm x 120 mm (H x W x D).

• Net Weight: 0.8 kg.

• Mounting: Occupies one full-height slot in the Bently Nevada 3500 rack (typically adjacent to the RIM module).

Application & Integration Strategy

The 125728-01 (125728-01) is essential for facilities moving toward Condition-Based Maintenance (CBM). It provides the raw data necessary for System 1 software integration while simultaneously feeding status registers to the plant's HMI. Its ability to handle high-density data packets without interrupting the primary protection functions of the 3500 rack makes it a cornerstone for modern machinery diagnostics.
