Bently Nevada 125744-01 Rack Interface Module

Bently Nevada 125744-01 Rack Interface Module

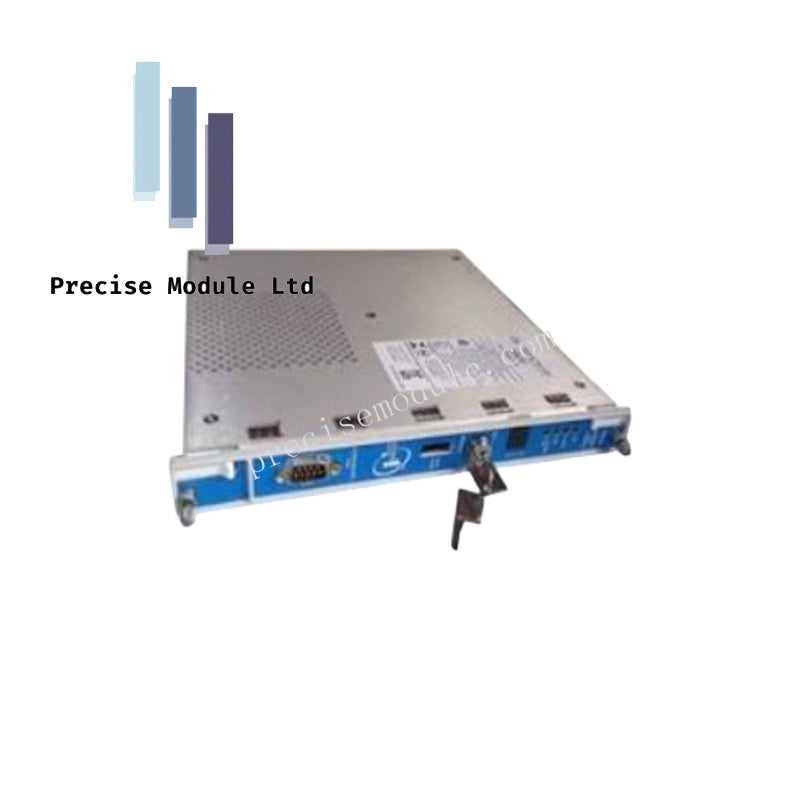

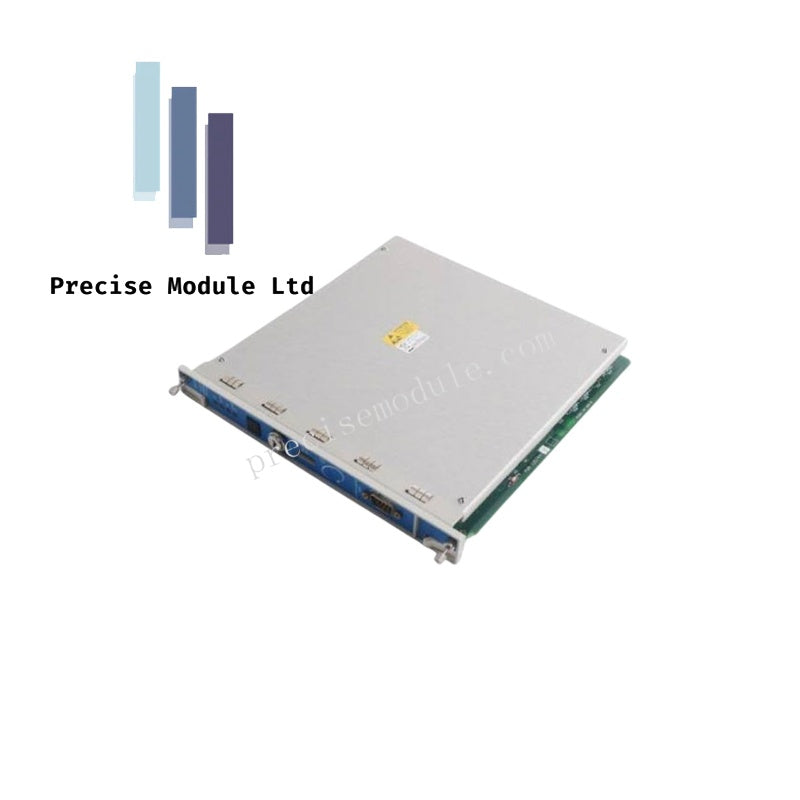

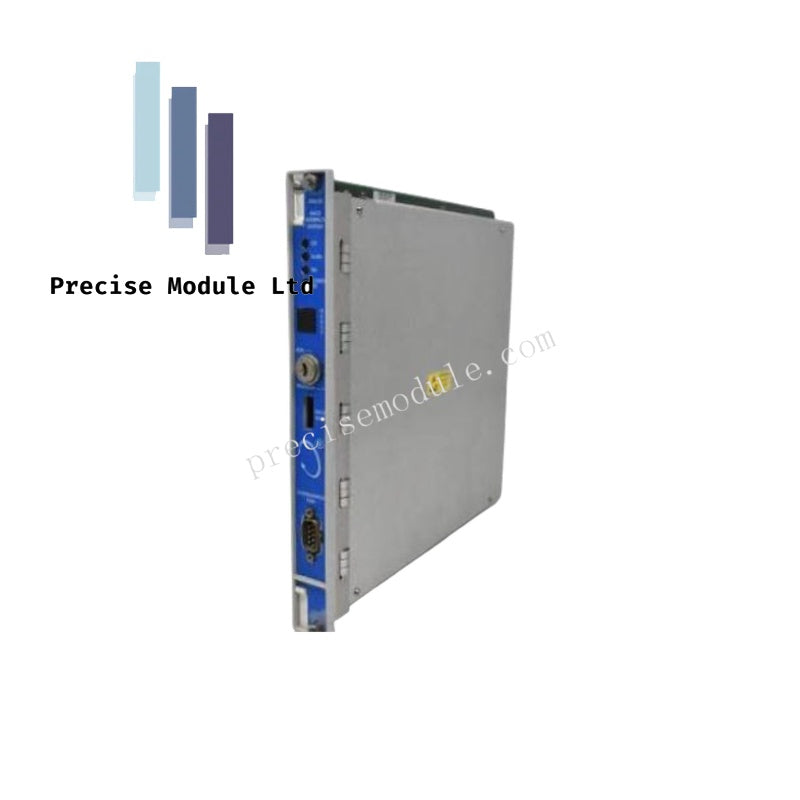

The Bently Nevada 125744-01, also cataloged as the 125744 Rack Interface Module (RIM), operates as a dedicated hardware component for rack communication management and diagnostic data retrieval within 3500 series monitoring platforms.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 125744-01 serves as the primary gateway for the 3500 rack, supporting proprietary protocols required for rack configuration and machinery data export. While the RIM facilitates communication with external processors like TDXnet, TDIX, and DDIX, it remains outside the critical monitoring path, ensuring that any communication fault does not compromise the protective function of the installed transducer channels. In advanced Triple Modular Redundant (TMR) architectures, the module executes high-speed monitor channel comparison and 2oo3 voting logic. By verifying signal alignment across redundant monitors, the RIM ensures that deviation beyond configured thresholds triggers automatic event logging in the System Event List, maintaining the integrity of the TSI data stream.

Frequently Asked Questions

Q: Is the 125744-01 capable of TMR monitor voting?

A: This specific module is the standard RIM; TMR applications require the dedicated TMR version of the Rack Interface Module to perform monitor channel comparison and voting.

Q: Can the RIM be removed while the 3500 rack is powered on?

A: The RIM is designed for hot-swapping; however, its removal will interrupt all communication between the rack and external diagnostic software until the module is replaced and the handshake is restored.

Field Installation Guidelines

1. Placement: The RIM must be installed exclusively in Slot 1 of the 3500 rack, immediately adjacent to the power supplies. Ensure the backplane connectors are fully engaged.

2. Communication: Verify the physical connection to the external data acquisition processor. Ensure that communication cables are properly shielded to prevent data packet corruption.

3. Configuration: Use the 3500 Rack Configuration Software to establish the communication parameters for the RIM after physical installation.

4. Status Check: Observe the module's front-panel status LEDs. A healthy state is indicated by the steady operation of the "OK" and "TX/RX" indicators, confirming proper bus communication velocity and protocol handshake.
