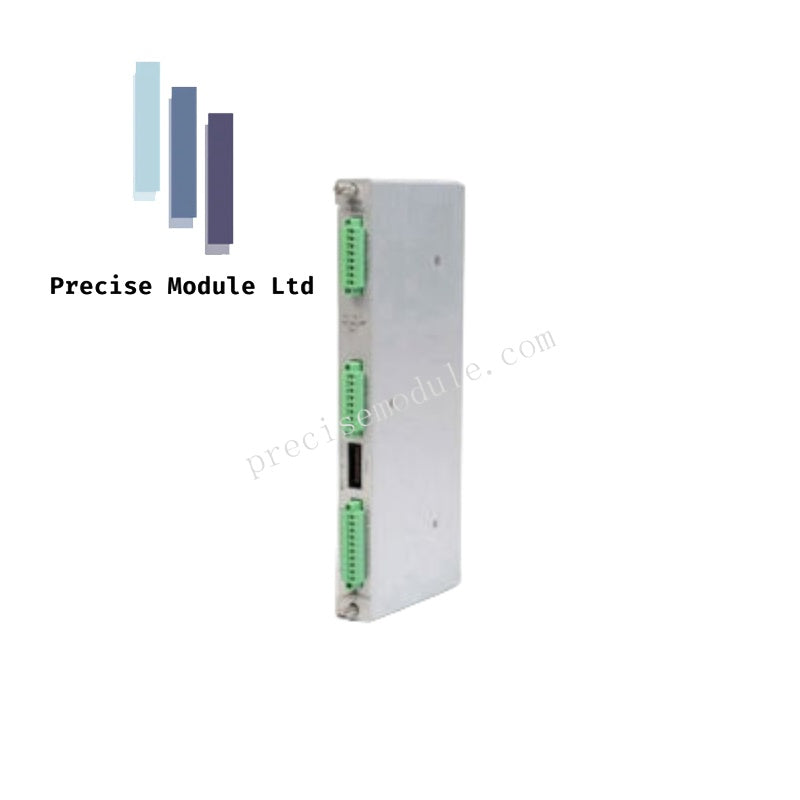

The Bently Nevada 125769-01, also cataloged as the 125769-01 3500/22M Transient Data Interface Module, operates as a dedicated hardware component for machinery monitoring data acquisition and communication transfer within the Bently Nevada 3500 Machinery Protection System. The module collects dynamic and static data from installed monitoring modules and transfers processed information to host monitoring software.

Hardware Specifications

Rotor Dynamics Data Interface and Communication Processing

The 3500/22M Transient Data Interface Module provides data acquisition and communication functions within the 3500 Machinery Protection System. The module collects dynamic and static measurement data from compatible 3500 monitoring modules and transfers monitoring information to host software platforms.

The 125769-01 supports machinery condition monitoring workflows by providing access to transient and steady-state measurement data for analysis applications. The module interfaces with Bently Nevada System 1 Condition Monitoring Software for data processing, trending, and diagnostic evaluation.

The TDI architecture supports continuous monitoring data transfer from the 3500 rack while maintaining integration with installed monitoring modules and rack communication structures.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the 125769-01 3500/22M module?
A: The module collects dynamic and static monitoring data from 3500 monitoring modules and transfers the information to host software through communication interfaces.

Q: Where is the 3500/22M TDI installed?
A: The module is installed in a dedicated full-height slot within the Bently Nevada 3500 rack assembly.

Q: Which monitoring software is compatible with this module?
A: The 125769-01 is compatible with Bently Nevada System 1 Condition Monitoring Software when installed within a supported 3500 Machinery Protection System configuration.

Field Installation Guidelines

Install the 125769-01 module into the assigned full-height slot position within the 3500 rack. Confirm that the module is fully seated and the rack backplane connection is properly engaged before applying system power.

Route communication and signal-related wiring separately from high-current power conductors to reduce electromagnetic interference. Maintain proper cable shielding and grounding practices according to the rack installation requirements.

After installation, verify rack recognition, communication interface status, and data acquisition operation through the configured host software. Confirm that connected monitoring modules are providing valid dynamic and static measurement data before enabling operational monitoring.
