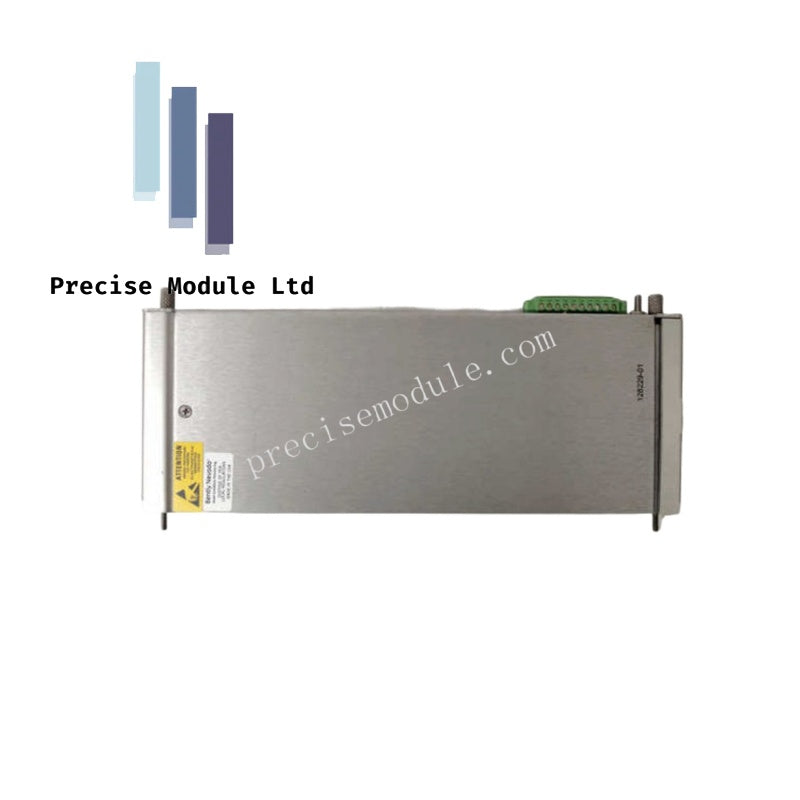

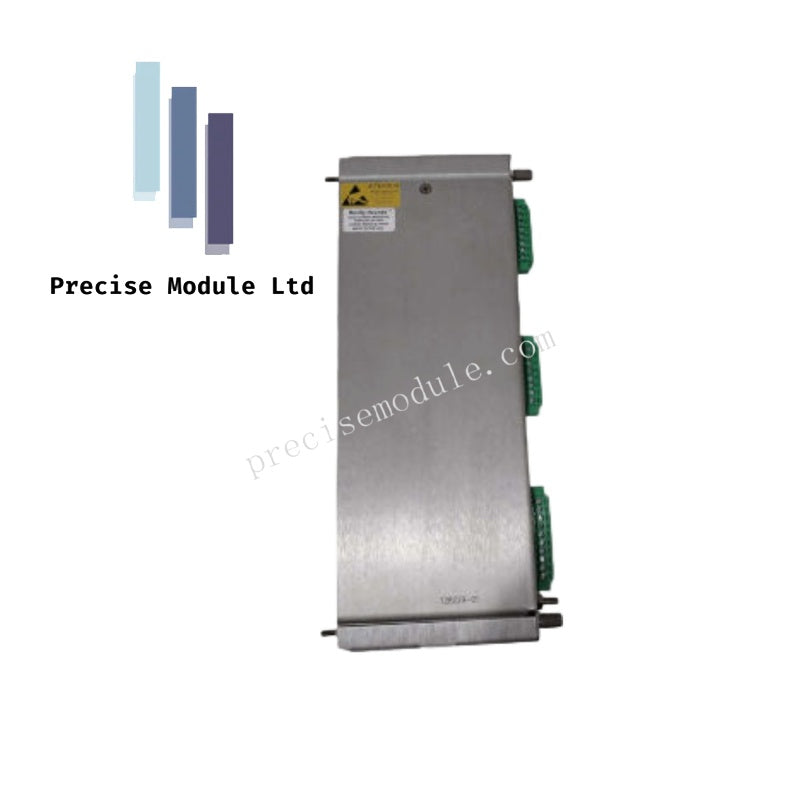

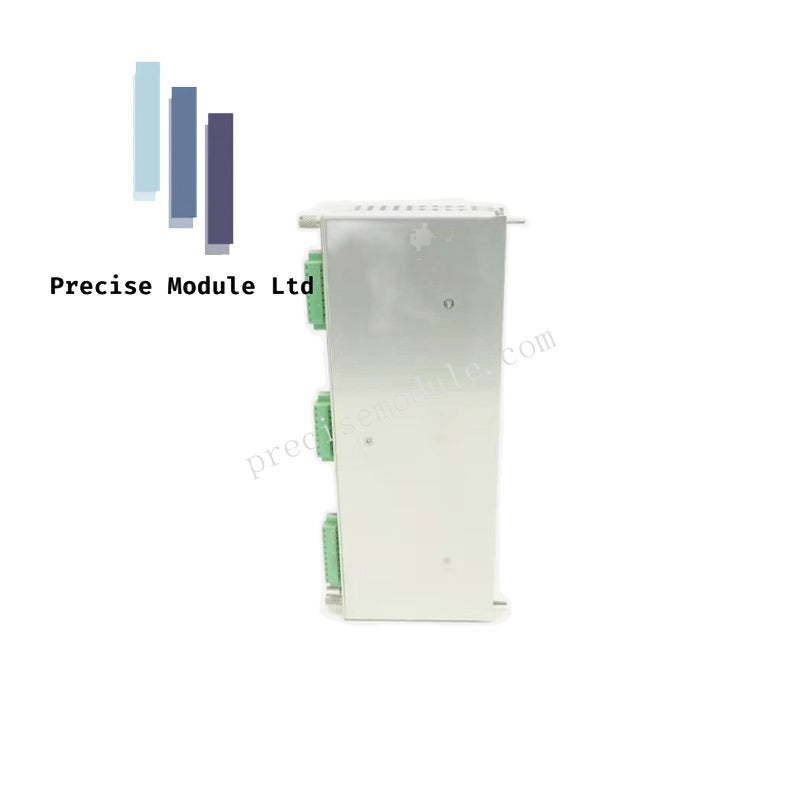

Configured for specific technical tasks in machinery monitoring infrastructure networks, the Bently Nevada 128229-01 (3500/42M Proximity/Seismic Monitor Module) provides direct physical/electrical execution. It functions as a four-channel monitoring component that accepts input from proximity and seismic transducers to perform continuous vibration and position measurements.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The four-channel module processes dynamic industrial metrics using internal eddy-current probe scaling to monitor critical rotor dynamics profiles. Channel pairs condition raw sensor waveforms into discrete static variables, including radial vibration, thrust position, acceleration, and differential expansion. Internal cross-talk suppression protocols prevent signal overlapping across adjacent channels during high-frequency tracking. The card drives continuous loop diagnostics to support gap voltage validation routines, checking sensor baseline responses against standard -10 VDC baseline settings within the active linear measurement domain.

Frequently Asked Questions

Q: How are the channels configured on the 3500/42M monitoring module?

A: The channels are programmed in pairs using the 3500 Rack Configuration Software, allowing channels 1 and 2 to execute one function while channels 3 and 4 execute the same or a completely different monitoring function.

Q: What alarm thresholds can be set for the monitored static values?

A: You can configure alert setpoints for each active static value generated by the channel conditioning, and danger setpoints for up to any two of those active static values.

Field Installation Guidelines

• Chassis Slot Alignment: Slide the full-height 128229-01 module into the front rack slot until it completely engages with the backplane connector, then tighten the integrated front panel screws.
• Transducer Pairing Parameters: Wire and configure field transducer circuits strictly in channel pairs (1/2 and 3/4) via the configuration utility to ensure proper software signal processing.
• Shield Grounding Topologies: Terminate probe extension cable shields at the designated chassis grounding busbar to isolate the low-voltage sensor lines from high-frequency electromagnetic interference.
• Conduit Routing Isolation: Route all seismic and proximity sensor field leads through separate, dedicated metal conduits to eliminate cross-talk from nearby power distribution cables.
