Bently Nevada 131151-01 Half-Height Future Expansion Faceplate

Bently Nevada 131151-01 Half-Height Future Expansion Faceplate

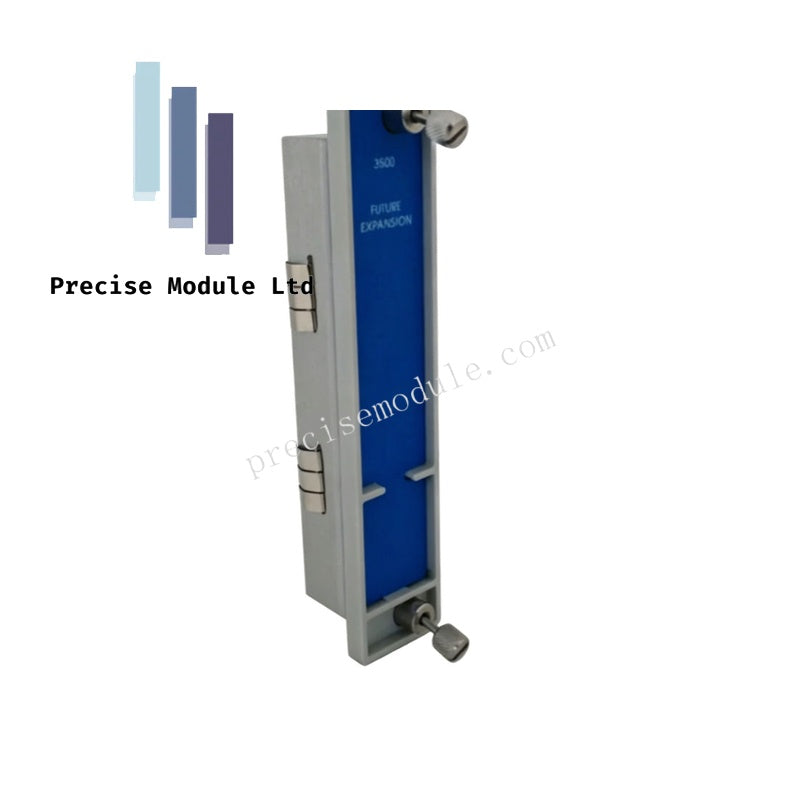

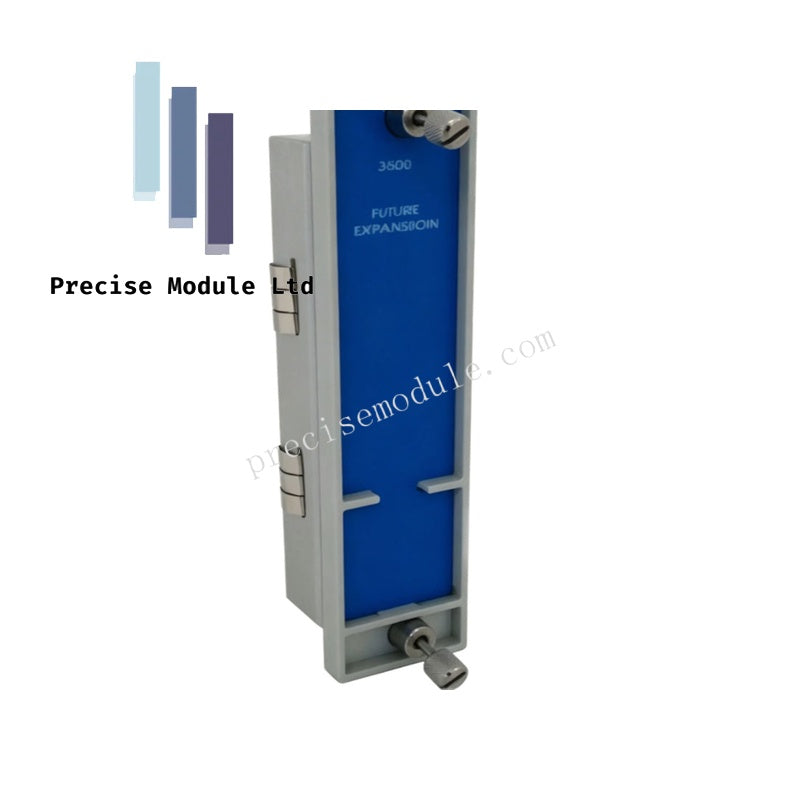

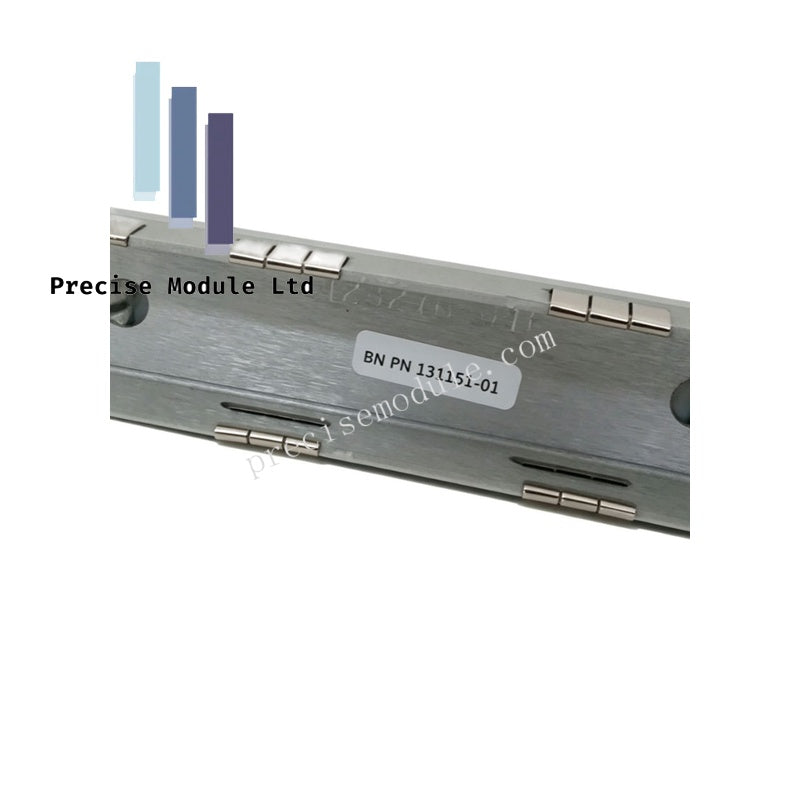

The Bently Nevada 131151-01, also cataloged as the 128276-01E Half-Height Future Expansion Faceplate, operates as a dedicated hardware component for chassis slot protection within Bently Nevada 3500 System rack platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The half-height expansion faceplate provides physical sealing for unassigned slots within the machinery monitoring enclosure. By securing empty chassis positions, the hardware maintains the internal structural integrity required for precise proximity system operations. This mechanical boundary isolates active channels from ambient thermal disturbances, ensuring that eddy-current probe scaling coefficients remain stable across nearby modules. The metallic shield prevents external electromagnetic fields from introducing noise into rotor dynamics monitoring loops, thereby protecting gap voltage validation routines and supporting continuous cross-talk suppression.

Frequently Asked Questions

Q: What is the power consumption and electrical draw of the 131151-01 panel?

A: The 131151-01 is a passive mechanical faceplate and carries a power consumption rating of 0 W.

Q: In which rack sizes and formats can this expansion faceplate be applied?

A: The plate can be deployed in any standard 3500 full-size 14-slot rack or 7-slot mini-rack configuration, including panel mount, rack mount, and bulkhead mount chassis formats.

Field Installation Guidelines

• Chassis Slot Alignment: Position the half-height plate over the unused upper or lower segment of the designated front chassis slot, ensuring correct alignment with the rack frame guide rails.
• Retention Screw Fastening: Secure the upper and lower integrated retention screws into the rack bezel threads to prevent vibration-induced loosening within heavy industrial machinery environments.
• Cooling and Airflow Maintenance: Install expansion faceplates over all unoccupied front rack spaces to maintain the engineered internal cooling airflow paths driven by the power supply modules.
• Grounding Plane Continuity: Ensure the metallic back surface of the faceplate makes direct contact with the conductive chassis frame to preserve the overall electrostatic shielding barrier of the monitoring rack.
