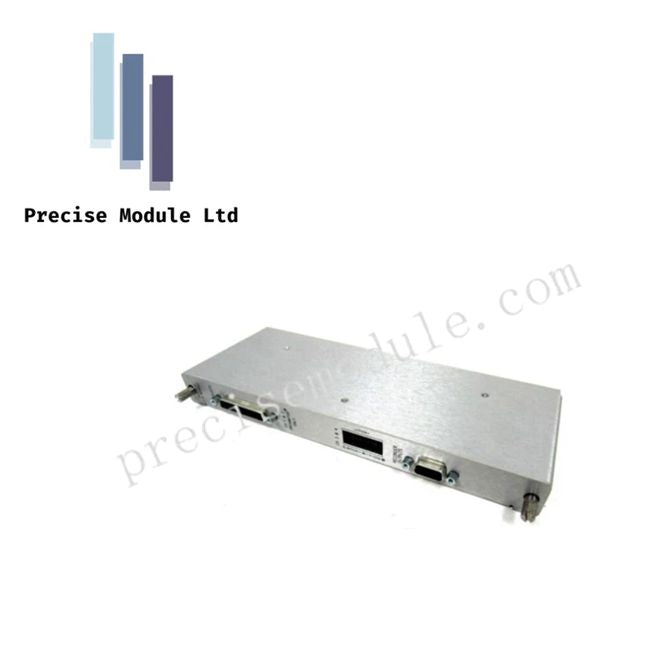

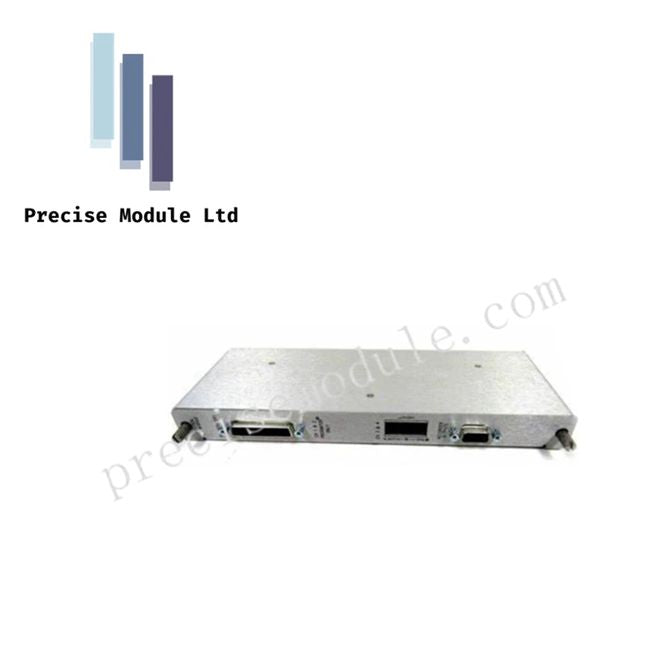

Bently Nevada 133323-01 3500/92 Modbus RS485 I/O Communication Module

Product Description

Overview

The Bently Nevada 133323-01 is a Modbus RS485 I/O module engineered for the 3500/92 Communication Gateway, providing a reliable bridge between the 3500 rack and external control systems. Installed at the rear of the rack, it offers both serial RS485 and Ethernet ports to export monitored data to PLCs, SCADA systems, or DCS platforms in real time.

This module converts vibration readings, alarm states, and system health data into standard industrial protocols, allowing operators to access key machinery information directly from the control room HMI without opening proprietary Bently software.

Key Features

Dual-Protocol Communication

• Supports Modbus RTU over RS485 and Modbus/TCP over Ethernet simultaneously

• Configurable serial speeds: 9600, 19200, 38400, up to 115200 baud

• RJ45 port supports 10BASE-T/100BASE-TX for high-speed Ethernet integration

High-Speed Data Processing

• Interfaces with the 3500 rack backplane to provide data updates in under 1 second

• Configurable Modbus register mapping allows precise assignment of vibration or health parameters to specific addresses for DCS integration

Industrial Reliability

• Electrical isolation protects the rack and connected devices from surges and ground loops

• Rated for operating temperatures from -30°C to +65°C, suitable for mounting near heavy machinery

• Robust design ensures stable performance in harsh industrial environments

Technical Specifications

Applications

• Real-time machinery monitoring in power plants, oil and gas facilities, and water treatment systems

• Exporting vibration, speed, and condition data to PLCs, DCS, or SCADA

• Industrial environments requiring reliable RS485 multi-drop networking

FAQ

Q: What is the difference between 133323-01 and 125734-01?
A: The 133323-01 uses RS485 for multi-drop communication and Modbus RTU/TCP, ideal for daisy-chaining multiple racks. The 125734-01 uses RS232/RS422, suitable for single-point connections.

Q: Can I configure which rack parameters are exported?
A: Yes, a Modbus register mapping utility allows precise assignment of monitored values and alarms to specific Modbus addresses.

Q: Is this module suitable for harsh industrial environments?
A: Absolutely. It is electrically isolated, operates from -40°C to +85°C, and complies with CE, RoHS, and industrial EMC standards.
