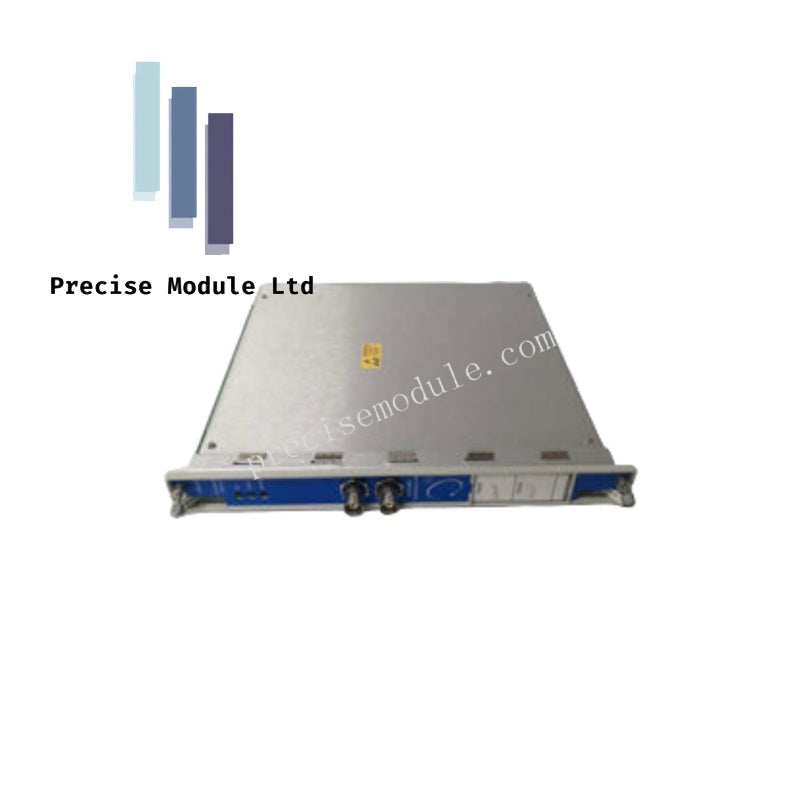

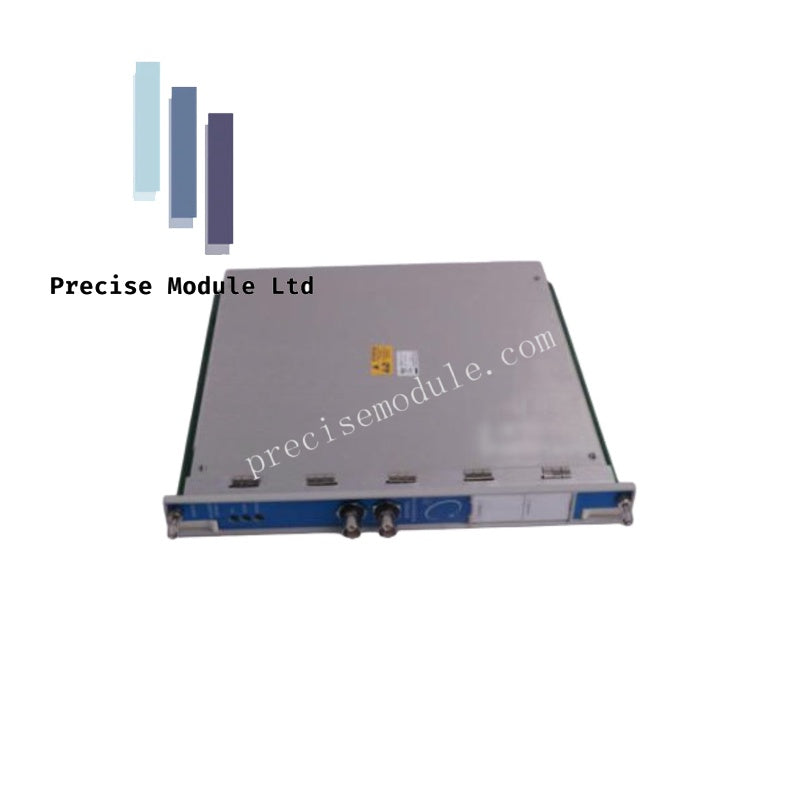

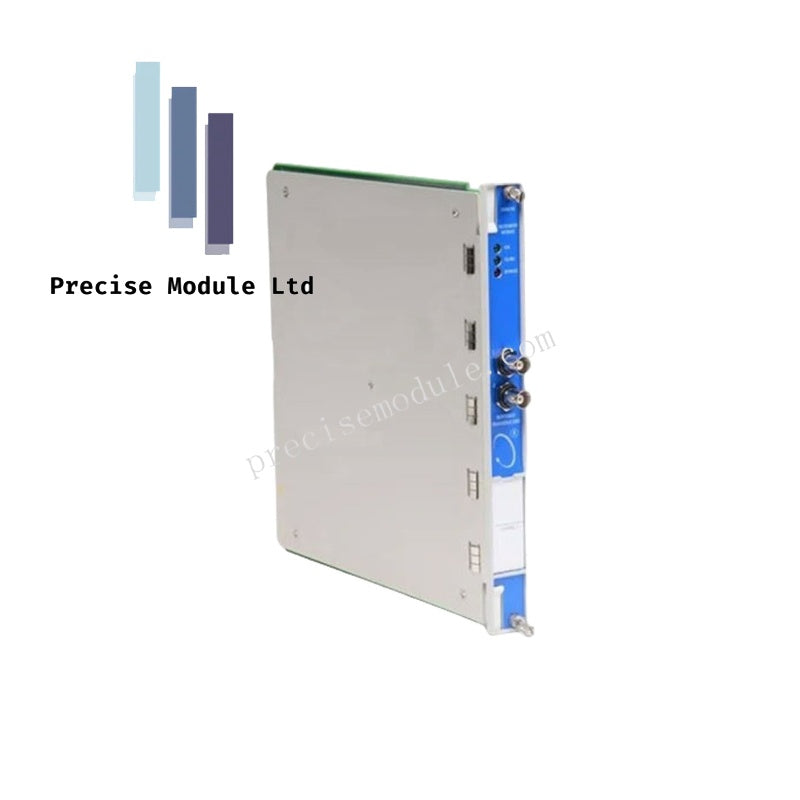

Bently Nevada 133388-02 3500/50 Tachometer Module

Bently Nevada 133388-02 3500/50 Tachometer Module

The Bently Nevada 133388-02 serves as the primary 3500/50 Tachometer Module utilized to execute shaft rotative speed, rotor acceleration, and rotor direction determination across 3500 Machinery Protection System platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module processes raw voltage transitions from proximity transducers or magnetic pickups to evaluate instantaneous rotor dynamics. When interfacing with proximity probes, verification of the gap voltage scaling targeting -10 VDC is required to guarantee the transducer operates within its linear calibration range. The conditioning circuitry integrates active cross-talk suppression between the two independent channels to eliminate phase measurement errors or false speed pulses generated by adjacent sensor cabling. The high-speed logic backplane extracts speed bands, acceleration patterns, and reverse rotation indications synchronously, updating the rack monitoring registers within defined processing intervals.

Frequently Asked Questions

Q: What programming software is required to configure the speed band options on the 133388-02?

A: Configuration of all four operating modes—including speed monitoring, speed band alarming, zero speed notification, and reverse rotation—is managed exclusively through the 3500 Rack Configuration Software.

Q: Can this specific module interface with all standard speed sensor types?

A: The module accepts inputs from standard proximity probes and magnetic pickups, except for specific restricted transducer models outlined in the official hardware exclusions list.

Field Installation Guidelines

• Shield Integrity and Grounding: Transducer instrumentation cable shields must be isolated at the sensor end and terminated strictly to the 3500 rack chassis ground bar. Dual-point grounding must be avoided to prevent ground loops from injecting high-frequency electrical noise into the speed pulse detection circuitry.
• Conduit Segregation: All input signal paths for proximity or magnetic pickups must be run in dedicated low-voltage instrument conduits. Do not route these lines adjacent to or within the same trays as AC power lines or switching motor control cables.
• Terminal Screw Torque: Ensure all rear-panel terminal blocks are torqued down securely to factory tightening tolerances to maintain structural connection stability in high-vibration industrial environments.
