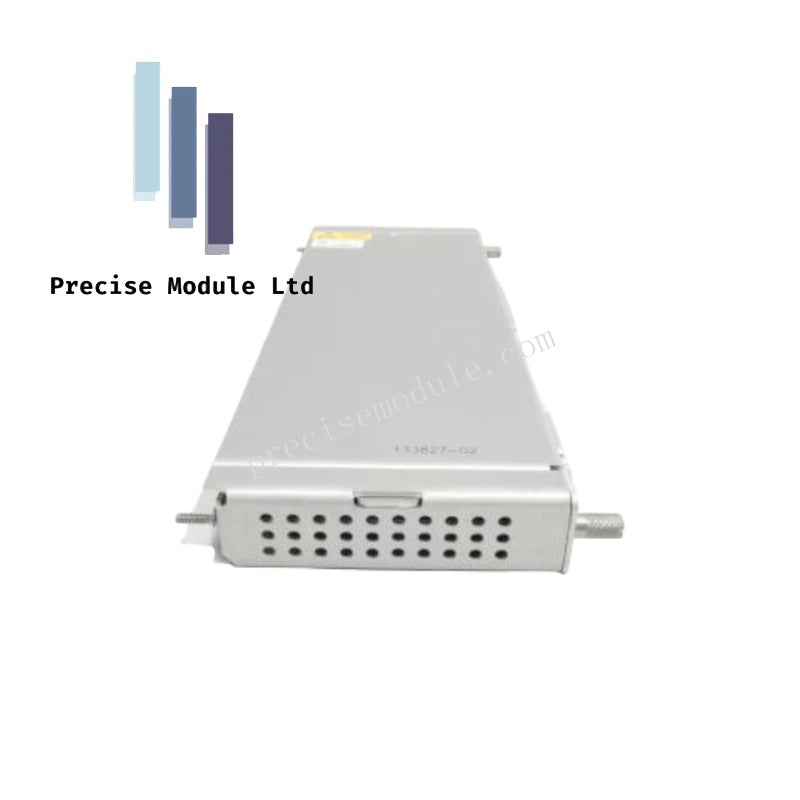

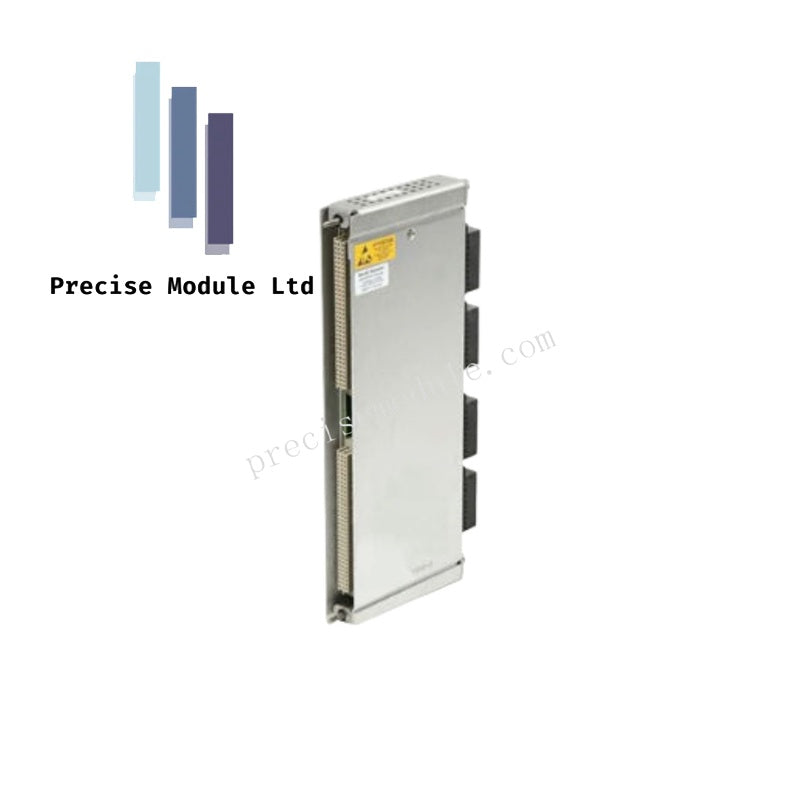

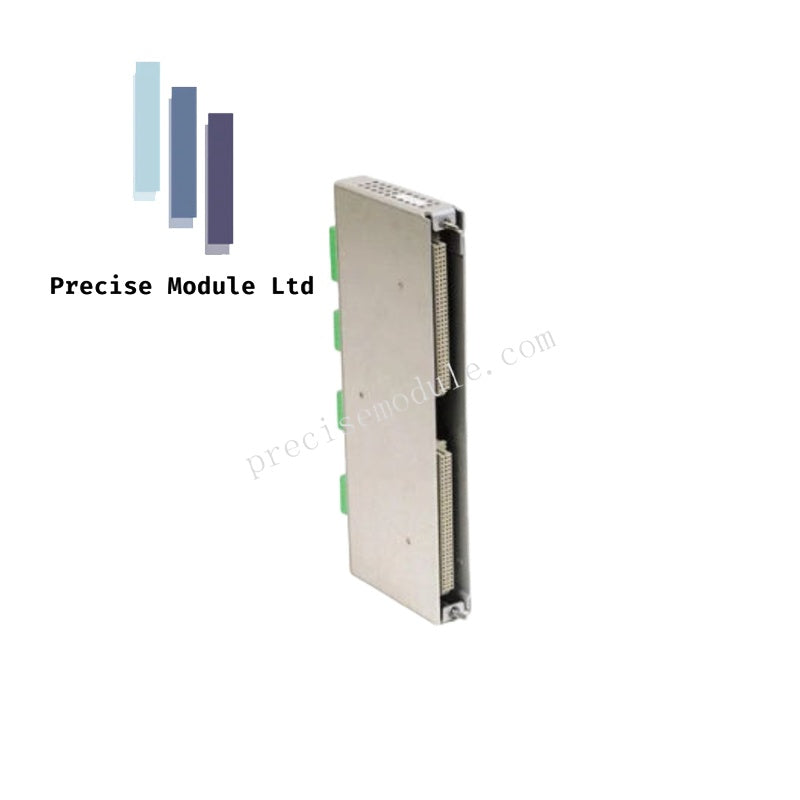

Bently Nevada 133827-02 I/O Module

Bently Nevada 133827-02 I/O Module

The Bently Nevada 133827-02, also cataloged as the 133827-02 I/O Module, operates as a dedicated hardware component for multi-channel temperature signal termination and isolation within 3500 Rack platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The 133827-02 I/O module is engineered to provide robust signal conditioning for critical Temperature Supervisory Instrumentation (TSI). The module features advanced galvanic isolation, specifically providing 250 Vdc of channel-to-channel isolation, which is critical for suppressing common-mode noise and preventing cross-talk in complex machinery environments. When utilized in Triple Modular Redundant (TMR) configurations, this module facilitates the necessary voting logic to eliminate single-point failures in temperature acquisition loops. Technicians must ensure that cold junction compensation (CJC) is correctly configured within the 3500 Rack Configuration Software when utilizing thermocouple inputs to maintain measurement accuracy across the specified operating temperature range.

Frequently Asked Questions

Q: Is the 133827-02 compatible with both RTD and Thermocouple inputs?

A: Yes, this I/O module supports both RTD and Thermocouple inputs. Configuration is performed via the 3500 Rack Configuration Software, allowing for flexible setup based on the specific sensor type installed in the field.

Q: How does the isolated version protect the 3500 system?

A: The 133827-02 provides 250 Vdc of channel-to-channel isolation. This physical separation prevents high-voltage external interference or ground loops from propagating between sensor channels or into the 3500 backplane.

Field Installation Guidelines

1. Mounting Placement: For TMR applications, the primary monitors and associated I/O modules must be installed in adjacent rack slots. Ensure all three modules are grouped together to facilitate correct voting logic.

2. Wiring Terminations: Use shielded, twisted-pair cabling for all RTD and thermocouple runs. Terminate shields at the I/O module bulkhead using the provided grounding bars to ensure high-frequency noise rejection.

3. Sensor Calibration: If using thermocouples, ensure the specific thermocouple type (e.g., K, J, E, T) is correctly selected in the configuration software. Mismatched sensor types will lead to significant temperature measurement errors.

4. Mechanical Seating: Ensure the rear-panel connectors are fully aligned with the rack backplane before securing the locking levers. Improper seating can result in intermittent input signals or module communication faults.
