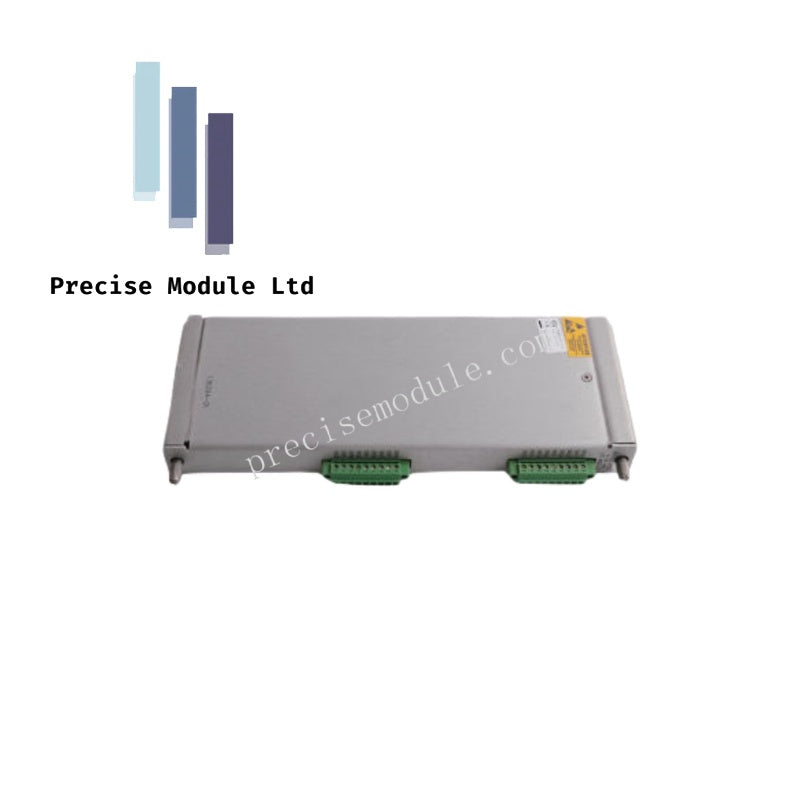

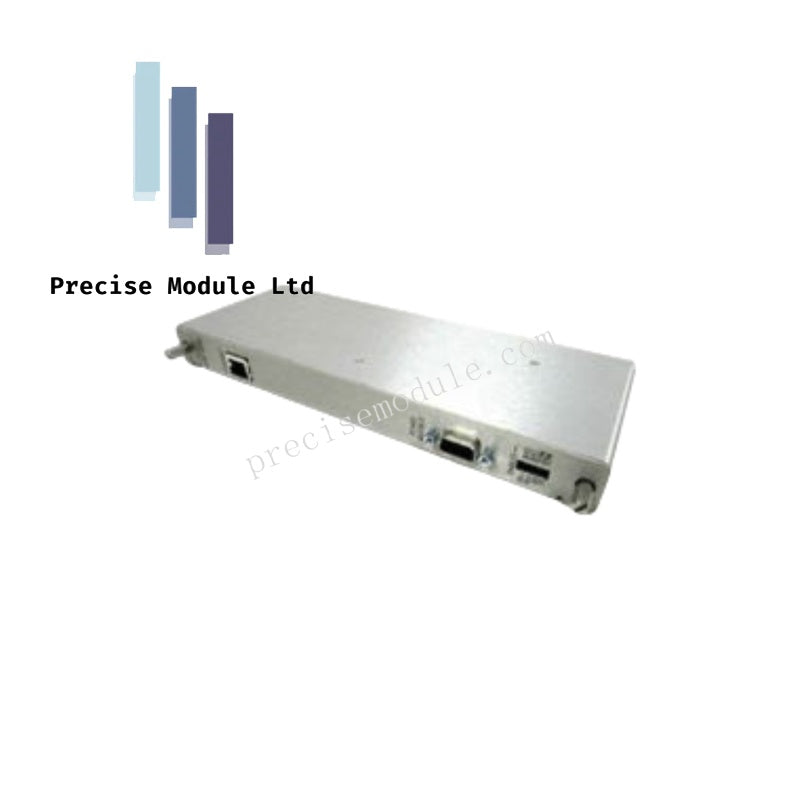

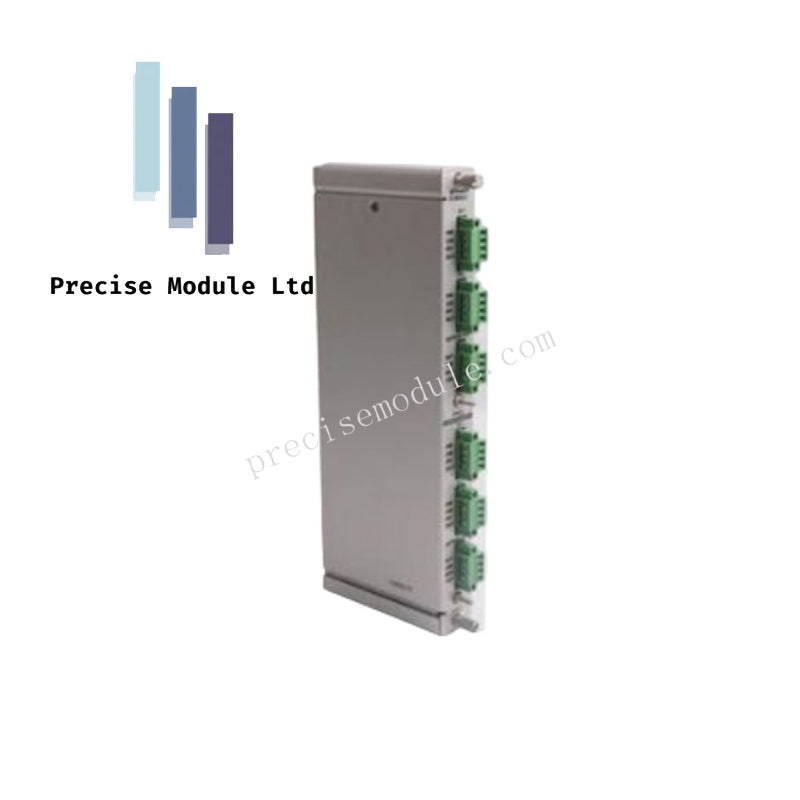

Bently Nevada 136294-01 3500/62 Process Variable Monitor

Bently Nevada 136294-01 3500/62 Process Variable Monitor

The Bently Nevada 136294-01, also cataloged as the 3500/62 Process Variable Monitor, operates as a dedicated hardware component for processing machine critical parameters within the 3500 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The module processes auxiliary loop variables that supplement static position and rotor dynamics telemetry. While proximity probes evaluate shaft behavior via dedicated gap voltage validation matching -10 VDC targets, the 136294-01 integrates secondary process parameters such as oil pressure, flow rates, and bearing temperatures into the rack protection logic. High-speed signal conditioning circuits provide cross-talk suppression between adjacent current loops and voltage inputs. When configured in a Triple Modular Redundant (TMR) architecture, the hardware utilizes two distinct voting modes across three adjacent modules to execute protection loops and eliminate single-point failure vectors.

Frequently Asked Questions

Q: What input signal ranges are supported by the channels on the 136294-01?

A: The monitor accepts standard +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc based on the configuration defined in software.

Q: How must the modules be physically oriented within the rack when utilized in a TMR configuration?

A: For Triple Modular Redundant configurations, the Process Variable Monitors must be installed directly adjacent to each other in dedicated groups of three within the 3500 rack.

Field Installation Guidelines

• Signal Shield Separation: Terminate all transmitter field shields at the designated rack ground bus bar. Ensure instrumentation cables are separate from primary power lines to maintain signal fidelity across the +4 to +20 mA loops.
• External Power Allocation for Barriers: When utilizing the Internal Barrier I/O block, ensure external power supplies are wired correctly to the external terminals to supply power to the field transducers safely.
• Wiring Bend Clearances: Maintain defined minimum bend clearances within the rear panel wiring trays to avoid mechanical stress on the 6-channel termination blocks.
