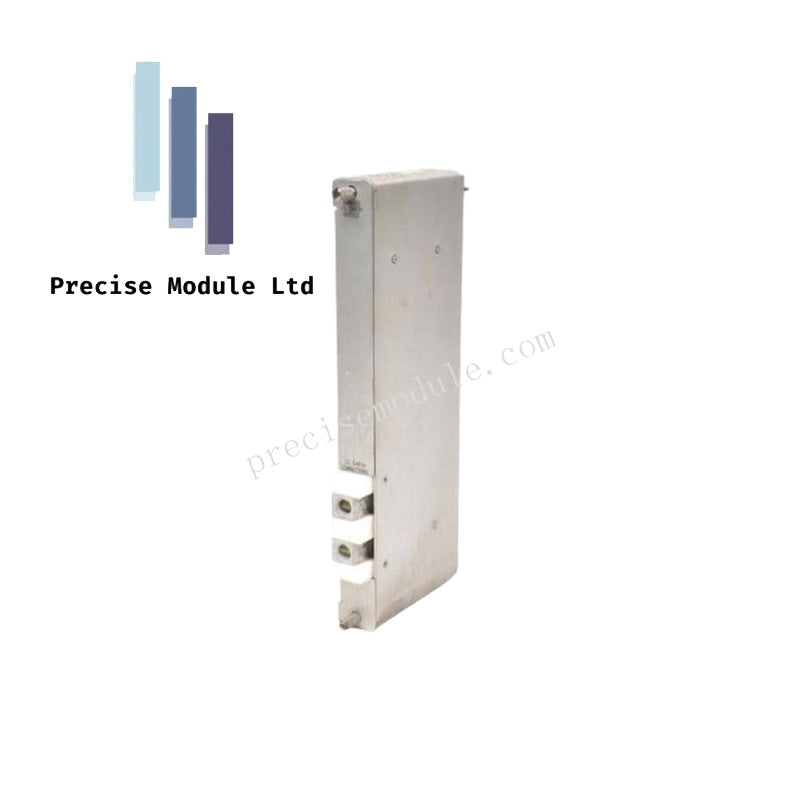

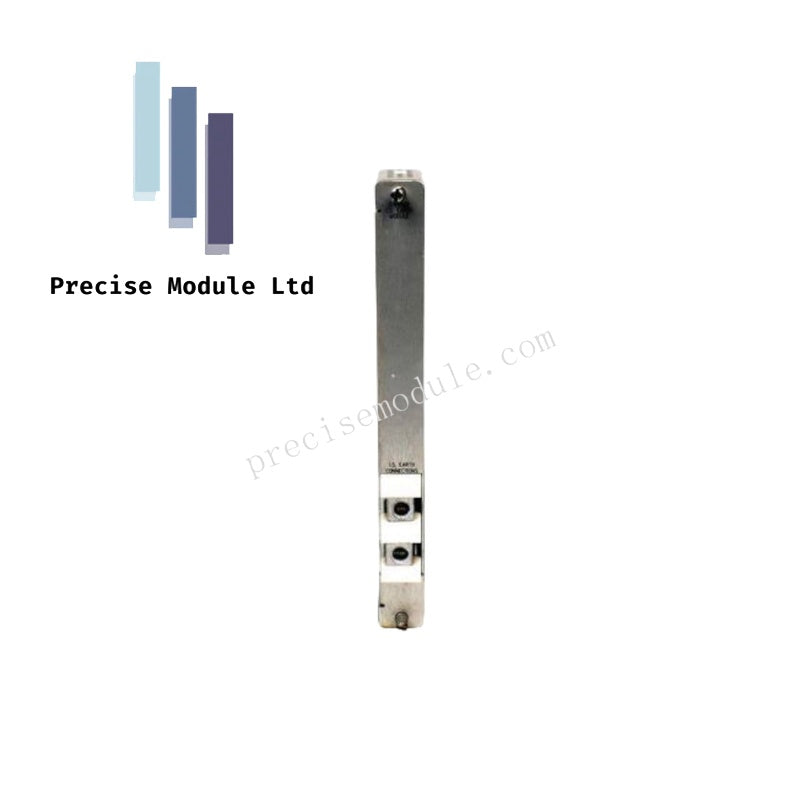

Bently Nevada 136719-01 Earthing Module

Bently Nevada 136719-01 Earthing Module

The Bently Nevada 136719-01, also cataloged as the 136719 Earthing Module, operates as a dedicated hardware component for hazardous area signal path grounding within 3500 Machinery Protection System platforms.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The Bently Nevada 136719-01 provides essential grounding paths for intrinsically safe transducer interfaces, ensuring the integrity of eddy-current probe signals in hazardous environments. By maintaining a controlled reference point for the 3500 system, the module facilitates accurate rotor dynamics monitoring while mitigating electrical hazards. The unit is engineered to support wide-band signal fidelity, minimizing phase shift and amplitude distortion, which is critical when analyzing high-frequency transients and vibration data from fluid-film bearing machines. Proper utilization of this module ensures that common-mode noise is shunted effectively, protecting downstream processing circuitry.

Frequently Asked Questions

Q: Is this module compatible with all 3500 series rack configurations?

A: Yes, the 136719-01 is specifically designed for integration with the 3500 Machinery Protection System to provide intrinsically safe signal isolation.

Q: Does the earthing module require periodic bench calibration?

A: No, the module acts as a passive safety and grounding interface. Routine inspection should focus on terminal integrity and the continuity of the protective earth connection.

Field Installation Guidelines

• Grounding Continuity: Secure the module to the designated system common ground to ensure effective fault current diversion and prevent potential-to-ground disparities.
• Intrinsically Safe Wiring: Maintain strict separation between intrinsically safe circuits and non-intrinsically safe wiring per local hazardous area installation codes.
• Terminal Torque: Tighten all signal and ground terminal blocks to manufacturer-specified torque limits to prevent intermittent resistance or signal loss.
• Environmental Limits: Ensure the installation environment does not exceed 65 deg C, as thermal degradation may affect the accuracy of high-frequency signal processing.
