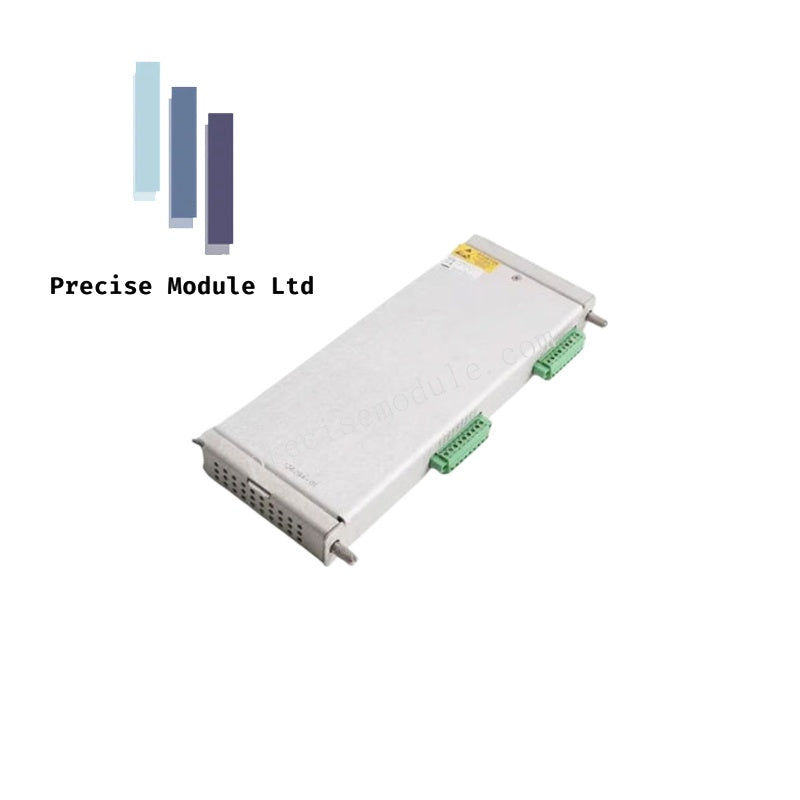

The Bently Nevada 140471-01, also cataloged as the 140471-01 3500/42M Proximitor Seismic Monitor, operates as a dedicated hardware component for vibration and position signal conditioning within the Bently Nevada 3500 machinery monitoring system.

Hardware Specifications

Eddy Current Signal Conditioning and Rotor Dynamics Monitoring

The Bently Nevada 140471-01 3500/42M Proximitor Seismic Monitor accepts proximity and seismic transducer inputs for vibration and position measurement processing. The four-channel module conditions input signals and compares processed parameters against user-programmable alarm setpoints.

The module supports eddy-current measurement applications requiring probe scaling verification, gap voltage validation, and rotor dynamics analysis. Engineering configuration includes cross-talk suppression checks, vibration channel calibration, and correct integration of proximity and seismic sensing circuits for machinery monitoring functions including radial vibration, REBAM, thrust position, acceleration, differential expansion, shaft absolute, eccentricity, circular acceptance region, and velocity.

Frequently Asked Questions

Q: What input devices are supported by the 140471-01 3500/42M module?
A: The module accepts input from proximity and seismic transducers for vibration and position monitoring.

Q: What gap voltage range is specified for the probe input circuit?
A: The specified gap voltage range is -2 V to -18 VDC.

Q: What measurement functions can be configured with this monitor?
A: Configurable functions include radial vibration, REBAM, thrust position, acceleration, differential expansion, shaft absolute, eccentricity, circular acceptance region, and velocity.

Field Installation Guidelines

Install the 140471-01 module in the assigned Bently Nevada 3500 rack position according to the system configuration. Verify probe excitation wiring, transducer polarity, and termination connections before startup. Maintain separation between vibration signal cables and high-voltage power wiring to reduce electrical interference. Confirm gap voltage, channel configuration, and alarm parameters through the 3500 Rack Configuration Software before placing the machinery protection system into service.
