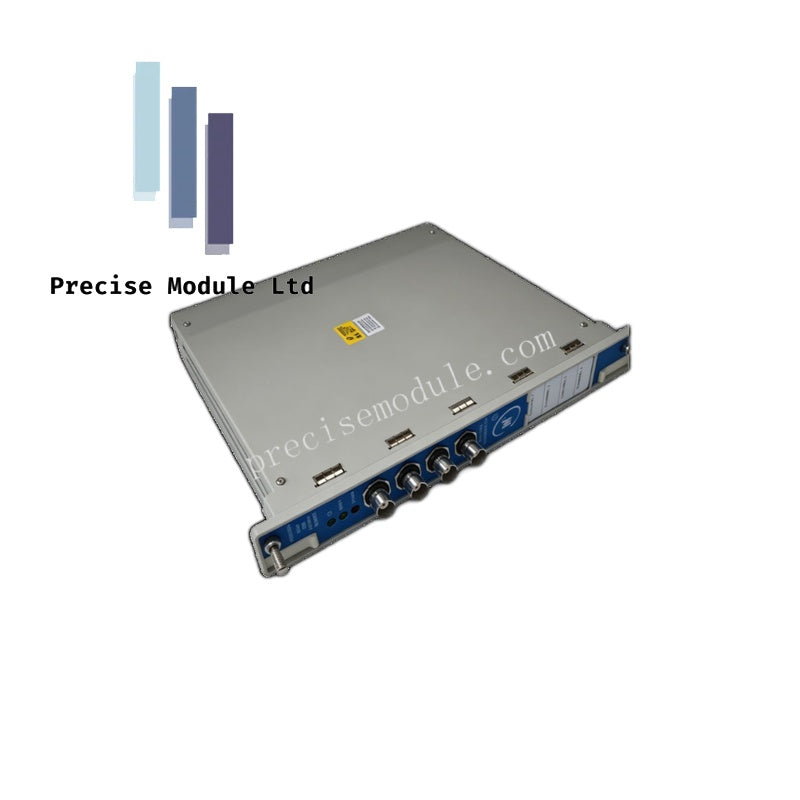

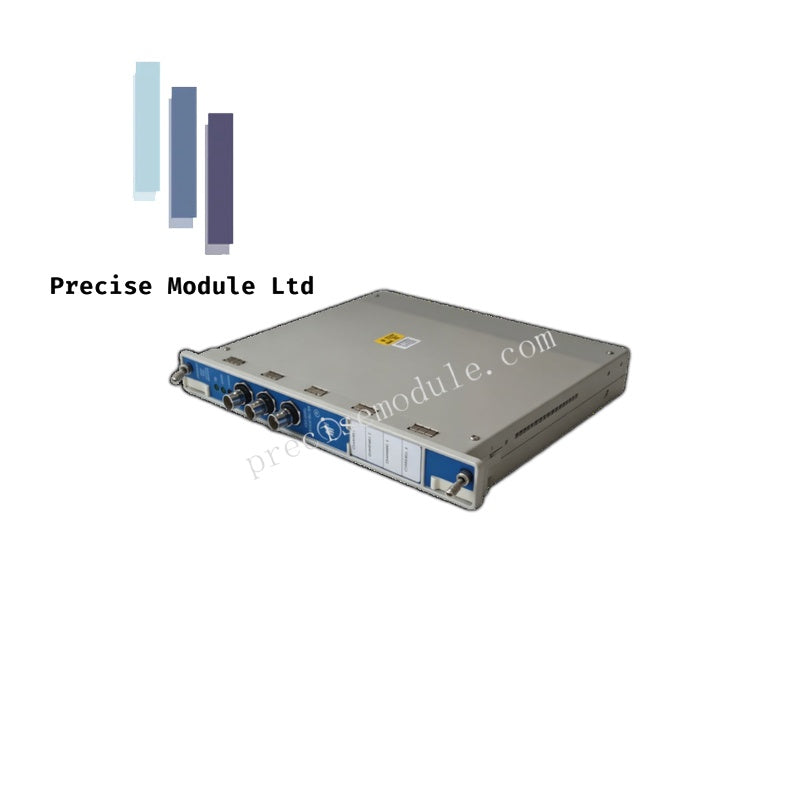

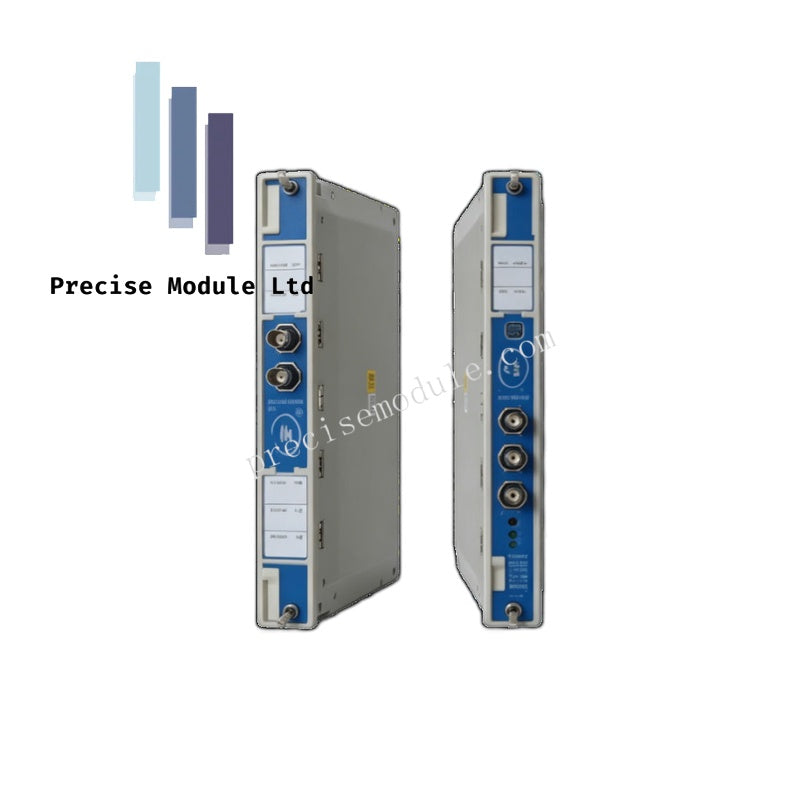

The Bently Nevada 3500/72M 140734-08, also cataloged as the 140734-08 Recip Rod Position Monitor, operates as a dedicated hardware component for static and dynamic measurements within machine turbine supervisory instrumentation (TSI) platforms.

Hardware Specifications

Eddy-Current Probe Scaling & Calibration

The 140734-08 processes input variables from proximity sensors configured with standard eddy-current probe scaling to convert physical displacement into electrical signals. Field loop verification relies on precise gap voltage validation, targeting -10 VDC as the electrical baseline representing the center of the probe linear range. Accurate gap targeting allows the module to extract clean rotor dynamics data and track rod drop performance. Signal processing paths apply internal filtering, including a 3 dB gap filter at 0.09 Hz, to maintain high cross-talk suppression and isolate valid displacement data from high-frequency electrical noise inside multi-channel conduit installations.

Frequently Asked Questions

Q: Can the 3500/72M channels be configured independently for different monitoring types?

A: Monitor channels are programmed in pairs using the system configuration software and can execute up to two distinct functions simultaneously across the four available physical loops.

Q: How many alert and danger setpoints can be configured per channel on the 140734-08?

A: Alert setpoints can be assigned for each active static value, while danger setpoints are restricted to a maximum of two active static values per configured channel.

Field Installation Guidelines

• Shield Grounding: Transducer cable shields must terminate strictly at the designated chassis ground busbar on the I/O terminal block. Do not ground the shield at both ends to avoid generating ground loop currents.
• Module Insertion: Power down the local 3500 rack power supply phase before inserting or removing the 140734-08 module to protect the backplane pins from damaging electrical arc transients.
• Conduit Routing: Maintain separate, isolated conduit channels for low-voltage proximity probe signals. Ensure signal lines are segregated from primary motor wiring or high-voltage control lines to suppress electromagnetic inductive coupling.
