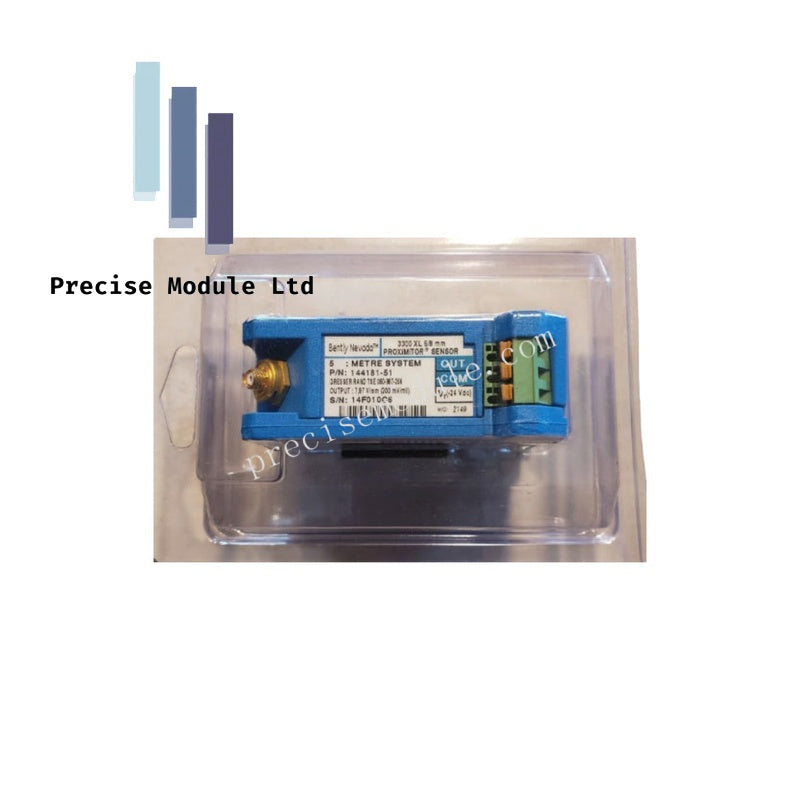

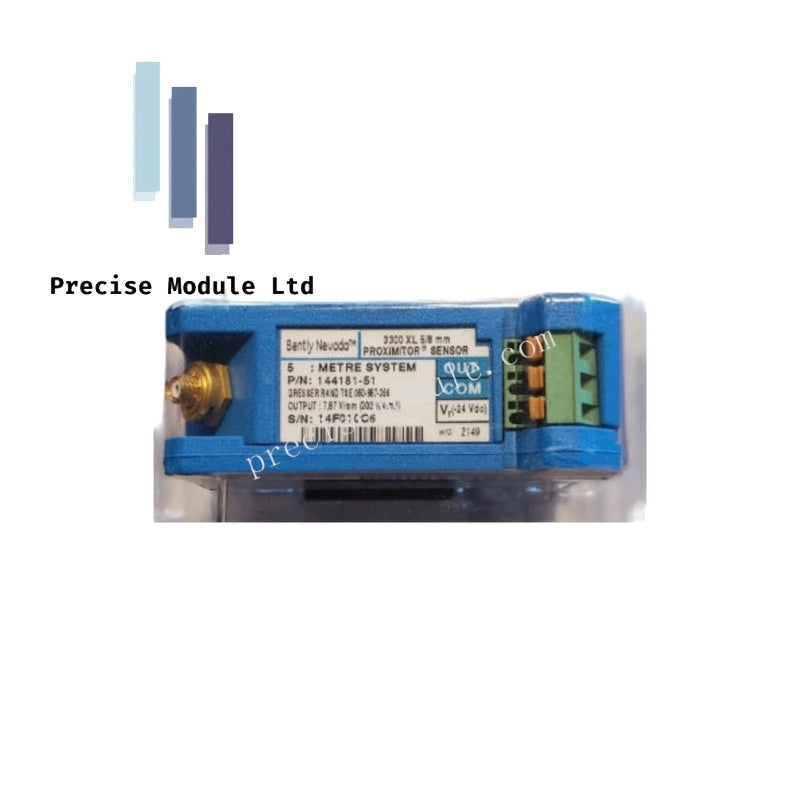

The Bently Nevada 144181-51, also cataloged as the 3300 XL 5/8mm Proximitor Sensor, serves as the primary 3300 XL Proximitor Sensor utilized to execute signal conditioning for proximity displacement measurements across machinery protection platforms. The module accepts high-frequency eddy-current inputs from standard 5 mm or 8 mm probes and converts them into a stable linear voltage output proportional to physical gap distance.

Hardware Specifications

Gap Voltage Validation & Signal Conditioning

Operation requires strict gap voltage validation (-10 VDC targets) at nominal calibration points to preserve the linear electrical range of the system. The internal oscillator conditions the high-frequency RF signal (ranging from 10 kHz to 1 MHz) transmitted through the 50 Ohm input line. Proper installation geometry maintains high eddy-current probe scaling accuracy (+/- 0.5%) and establishes optimal cross-talk suppression between adjacent sensors monitoring complex rotor dynamics within the bearing housing.

Frequently Asked Questions

Q: Can this 5/8mm Proximitor sensor be used with a 25 mm large-scale displacement probe?

A: No. The internal oscillator and linearization circuitry of the 144181-51 are calibrated for the specific impedance and sensitivity curves (7.87 V/mm) of 5 mm and 8 mm probes. Connecting a 25 mm probe will disable correct scale factor tracking and induce severe measurement saturation.

Q: What is the significance of the -17.5 VDC to -26 VDC input range?

A: This specifies the acceptable DC power rail window supplied by the monitoring rack (such as a 3500 series instrument network). Clean power within this envelope is necessary to prevent scale drift and maintain the baseline 100 mV measurement resolution.

Field Installation Guidelines

• Electrical Isolation: Mount the sensor enclosure directly onto 35 mm DIN rail or a flat bulkhead panel. Ensure the aluminum base remains completely isolated from structural machine grounds to prevent loop current noise contamination.
• Coaxial Connection Integrity: Verify that all coaxial threads from the probe extension cable are clean and properly aligned before mating. Tighten the collar finger-tight to preserve the standard 50 Ohm characteristic input impedance.
• Environmental Enclosures: In environments characterized by oil mist or high humidity, house the Proximitor inside an IP65-rated weatherproof junction box to prevent premature breakdown of the external terminal blocks.
