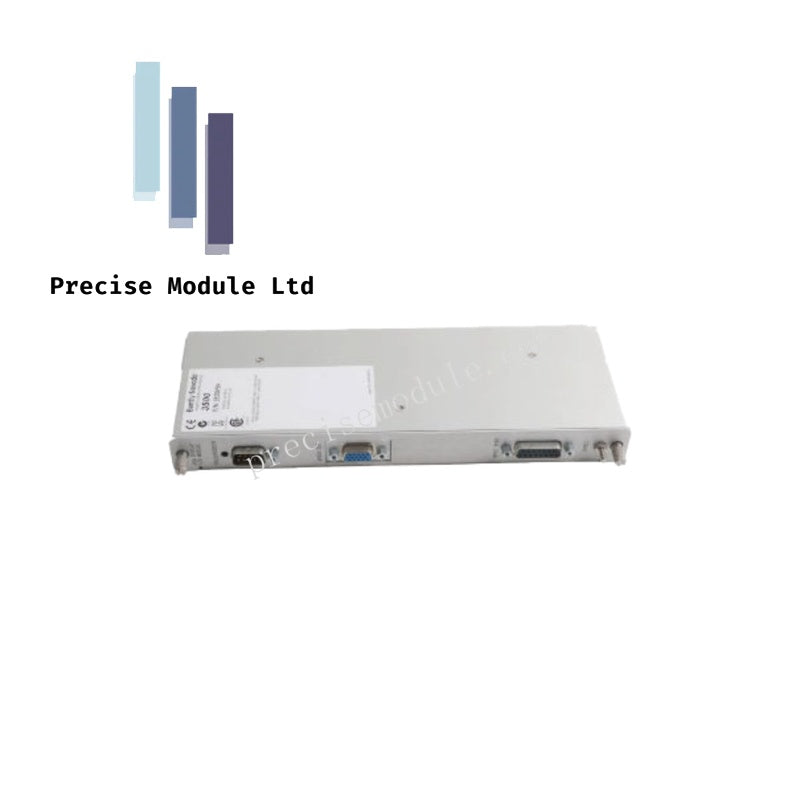

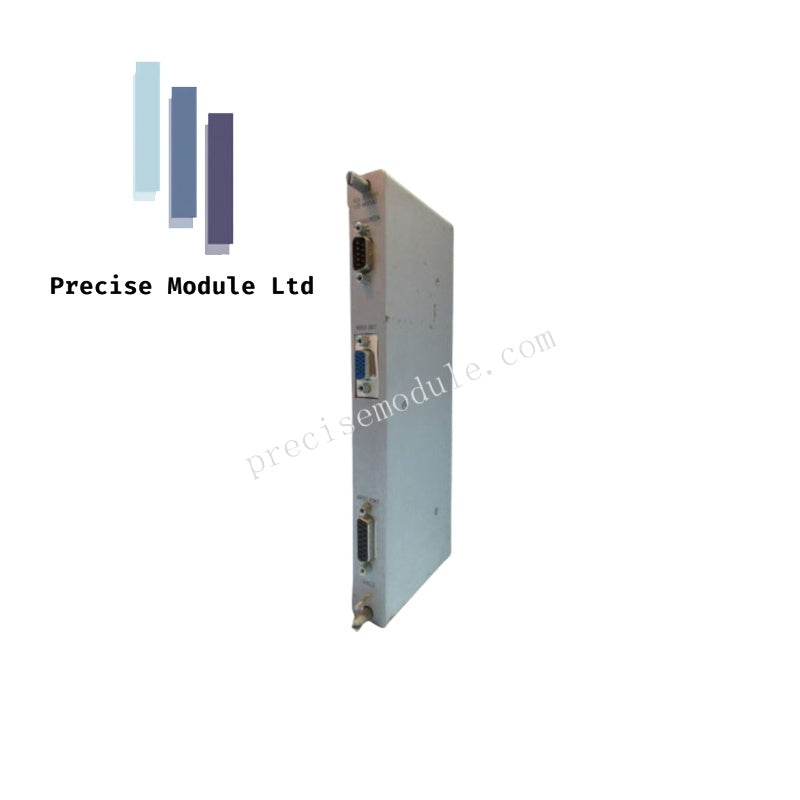

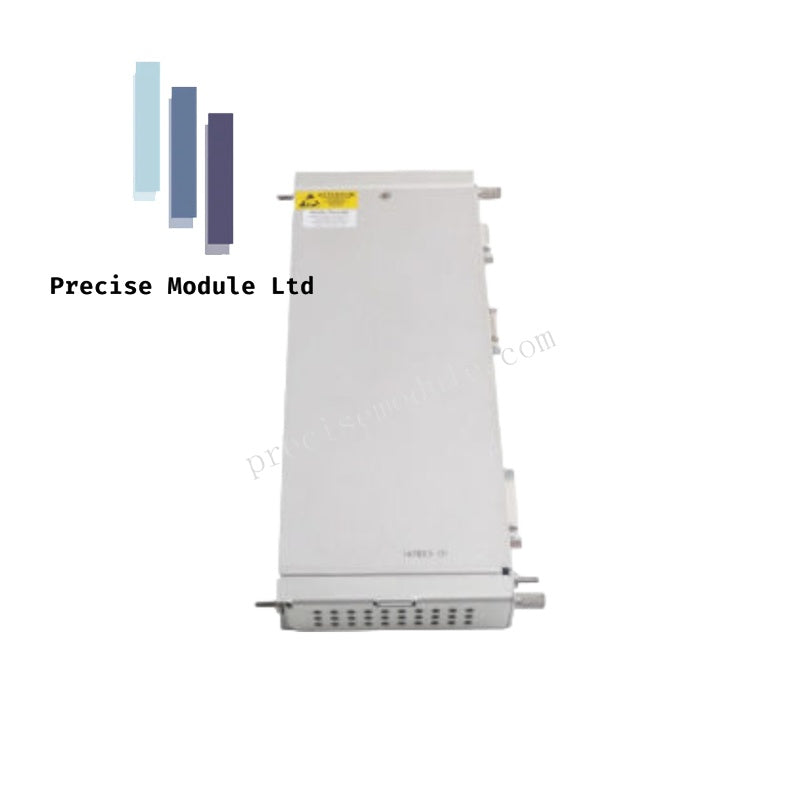

Bently Nevada 147663-01 3500 Series I/O Module

Bently Nevada 147663-01 3500 Series I/O Module

The Bently Nevada 147663-01, also cataloged as the 147663-01 I/O Module, operates as a dedicated hardware component for position transducer signal interface within the Bently Nevada 3500 Machinery Protection System.

Hardware Specifications

Eddy-Current Probe Scaling and Position Measurement Interface

The 147663-01 I/O Module provides the field signal interface required for position measurement applications using the Bently Nevada 3500/45 Position Monitor. The module supports signal connections from compatible proximity transducers, Rotary Position Transducers (RPTs), DC LVDTs, AC LVDTs, and rotary potentiometers.

The module interface supports eddy-current probe signal integration where proximity transducers are used for axial position and displacement measurement. Proper probe scaling and gap voltage configuration are required to maintain accurate position data acquisition.

The associated 3500/45 Position Monitor conditions input signals and compares measured values against user-programmable alarm setpoints. Configurable measurement functions include axial thrust position, differential expansion, case expansion, and valve position monitoring.

Frequently Asked Questions

Q: Which monitor module is associated with the 147663-01 I/O Module?
A: The 147663-01 is used with the Bently Nevada 3500/45 Position Monitor configuration.

Q: What transducer types can be connected through the 147663-01 module?
A: The module supports compatible proximity transducers, RPTs, DC LVDTs, AC LVDTs, and rotary potentiometer interfaces.

Q: Does the 147663-01 perform alarm processing directly?
A: No. The module provides signal interface functionality. Input conditioning and alarm comparison are performed by the associated 3500/45 Position Monitor.

Field Installation Guidelines

Install the 147663-01 module in the assigned 3500 rack I/O position according to the selected position monitoring configuration. Confirm that the connected transducer type matches the installed I/O module requirements before commissioning.

Route position sensor wiring separately from high-current conductors and switching power sources. Maintain cable shielding and grounding practices suitable for low-level displacement measurement circuits.

Verify supply polarity, field wiring termination, and transducer configuration parameters before energizing the rack. Ensure that the 3500 Rack Configuration Software settings correspond to the connected sensor type and required measurement function.

Maintain proper connector engagement and avoid mechanical stress on field wiring connections during installation and maintenance.
