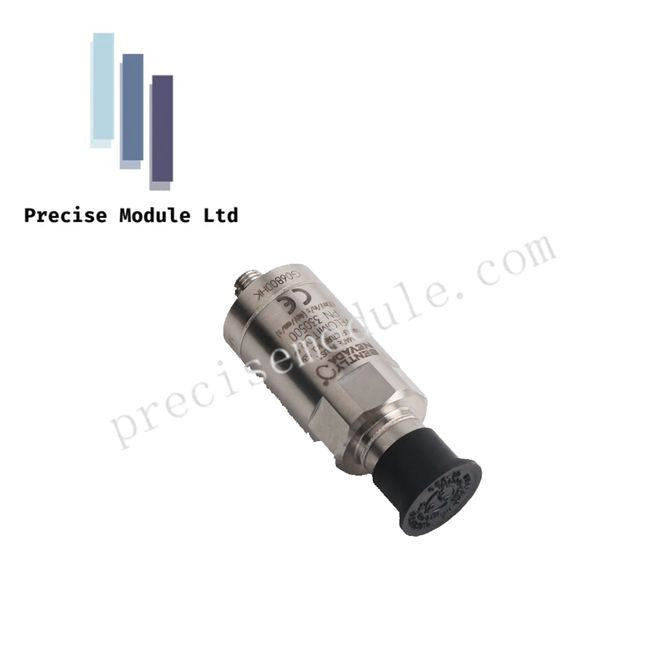

Bently Nevada 147M7136-02-01 Ranger Pro Wireless Vibration Sensor

Manufacturer: Bently Nevada
Product No.: 147M7136-02-01
Condition：in Stock
Product Type: Wireless Triaxial Vibration Sensor
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Description

The Bently Nevada 147M7136-02-01 is a high-performance, battery-powered wireless sensor designed for continuous monitoring of vibration and surface temperature on rotating machinery. Engineered for remote or challenging installations, it provides reliable condition monitoring without extensive cabling or infrastructure.

Integrated Sensing and Processing
This all-in-one unit captures tri-axial vibration (X, Y, Z) and surface temperature from a single mounting point. Onboard signal processing delivers overall vibration values, time waveforms, and frequency spectra, enabling early detection of mechanical faults.

Wireless Communication
Operates using the WirelessHART protocol, ensuring compatibility with existing industrial wireless networks. Mesh networking allows seamless integration with other WirelessHART instruments.

Rugged Industrial Design
Constructed with 316L stainless steel and high-performance PPS plastics, the sensor is IP67-rated for dust and moisture protection and certified for Class I, Division 1 hazardous environments.

Long-Term Operation
Optimized for low power consumption, the replaceable lithium-thionyl chloride battery can last up to five years depending on reporting intervals, making it ideal for long-term deployments.

Technical Specifications

Feature	Specification
Model	Ranger Pro 147M7136-02-01
Sensor Type	Tri-axial accelerometer with integrated temperature sensor
Frequency Range	0.1 Hz to 20 kHz
Acceleration Range	±1 g to ±20 g peak
Temperature Range	-40°C to +125°C (operating: -40°C to +85°C)
Wireless Protocol	WirelessHART
Wireless Range	Up to 150 meters (line-of-sight)
Battery	Replaceable lithium-thionyl chloride, up to 5 years
Enclosure	316L Stainless Steel with PPS plastic
Environmental Rating	IP67, CSA Class I, Division 1
Mounting Options	1/4-28 UNF or M6x1 stud mount
Weight	230 g
Shock Resistance	0.5 m drop onto concrete
Maximum Altitude	3,000 m / 9,842 ft outdoors

Applications

Optimized for motors, fans, pumps, and small compressors, the 147M7136-02-01 is ideal for remote plant areas where wiring is challenging. Its diagnostic algorithms, including PeakDemod for early bearing defect detection, make it suitable for chemical, oil & gas, and power generation industries.

FAQ

Q: Can this sensor operate in extreme temperatures?
A: Yes, the sensor functions from -40°C to 85°C. Extended operation above 85°C will reduce battery life.

Q: How is it mounted?
A: Standard 1/4-28 UNF or M6x1 stud mounting allows secure attachment to machinery.

Q: What wireless protocol does it support?
A: WirelessHART for mesh networking with other industrial instruments.
