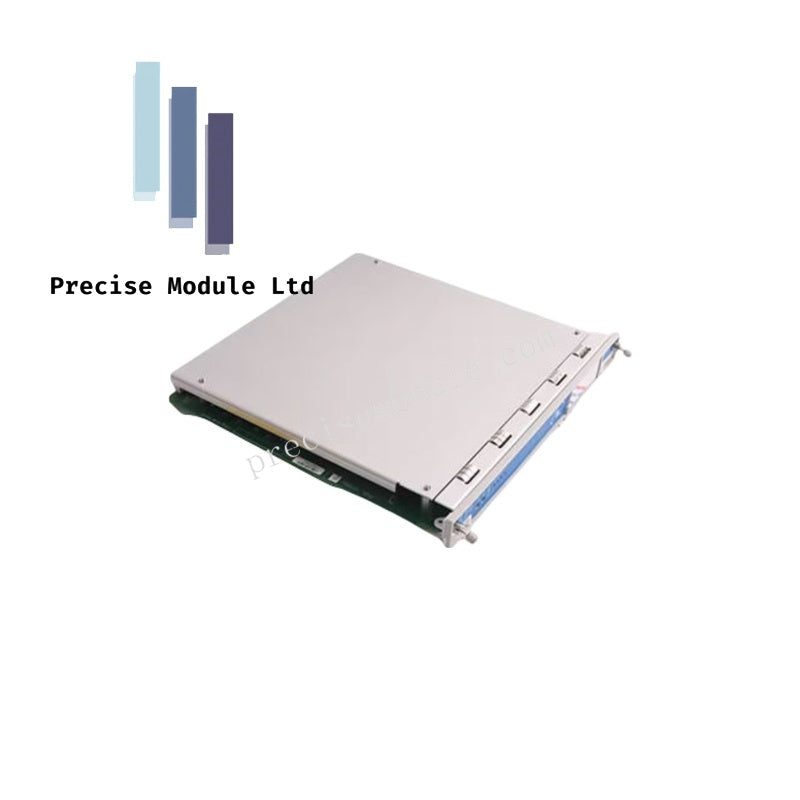

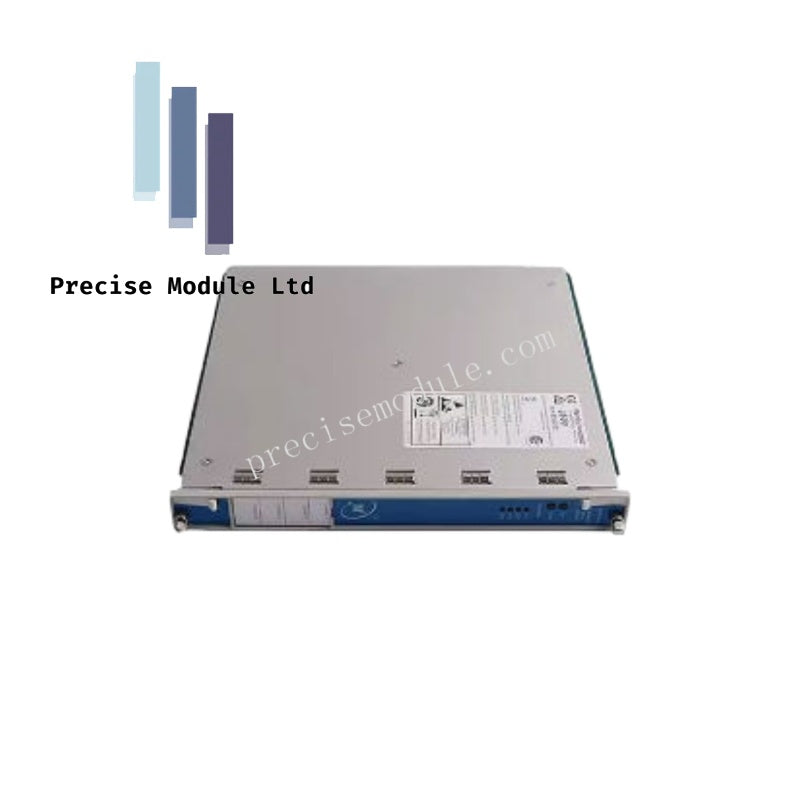

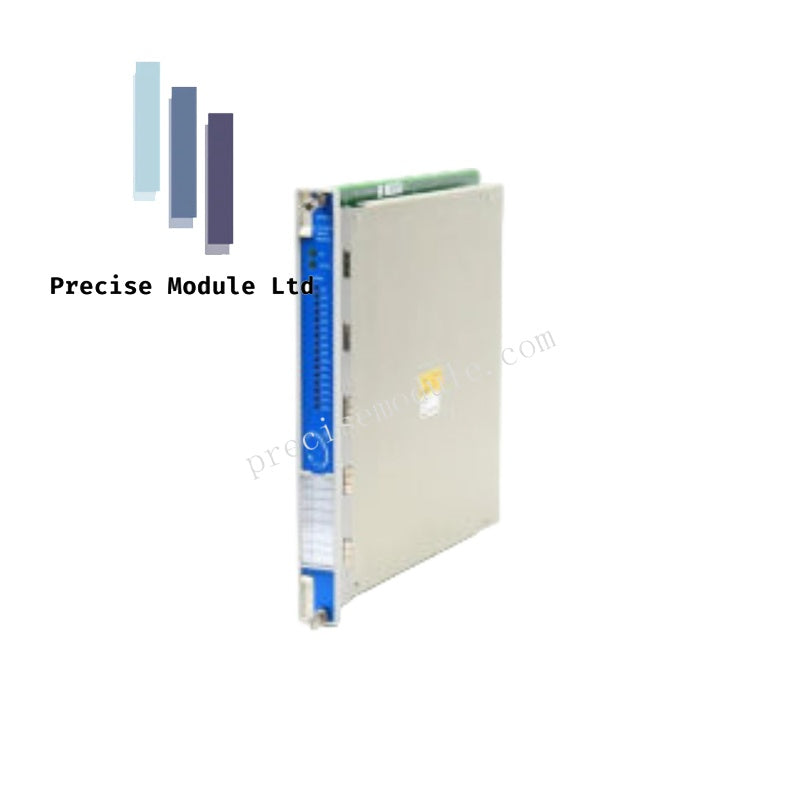

Bently Nevada 149369-01 3500/25 Enhanced Keyphasor Module

Bently Nevada 149369-01 3500/25 Enhanced Keyphasor Module

The Bently Nevada 149369-01, also cataloged as the 3500/25 Enhanced Keyphasor Module, serves as the primary 3500/25 Enhanced Keyphasor Module utilized to execute once-per-turn or multiple-event-per-turn pulse timing conversion across Bently Nevada 3500 Machinery Protection System platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The hardware intercepts analog raw data from proximity probes or magnetic pickups to establish digital tracking links. This mechanism tracks dynamic phase relationships by locking onto physical target marks, aligning the processed electrical voltage anomalies with actual rotor dynamics behavior. Through precise synchronization, monitor channels execute cross-talk suppression and parse phase measurements such as 1X vibration amplitude and phase vectors. Setting appropriate eddy-current probe scaling ensures accurate timing transitions, targeting proper pulse threshold limits that correlate with a safe gap voltage validation profile within the active machinery speed range.

Frequently Asked Questions

Q: Is the 149369-01 hardware downward-compatible with older 3500/25 module styles?

A: Yes. The 149369-01 design provides direct functional, fit, and form interchangeability with previous hardware designs, completely replacing legacy PWA 125792-01 components.

Q: How many Keyphasor signal inputs can a single 3500 system configuration handle?

A: A normal system layout accommodates up to four independent Keyphasor signal lines, whereas a paired configuration layout can accept up to eight individual Keyphasor signal lines.

Field Installation Guidelines

• TMR Configuration Paralleling: For Triple Modular Redundant (TMR) safety application baselines, install two physical Keyphasor modules in parallel to deliver both primary and secondary reference timing paths to the backplane.
• Conduit and Noise Isolation: Route all field transducer cabling originating from proximity sensors or magnetic pickups through dedicated, isolated grounded conduits to mitigate electromagnetic field coupling.
• Module Placement and Form Factor: Insert the 149369-01 module into its designated half-height front chassis slot while validating proper mating engagement with the corresponding full-height rear I/O module.
• Input Impedance Matching: Confirm that field sensors match the 21.8 kOhm minimum input impedance restriction of the module to prevent electrical reflection or input attenuation.
