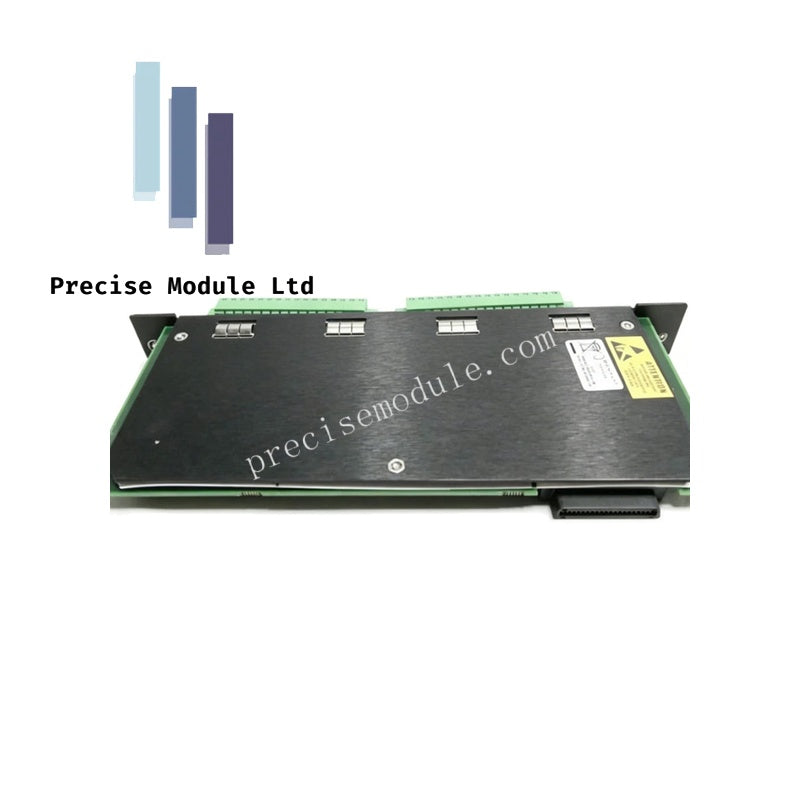

Configured for high-accuracy sensor data acquisition in machinery monitoring racks, the Bently Nevada 149811-01 (149811-01 Transducer Input Card) provides direct physical/electrical execution. The module samples two independent sensor blocks concurrently, routing proximity probe, Keyphasor (KPH), or speed inputs directly into the monitoring system backplane.

Hardware Specifications

Proximity Transducer Mechanical Monitoring Attributes

The 149811-01 card delivers integrated transducer power supply regulation, maintaining standard -24 VDC voltage parameters directly to field-mounted sensors. Simultaneous block sampling ensures phase tracking alignment across X and Y radial vibration vectors, which is critical for verifying accurate rotor dynamics orbits. The hardware layout isolates input channels to maintain cross-talk suppression and steady gap voltage validation when multiple proximity probes operate adjacent to one another along the shaft surface.

Frequently Asked Questions

Q: Can this input card process high-density speed signals from a multi-tooth multi-event gear wheel?

A: No. The 149811-01 hardware is designed for standard single-event speed or Keyphasor pulse inputs and does not support multi-event target wheels.

Q: Are the input blocks sampled in a multiplexed sequential pattern?

A: No. Both input blocks on the card are sampled simultaneously to ensure zero phase shift between correlated displacement vectors.

Field Installation Guidelines

Isolate and power down the card chassis before inserting the module into its designated backplane slot. Align the 149811-01 circuit board along the card guide rails and push firmly until the rear connector seats into the backplane pin assembly. Secure the front plate retention screws to maintain a rigid chassis ground connection. When wiring proximity probes, verify the supply lines read within the standard -24 VDC +/- 5% specification at the field terminal block prior to startup.
