Bently Nevada 149992-01 3500/33 16-Channel Relay Module

Bently Nevada 149992-01 3500/33 16-Channel Relay Module

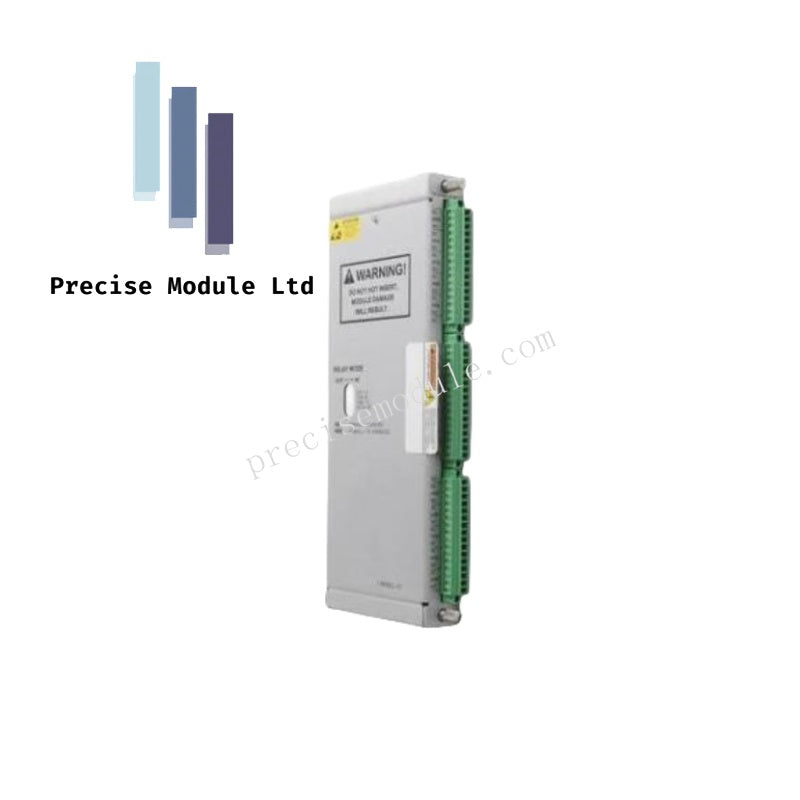

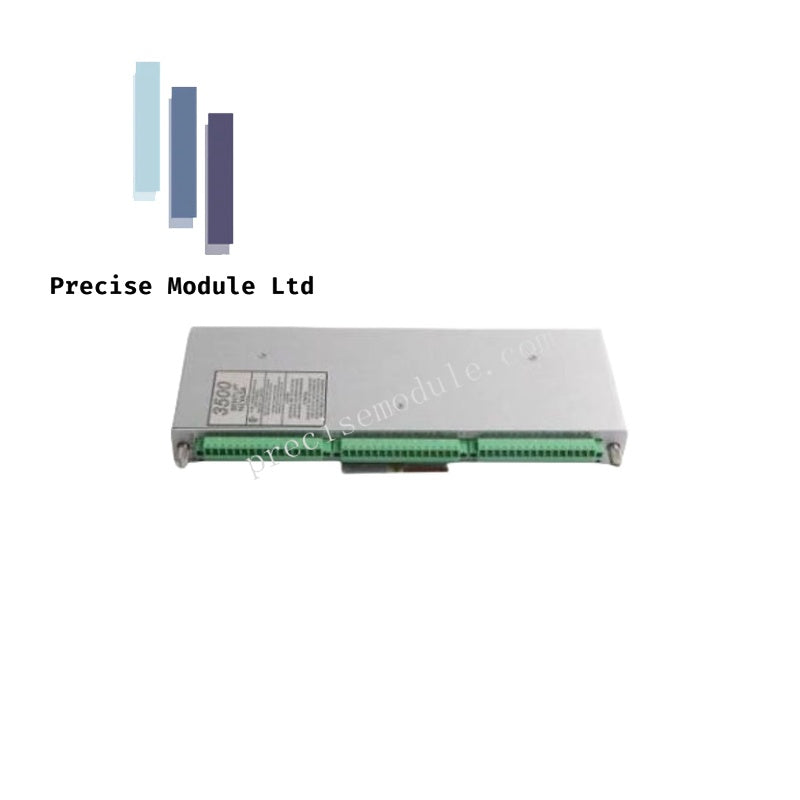

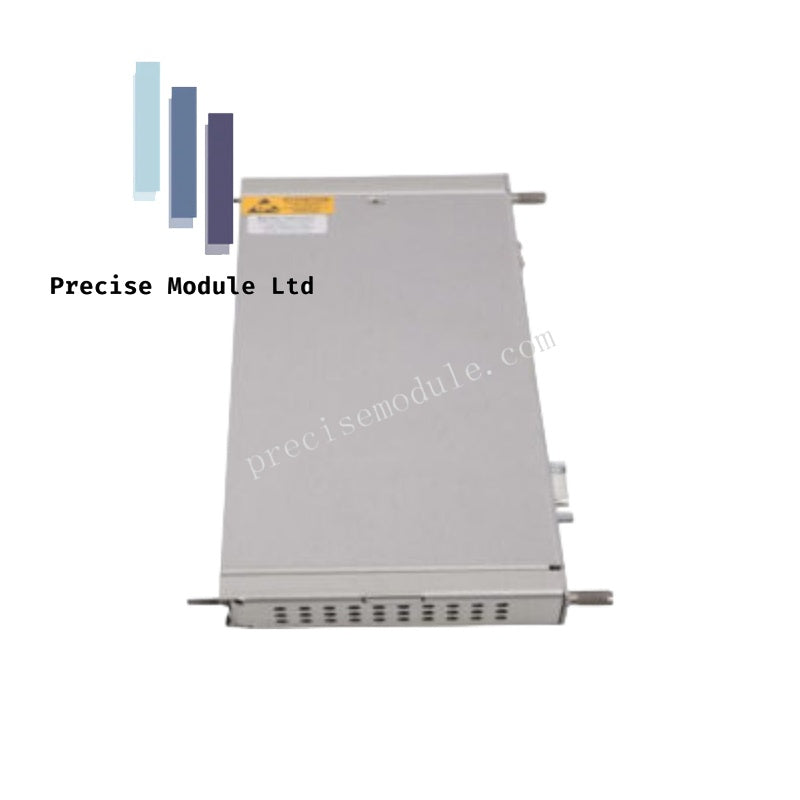

The Bently Nevada 149992-01, also cataloged as the 3500/33 16-Channel Relay Output Module, operates as a dedicated hardware component for executing programmable alarm drive logic within 3500 series machinery protection systems.

Hardware Specifications

Bently Nevada Mechanical Monitoring & TSI Characteristics

The 149992-01 module is designed to provide high-density switching capabilities for machinery protection, utilizing advanced voting logic for trip or alarm sequences. Each of the 16 relays can be independently programmed via the 3500 Rack Configuration Software to perform logical operations based on Alert and Danger status, Not-OK conditions, or specific Measured Variables derived from other monitor channels within the rack. This module ensures fail-safe state execution through sophisticated Alarm Drive Logic, employing AND/OR gates to prevent nuisance trips while maintaining strict adherence to safety instrumented system requirements. Proper termination of relay contact wiring is required to prevent electrical noise coupling back into the 3500 backplane bus.

Frequently Asked Questions

Q: Does this module support hot-swap capabilities in the 3500 rack?

A: Yes. The 149992-01 is designed for safe removal and insertion while the 3500 rack is powered, provided that the associated relay contact loads are properly isolated to prevent transient switching.

Q: Can the voting logic be modified without taking the machine offline?

A: Yes. Configuration changes are performed via the 3500 Rack Configuration Software and downloaded to the module. Ensure all logic changes are verified against the machine's safety documentation before commissioning.

Field Installation Guidelines

1. Backplane Insertion: Ensure the module is seated correctly in any slot to the right of the Transient Data Interface (TDI) module. Secure the front panel fasteners to maintain the electromagnetic shielding of the rack.
2. Wiring Termination: Use the appropriate I/O module connectors. Ensure that relay output circuits are fused based on the connected load to protect the internal relay contacts from excessive current or inductive back-EMF.
3. Grounding: Verify that the rack maintains a high-integrity connection to the system common ground to ensure accurate logic signaling and noise immunity across the backplane bus.
4. Environment: Install within an enclosed, climate-controlled cabinet to stay within the –30 deg C to +65 deg C operational range and prevent excessive humidity (up to 95% non-condensing) from corroding internal contacts.
