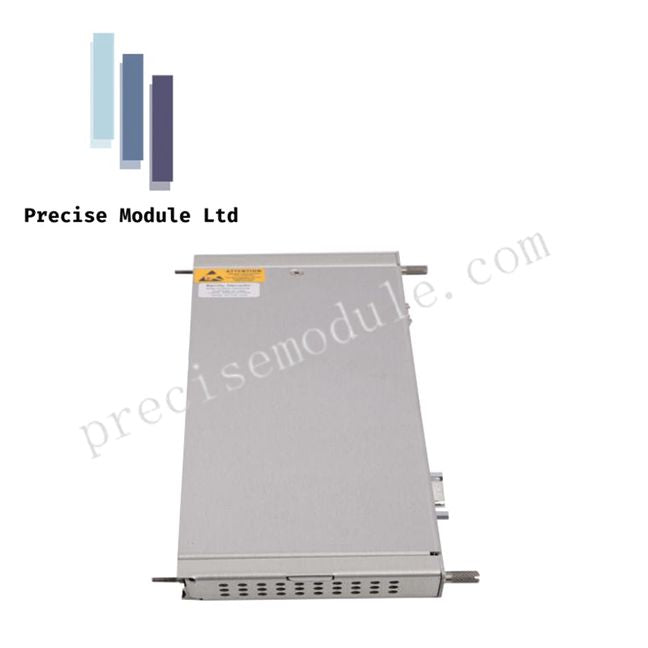

Bently Nevada 149992-01 DSM Power Supply I/O Module High Reliability

Product Description

Overview

The Bently Nevada 149992-01 is a rear-mounted I/O module designed for the Trendmaster Dynamic Scanning Module (DSM) rack. This module acts as the primary interface for DC power, delivering filtered and protected energy to the internal DSM backplane. It ensures reliable operation of all diagnostic and monitoring cards, supporting critical industrial environments.

Key Functions and Features

Reliable Power Distribution

• Handles input voltages between 20 to 30 Vdc (nominal 24 Vdc)

• Stabilizes current to prevent voltage spikes and safeguard internal electronics

Redundancy and Continuous Operation

• Supports dual power feeds for uninterrupted operation

• Ideal for mission-critical monitoring systems where downtime is unacceptable

Built-in Protection Mechanisms

• Over-current Protection: Integrated fuses prevent damage during short circuits

• Reverse Polarity Protection: Protects the DSM system against incorrect wiring

Industrial-Grade Durability

• Operating temperature range: -20°C to +65°C

• Vibration-resistant design suited for continuous industrial operation

Technical Specifications

Applications

• Ideal for Trendmaster DSM racks in industrial monitoring and control environments

• Frequently paired with 149986-01 Power Supply Module to ensure robust rack operation

FAQ

Q: Can it handle redundant power sources?
A: Yes, it supports dual independent feeds for continuous operation.

Q: Is it compatible with all Trendmaster DSM racks?
A: It is specifically designed for the 149744 DSM Rack.

Q: What safety features are included?
A: Includes over-current and reverse polarity protection.

Q: Can it operate in harsh environments?
A: Yes, it supports temperatures from -20°C to +65°C and vibration-prone areas.
