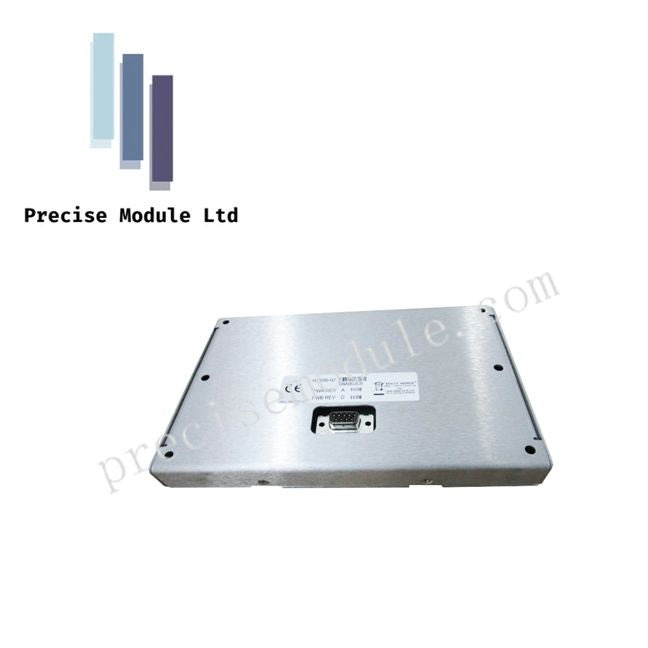

Bently Nevada 167699-02 1900/65A Display Module | GPEM Operator Interface

Product Description

Overview

The Bently Nevada 167699-02 is a dedicated Display Module (Operator Interface) designed for the 1900/65A General Purpose Equipment Monitor (GPEM). It provides a direct, user-friendly interface for operators to monitor machine health, including vibration and temperature data, alarm statuses, and real-time diagnostics.

Compact and panel-mountable, the 167699-02 enables local monitoring without the need for a PC, making it ideal for standalone machinery protection setups. It complements the 1900/65A Monitor Module to deliver a complete condition monitoring solution for rotating equipment.

Key Features

Visual Monitoring

• High-contrast LCD shows all four transducer and temperature channels

• Dedicated OK, Alert, and Danger LEDs for instant equipment status

• Buffered output allows connection to portable diagnostic tools without disrupting the monitor

Local Control & Configuration

• Built-in keypad enables scrolling through measurements, resetting latched alarms, and basic configuration

• Can be mounted directly on the monitor module or remotely up to 75 meters (250 feet)

Connectivity & Protection

• Serial interface to the 1900/65A Monitor Module (RS232/485 optional)

• Short-circuit-resistant buffered outputs

• EMI-hardened for reliable industrial performance

Durability & Installation

• Compact half-height design minimizes panel space requirements

• Operational temperature: -20°C to +70°C (-4°F to +158°F)

• Weight: approx. 0.40 kg (0.89 lb)

Technical Specifications

Applications

• Continuous monitoring of rotating machinery

• Predictive maintenance programs

• Local diagnostic display in standalone GPEM setups

• Integration with vibration analyzers for transient analysis

FAQ

Q: Can this display module be mounted remotely?
A: Yes, it can be installed up to 75 meters (250 feet) away from the monitor module.

Q: Does the buffered output interfere with the monitoring loop?
A: No, it is fully protected and allows diagnostics without disturbing the primary signals.

Q: Is this module suitable for integration with DCS or SCADA?
A: While designed for standalone monitoring, it can be integrated into larger control systems via the monitor module’s communication interfaces.
