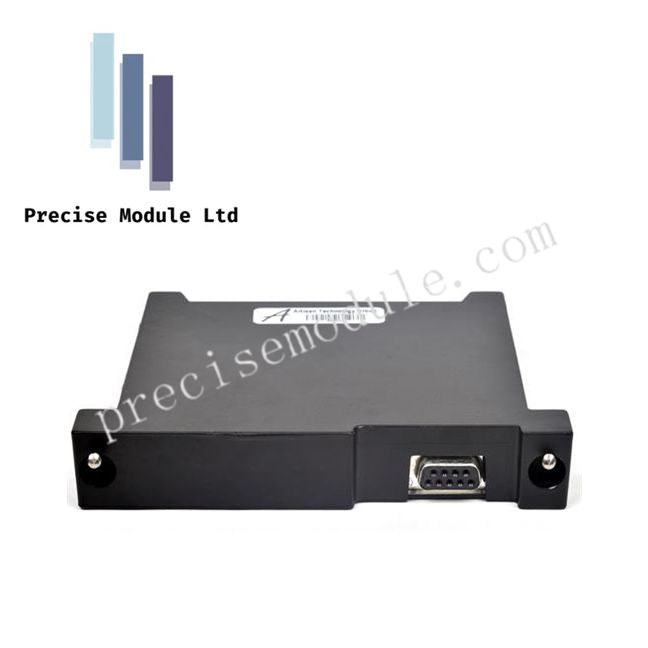

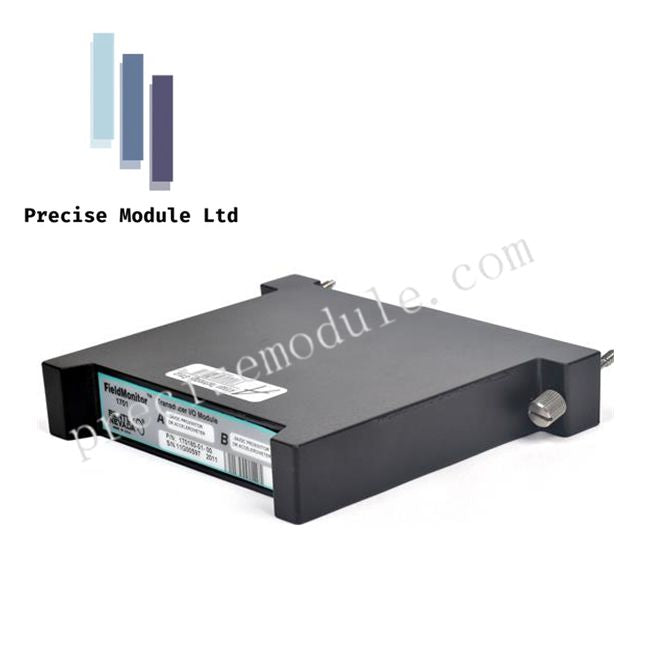

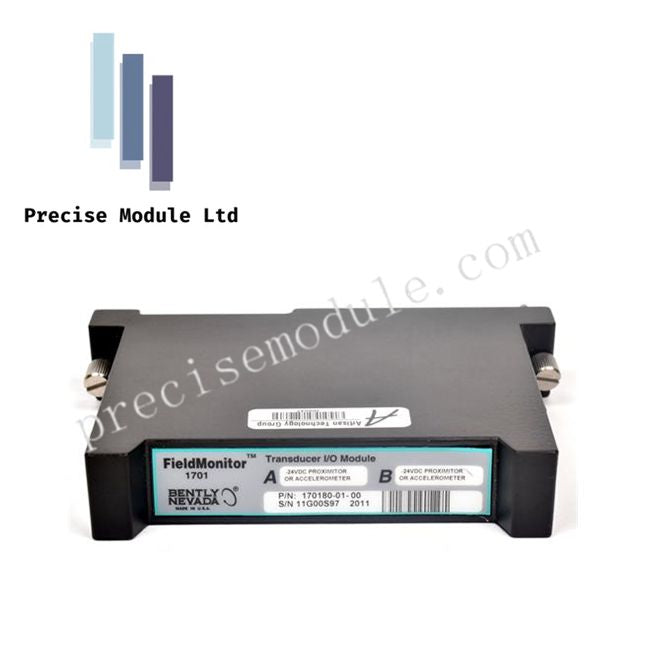

Bently Nevada 170180-01-00 FieldMonitor External Transducer I/O Module

Product Description

Overview

The Bently Nevada 170180-01-00 FieldMonitor External Transducer I/O Module provides a robust interface between field-mounted transducers and the 1701 FieldMonitor system. Designed for distributed machinery monitoring, this module supports two transducer channels, delivering reliable signal transfer while minimizing the effects of long cable runs and electrical noise.

The -01-00 configuration identifies dual input capability for Proximitor® or accelerometer sensors and compliance with standard hazardous area approvals (typically Division 2/Zone 2).

Key Features

Dual Channel Input Flexibility

• Supports up to two independent transducer signals per module, including Proximitor sensors, accelerometers, or 2-wire velocity sensors.

• Optimized input circuitry ensures high fidelity signal transfer from field devices to the processor.

Distributed Field-Mounted Architecture

• Designed for installation close to machinery, reducing cable lengths and signal degradation.

• Compact footprint allows efficient use of space in FieldMonitor terminal bases.

Rugged Environmental Durability

• Operates reliably in extreme conditions from -34°C to +85°C (-30°F to +185°F).

• Resistant to high humidity (up to 100% condensing) and industrial-grade vibration or shock, making it suitable for direct equipment mounting.

Electrical Protection

• Provides galvanic isolation between field wiring and internal electronics to prevent ground loops and protect against electrical surges or faults.

Technical Specifications

Applications

• Interfaces field-mounted machinery sensors to the 1701 FieldMonitor system.

• Ideal for proximity probes, accelerometers, and velocity transducers in distributed monitoring setups.

• Reduces wiring complexity and improves signal reliability in industrial environments.

FAQ

Q: Can this module support both Proximitor and accelerometer sensors?
A: Yes, the module can interface with up to two Proximitor or accelerometer inputs, depending on the paired 1701 processor.

Q: Is it suitable for hazardous locations?
A: Yes, the -01-00 configuration meets standard Division 2/Zone 2 approvals.

Q: Can it be mounted near rotating machinery?
A: Absolutely, it is built to withstand high vibration, shock, and extreme temperature conditions.

Q: Does it provide electrical isolation?
A: Yes, galvanic isolation protects the system from ground loops and field wiring faults.
