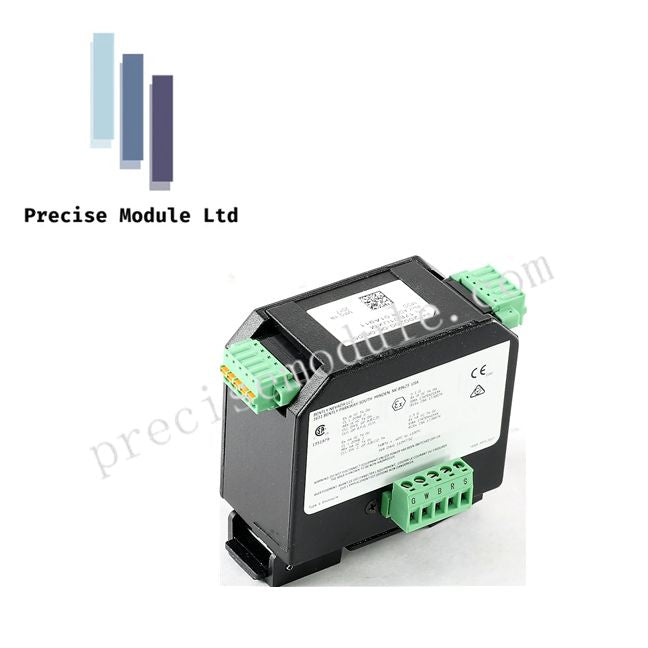

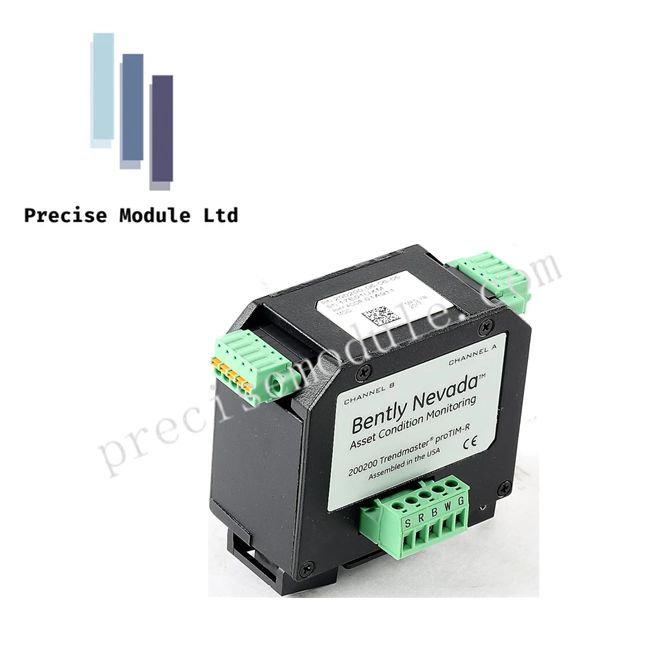

Bently Nevada 200200-06-06-05 ProTIM-R Vibration Temperature Module

Product Description

Overview

The Bently Nevada 200200-06-06-05 is a high-performance ProTIM-R module engineered for Trendmaster® Pro systems. This dual-channel device enables simultaneous monitoring of vibration and temperature in rotating machinery, providing accurate signal conditioning, robust communication, and reliable operation under extreme industrial conditions. It integrates seamlessly with a variety of sensor types and supports advanced diagnostics for predictive maintenance programs.

Key Features

• Dual-input monitoring for vibration and temperature

• Compatible with accelerometers, velocity sensors, RDs (Ptoo), and K-type thermocouples

• Acceleration-to-velocity conversion and acceleration enveloping signal processing

• Ethernet and RS485 interfaces for industrial network integration

• DIN rail mounting for easy installation

• Wide operating temperature range from -40°C to +85°C

• High accuracy with ±1% full-scale resolution

• Configurable output channels supporting current (4–20 mA) and voltage (1–5 VDC)

Technical Specifications

Advanced Performance

The module is built on the proven 3300 XL Proximitor Sensor technology. It ensures precise detection of shaft position and vibration, maintaining linear output over the full range. With minimal temperature drift, it delivers reliable measurements from cold startups to fully operational conditions.

Applications

• Radial vibration monitoring for bearings and shafts

• Axial shaft position and thrust tracking

• Tachometer signal generation for RPM measurements

• Predictive maintenance and early fault detection

Compatibility & Upgrades

The 200200-06-06-05 maintains full electrical and mechanical compatibility with non-XL 3300 series 8mm components, allowing straightforward system upgrades without replacing existing hardware.

FAQs

Q: Which sensors can I connect to this module?
A: It supports accelerometers, velocity sensors, RDs (Ptoo), and K-type thermocouples.

Q: Can it operate in extreme temperatures?
A: Yes, it functions reliably from -40°C to +85°C.

Q: Is it suitable for hazardous areas?
A: The -05 variant includes international approvals such as ATEX, IECEx, and CSA.

Q: How is it mounted?
A: The module is designed for standard 35 mm DIN rail installation.
