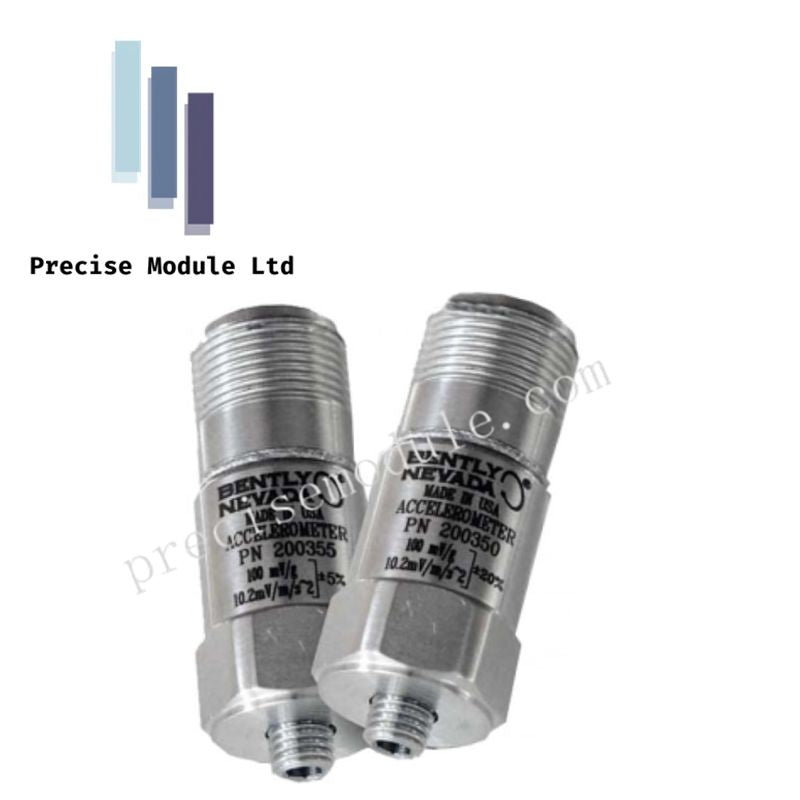

Bently Nevada 200350 / 200355 – Industrial Accelerometers

Overview

The Bently Nevada 200350 and Bently Nevada 200355 are robust, case-mounted seismic accelerometers designed for vibration monitoring in demanding industrial environments. Both models work seamlessly with the Trendmaster Pro Constant Current Direct Input Card (149811-02) and the Seismic Direct Input Card (164746-01), ensuring accurate integration with Bently Nevada systems.

Housed in hermetically sealed stainless steel casings, these accelerometers offer exceptional durability. Their piezoelectric sensing elements convert vibration into precise electrical signals, supporting early detection of rotor issues such as imbalance or misalignment. The top-mounted MIL-C5015 two-pin connector simplifies cable installation, while the ¼-28 threaded mounting hole ensures secure attachment to machine casings or bearing housings.

Technical Specifications

Feature	200350	200355
Model Number	200350	200355
Sensitivity	100 mV/g ±20%	100 mV/g ±5%
Frequency Range (±3 dB)	30–600,000 cpm (0.5–10,000 Hz)	12–600,000 cpm (0.2–10,000 Hz)
Measurement Range	±50 g	±50 g
Transverse Sensitivity	≤7%	≤5%
Amplitude Linearity	±1%	±1%
Resonant Frequency	1500 kcpm (25 kHz)	1250 kcpm (20.8 kHz)
Broadband Electrical Noise	350 µg (3,434 µm/s²)	50 µg (491 µm/s²)
Output Bias Voltage	8–12 VDC	8–12 VDC
Excitation Voltage	18–28 VDC	18–28 VDC
Constant Current Excitation	2–20 mA	2–20 mA
Settling Time	≤2.0 sec	≤5.0 sec
Output Impedance	<150 ohms	<100 ohms
Discharge Time Constant	≥0.3 sec	≥0.8 sec
Electrical Isolation	>10⁸ ohms	>10⁸ ohms
Connector Type	MIL-C5015, 2-pin top-mounted	MIL-C5015, 2-pin top-mounted
Mounting Thread	¼-28 threaded hole	¼-28 threaded hole
Case Material	Stainless steel (hermetic seal)	Stainless steel (hermetic seal)
