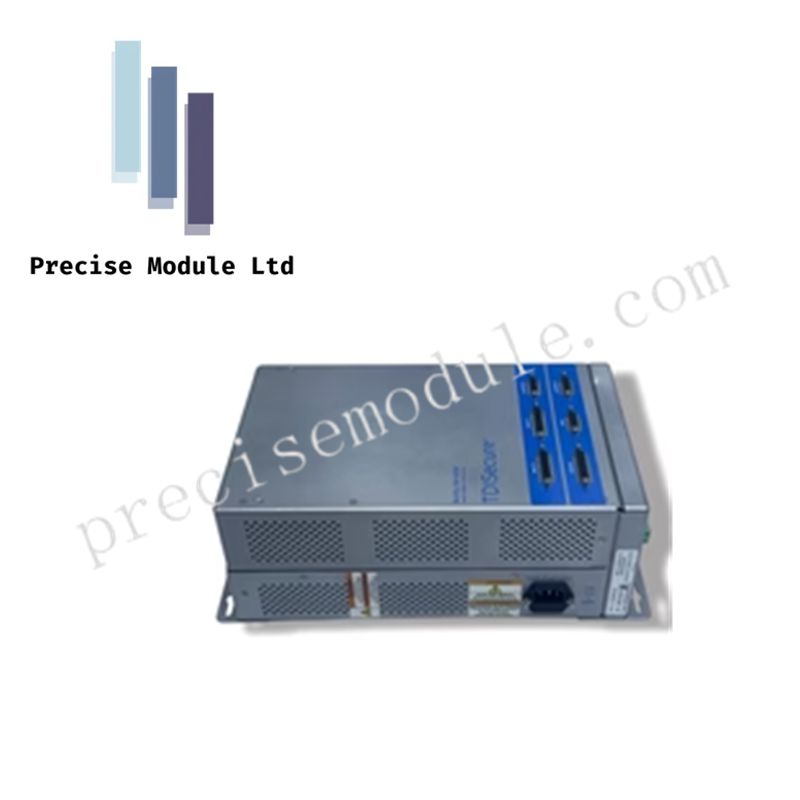

Bently Nevada 2155/40 TDISecure Processor | Secure Machinery Data Interface

Product Description

Overview

The Bently Nevada 2155/40 TDISecure Communication Processor is a high-performance interface module for industrial machinery monitoring. Designed to bridge Bently Nevada 3500 series hardware with software platforms such as System 1, it provides secure, high-fidelity data acquisition while isolating monitoring functions from critical protection systems.

Its TDISecure architecture emphasizes cybersecurity, ensuring that transient and steady-state data can be collected without compromising the integrity of machine protection logic. This module is ideal for high-value rotating assets where precise vibration, process, and speed data are critical.

Product Variants

• 2155/40-01: AC input, 100–240 VAC

• 2155/40-02: DC input, 20–36 VDC

Technical Specifications

Key Features and Benefits

• High-Fidelity Data Acquisition: Parallel collection of vibration, process, and transient signals for precise diagnostics.

• Cybersecurity Integration: Isolates monitoring data from protection logic to prevent unauthorized access.

• Transient Data Capture: Automatically records startup and shutdown waveforms with real-time plotting in Polar, Orbit, Bode, and Waterfall formats.

• Direct Sensor Power: Supplies integrated power to up to four Proximitor sensors for simplified wiring.

• Legacy System Upgrade: Compatible with older TDXnet/TDiX installations, minimizing replacement costs.

Applications

• Turbomachinery condition monitoring during startup, shutdown, and steady-state operations

• Predictive maintenance and root-cause diagnostics

• Cyber-secure data acquisition for critical industrial assets

• Integration with Bently Nevada System 1 software for centralized monitoring

FAQ

Q: What is the main purpose of the 2155/40 TDISecure?
A: It provides secure, high-resolution data acquisition for vibration, process, and transient signals without interfering with machine protection logic.

Q: How many dynamic channels can it support?
A: Up to 24 dynamic channels and 24 process inputs simultaneously.

Q: Can it replace older communication processors?
A: Yes, it serves as a drop-in upgrade for TDXnet and TDiX units.

Q: What are the cybersecurity features?
A: The module isolates the protection rack from external networks and controls data flow to prevent unauthorized access.

Q: What transient data capabilities does it provide?
A: Captures startup/shutdown waveforms with independent buffers and real-time plotting (Polar, Bode, Orbit, Waterfall).

Q: What are the power options?
A: Available in AC-powered (100–240 VAC) and DC-powered (20–36 VDC) versions.
