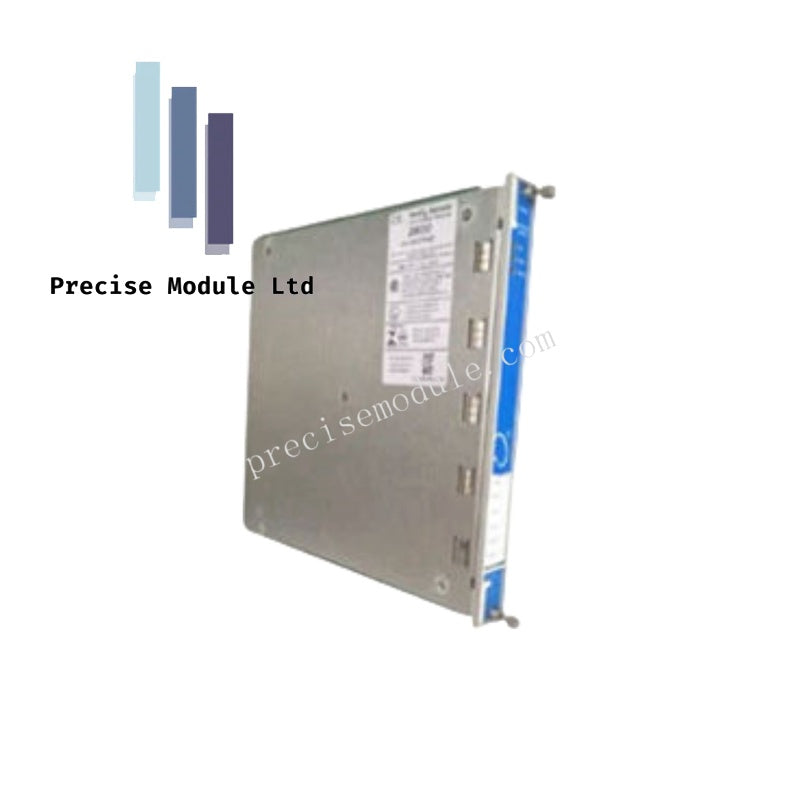

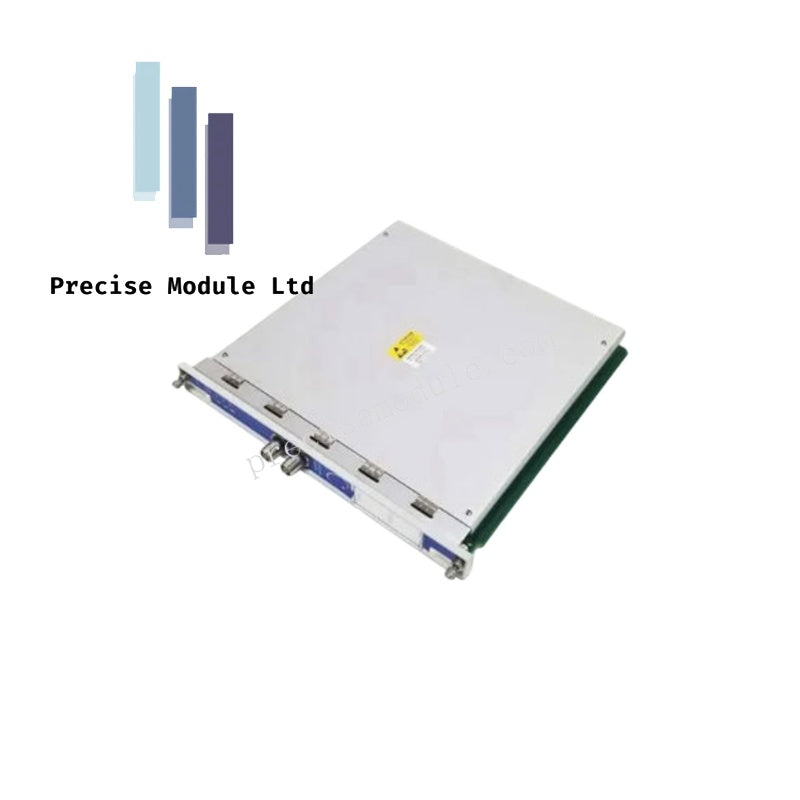

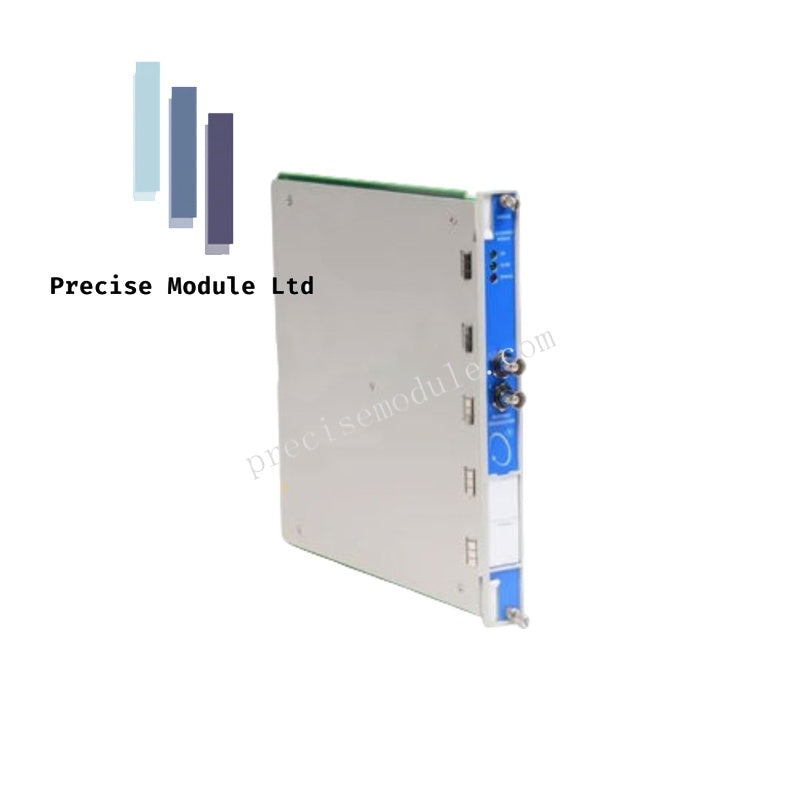

Bently Nevada 286566-01 288062-01 Overspeed Detection Module

Bently Nevada 286566-01 288062-01 Overspeed Detection Module

Configured for overspeed protection signal processing in the Bently Nevada 3500 Series Machinery Detection System, the Bently Nevada 286566-01 288062-01 (3500/53M Overspeed Detection Module) provides direct electrical execution for redundant tachometer input monitoring and voting logic. The module processes speed signals and supports 2-out-of-2 or 2-out-of-3 voting configurations for machinery overspeed protection systems.

Suffix Breakdown & Model Matrix

The available technical information identifies 286566-01 and 288062-01 as associated product identifiers for the Bently Nevada 3500/53M Overspeed Detection Module. No official option code breakdown is provided in the available data; therefore, individual suffix meanings are not expanded.

Hardware Specifications

Overspeed Detection and Tachometer Signal Validation

The 3500/53M Overspeed Detection Module provides redundant tachometer signal monitoring for overspeed protection applications. Multiple modules can be configured into voting architectures including 2-out-of-2 and 2-out-of-3 arrangements, with 2-out-of-3 voting recommended for increased fault tolerance.

The module interfaces with speed transducers and processes rotational speed inputs for protective trip logic. During commissioning, tachometer signal scaling, input polarity, and signal amplitude should be verified to ensure correct speed measurement. Electrical isolation, shield termination, and cable routing practices reduce signal interference that may affect high-speed detection circuits.

Frequently Asked Questions

Q: Does the module support redundant voting configurations?
A: Yes. The 3500/53M Overspeed Detection Module can be combined with other modules to form 2-out-of-2 or 2-out-of-3 voting configurations.

Q: Is a standard 3500 rack sufficient for operation?
A: The overspeed detection system requires a 3500 rack equipped with redundant power supplies.

Q: What should be checked when installing tachometer input wiring?
A: Verify transducer wiring polarity, signal continuity, shield grounding, and input signal levels before enabling overspeed protection functions.

Field Installation Guidelines

• Install the module only in the designated slot position of a compatible 3500 rack.
• Confirm redundant power supply availability before system startup.
• Route tachometer signal cables separately from high-voltage switching and motor power conductors.
• Maintain cable shielding and terminate shields according to the machinery protection system grounding practice.
• Verify transducer output signals and module input response during commissioning.
• Perform functional trip logic testing before placing the overspeed protection system into service.
