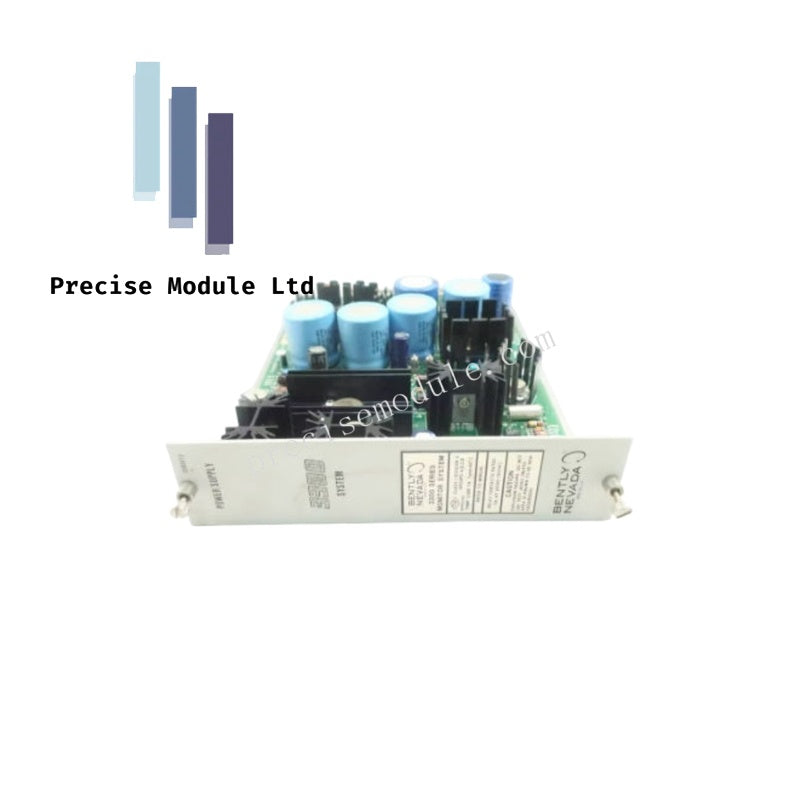

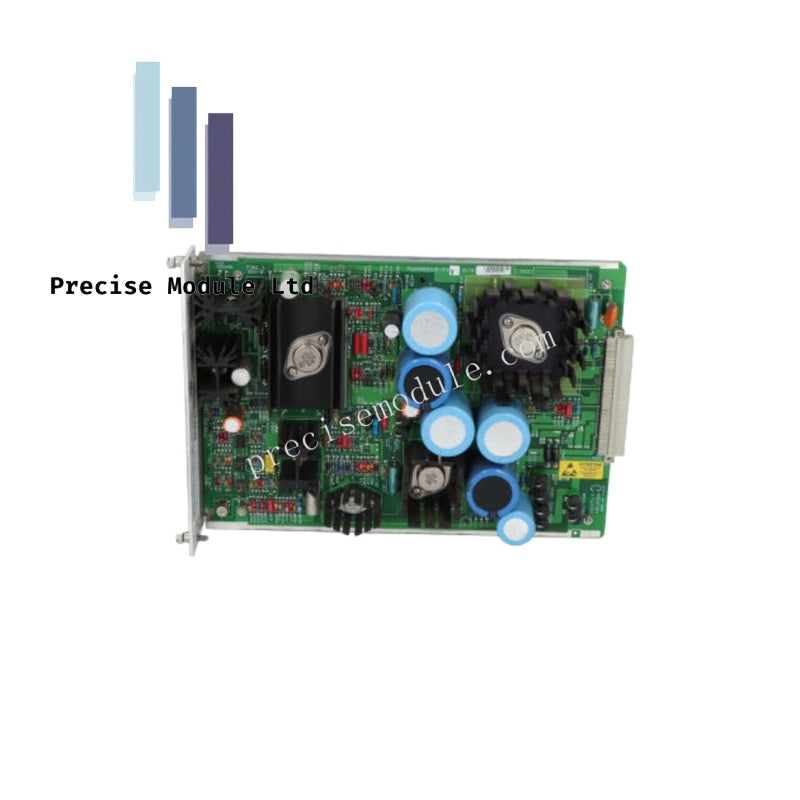

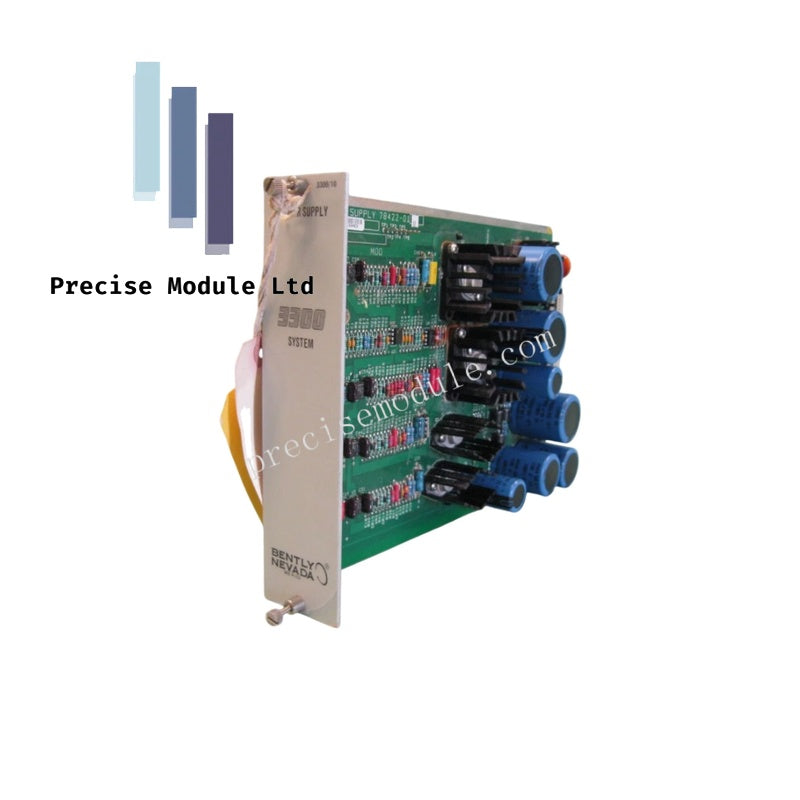

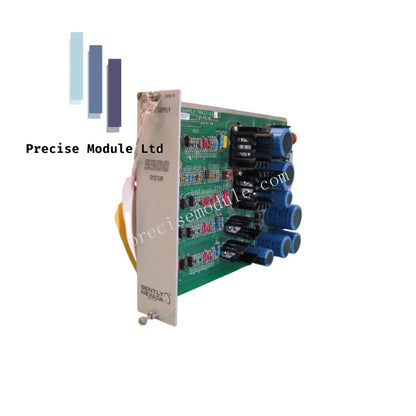

Bently Nevada 3300/12 Power Supply Module

Bently Nevada 3300/12 Power Supply Module

The Bently Nevada 3300/12, also cataloged as the 3300/12 Power Supply Module, operates as a dedicated hardware component for AC to DC power conversion and regulation within Bently Nevada 3300 Monitoring Systems. This unit provides the necessary excitation voltage to support up to 12 monitoring modules and their associated proximity transducer loops, facilitating continuous machinery protection data acquisition.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3300/12 module provides regulated output essential for maintaining precise eddy-current probe scaling throughout the monitoring rack. Proper installation ensures that gap voltage validation (-10 VDC targets) remains stable, preventing measurement drift during high-speed rotor dynamics analysis. The internal line noise filter is integrated to maximize cross-talk suppression, ensuring that the monitored signals accurately reflect shaft displacement and vibration patterns without power-line harmonics.

Frequently Asked Questions

Q: Is redundant power supply configuration supported by the 3300/12?

A: No, the 3300/12 is designed as a single-unit solution for the rack. The system architecture does not require or support a second power supply module for standard operation.

Q: Does the 3300/12 support universal AC input voltage ranges?

A: The module accepts standard industrial inputs of 115 VAC or 220 VAC. Ensure the internal voltage selection jumpers or switches are correctly configured for the specific site utility voltage before energizing the rack.

Field Installation Guidelines

• Mounting: The module must be inserted into position 1 (the leftmost slot) of the 3300 rack to ensure proper connection to the backplane power bus.
• Grounding: Ensure the rack chassis is connected to a dedicated instrument ground. Use appropriate gauge copper wire to minimize resistance and maintain signal integrity for sensitive TSI measurements.
• Wiring: Ensure input power lines are isolated from signal return lines. The internal noise filter requires a clean input source to operate effectively; avoid sharing the supply circuit with high-inductive loads.
• Environment: Ensure the rack is installed in a location with adequate airflow. Do not block the cooling vents, as the module requires ambient circulation to dissipate heat generated during full-load operation.
