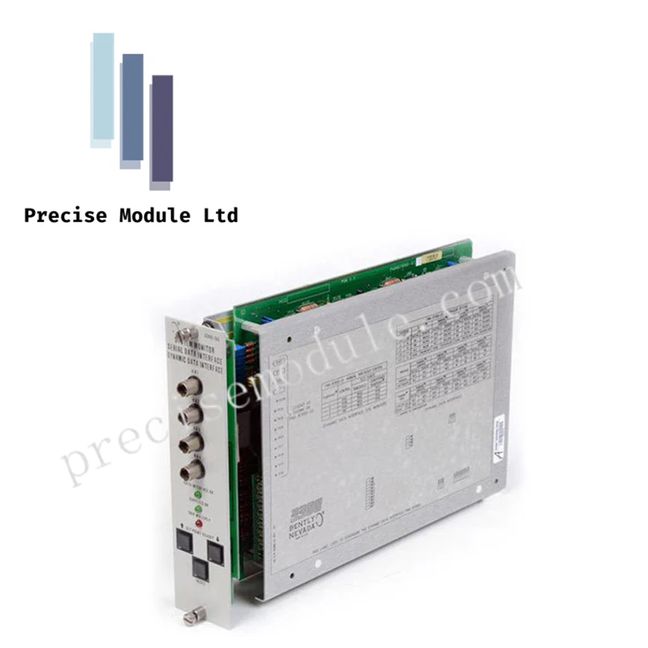

Bently Nevada 3300/16-12-01-02-00-00-00 Dual Channel Proximity Vibration Monitor

Product Description

Overview

The Bently Nevada 3300/16-12-01-02-00-00-00 is a dual-channel eddy current proximity monitor designed for continuous real-time monitoring of rotating machinery. It provides precise measurement of radial vibration and average shaft position, helping detect potential mechanical faults in critical equipment such as turbines, compressors, and large motors. As a member of the legacy 3300 Series, it offers robust, reliable performance in demanding industrial environments.

Key Features

• Dual independent monitoring channels for radial vibration and shaft position
• Front-panel LCD showing numeric values and bar graphs for both channels
• “OK” status circuit with LED indicator for sensor and wiring health
• Buffered front-panel outputs for raw vibration signal diagnostics
• Compact, modular design suitable for rack installation
• Designed to comply with API 670 standards for machinery protection

Technical Specifications

Model

• Bently Nevada 3300/16-12-01-02-00-00-00
• Type: Dual Channel Vibration Monitor

Input

• Sensor Compatibility: 8 mm Proximitor® or standard proximity probes
• Signal Type: Two 3-wire sensors
• Input Impedance: 10 kΩ
• Power Supply: Supplied by 3300 System Power Source

Output

• Analog Recorder Outputs: 4–20 mA or 1–5 Vdc proportional to full-scale range
• Buffered Outputs: Raw, unfiltered signals (200 mV/mil) for diagnostic tools
• Alarm Relays: None (per selected configuration)

Performance

• Accuracy: ±1% of full-scale at 25°C
• Frequency Response: 4 Hz–10 kHz
• Full-Scale Range: 0–10 mils peak-to-peak (0–250 µm)

Environmental

• Operating Temperature: 0°C to +65°C (+32°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: Up to 95% non-condensing
• Dimensions: 5.7 cm × 20.3 cm × 33.0 cm
• Weight: 1 kg (2.2 lbs)

Signal Processing Functions

• Measures radial vibration peak-to-peak displacement
• Tracks sensor gap voltage to confirm linear operation
• First Out capability identifies which channel exceeded setpoints in multi-channel racks

Applications

Ideal for monitoring turbines, compressors, and motors in power generation, petrochemical, and industrial facilities. Provides early warning of excessive vibration or misalignment to prevent unplanned downtime.

FAQ

Q: Can this unit be integrated with modern Bently Nevada systems?
A: Outputs can interface with certain 3500 Series analog inputs using proper scaling.

Q: Does it include alarm relays?
A: This specific configuration does not include relays; monitoring relies on external system logic.

Q: What is the difference between 3300/16 and 3300/15?
A: The 3300/16 adds shaft gap monitoring and enhanced dual-channel monitoring compared to the 3300/15.
