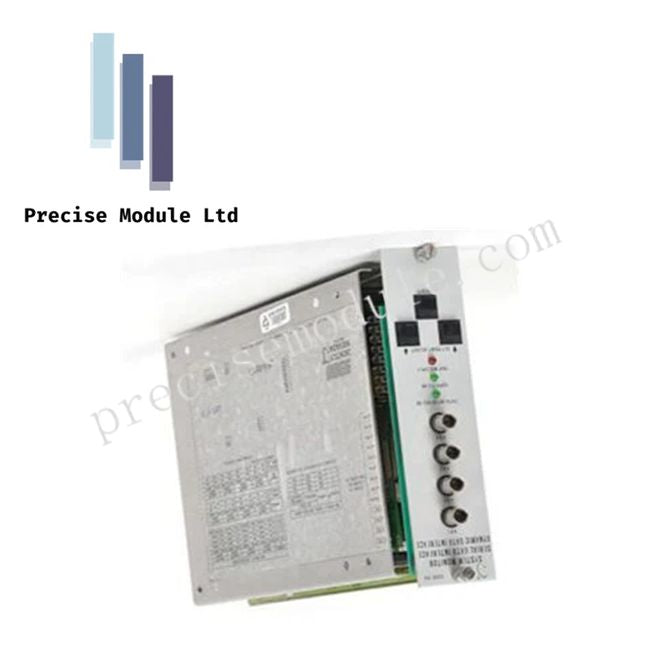

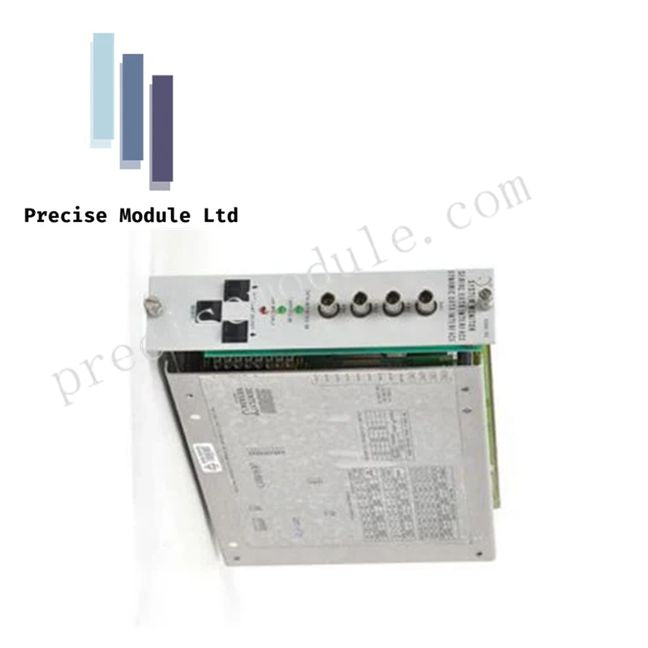

Bently Nevada 3300/16 | 3300/16-12-01-02-01-02-00 | Dual Eddy Current Monitor

Product Description

Overview
The Bently Nevada 3300/16 (Part Number: 3300/16-12-01-02-01-02-00) is a high-performance dual-channel eddy current proximity monitor designed to deliver continuous, real-time measurements of radial vibration and axial position (thrust) for critical rotating machinery, including turbines, compressors, and pumps. This model is a core component of the 3300 Monitoring System and supersedes the 3300/15 by adding radial position gap alarm functionality.

Key Features

• Dual independent channels for separate signal monitoring

• Real-time LCD display with digital readouts and bar graph visualization

• Integrated alert and danger relays for triggering machine trips or alarms

• OK status LED and relay ensure sensor and cabling integrity

• Accepts standard 3-wire Proximitor sensor inputs

Technical Specifications

Input/Output

• Sensor Input: Two 3-wire Proximitor channels

• Input Impedance: 10 kΩ

• Recorder Outputs: 4–20 mA or 1–5 Vdc proportional to full-scale range

• Buffered Output: Two front-panel coax connectors and back terminal strips for unfiltered raw vibration signals

Relays

• Alert Relay: One per channel or shared

• Danger Relay: One per channel or shared

• Contact Rating: 5A @ 120/240 Vac or 5A @ 28 Vdc

Performance

• Accuracy: ±1% of full-scale at +25°C (+77°F)

• Frequency Response: 4 Hz – 10 kHz

• Full-Scale Range: 0–10 mils pp (0–250 µm pp)

Environmental Conditions

• Operating Temperature: 0°C – +65°C (+32°F – +150°F)

• Storage Temperature: -40°C – +85°C (-40°F – +185°F)

• Humidity: 95% non-condensing

Physical Specifications

• Rack Space: Occupies one standard rack unit (any slot except positions 1 and 2 reserved for Power Supply and System Monitor)

• Weight: 1 kg (2.2 lbs)

Applications
Designed for continuous monitoring of critical rotating equipment such as turbines, compressors, and pumps. Provides real-time radial vibration and shaft position (gap) monitoring for predictive maintenance and fault detection.

FAQ
Q: What is the main difference between 3300/16 and 3300/15?
A: The 3300/16 adds radial position gap alarms while maintaining all vibration monitoring functions of the 3300/15.

Q: Which Proximitor sensors are compatible?
A: Supports 7200 series and 3300 8mm Proximitor sensors, with 200 mV/mil sensitivity.
