Bently Nevada 3300 XL 330100-50-00 Proximity Probe Sensor

Product Description

Overview

The Bently Nevada 330100-50-00 is a precision 8 mm proximity probe from the 3300 XL series, engineered for non-contact measurement of shaft vibration and position. Designed for high-reliability industrial applications, it provides a voltage output proportional to the distance between the probe tip and a conductive target, capturing both static position and dynamic vibration.

This specific configuration, -50-00, features a total cable length of 5.0 meters and standard agency approvals for general-purpose industrial environments. Its rugged construction and advanced eddy-current sensing make it suitable for demanding machinery such as turbines, compressors, and high-speed motors.

System Components

• 3300 XL 8 mm Probe: Measures shaft distance and converts it into a voltage signal for static and dynamic monitoring.

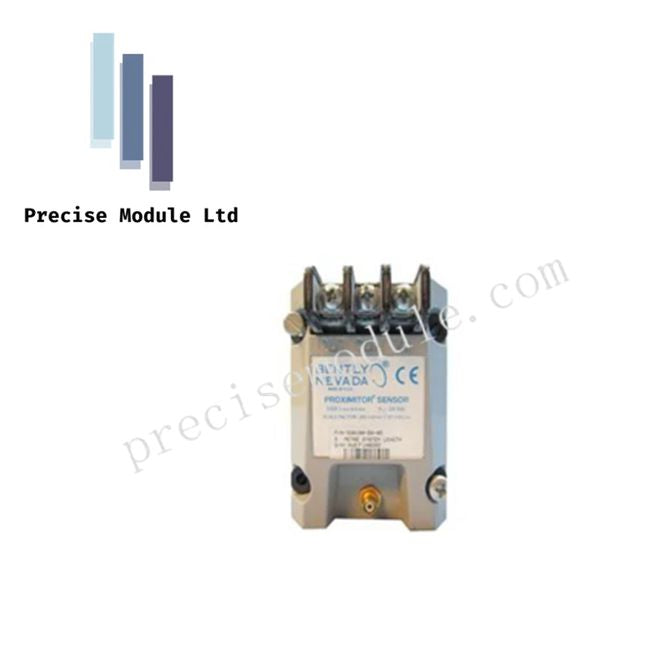

• 3300 XL Proximitor Sensor: Processes the probe output to provide reliable vibration and position data, with enhanced immunity to electrical interference.

• 3300 XL Extension Cable (Optional): Connects the probe to the Proximitor if a different total system length is required.

Key Features

High-Precision Linear Measurement

• Linear output range: 2.0 mm (80 mils)

• Standardized sensitivity: 7.87 V/mm (200 mV/mil) when paired with 3300 XL Proximitor

• Supports radial vibration and axial position monitoring

Rugged Construction

• Tip material: Polyphenylene Sulfide (PPS) for chemical and moisture resistance

• Gold-plated ClickLoc™ connectors for secure, corrosion-resistant connections

• Integrated fluid seal prevents contamination along the sensor tip

Thermal and Electrical Stability

• Operating temperature: -51°C to +177°C (-60°F to +351°F)

• High immunity to RFI/EMI, suitable for noisy industrial environments

• Maintains accuracy under wide temperature variations

Ease of Installation and Interchangeability

• Fully compatible with 3300 XL Proximitor of matching 5.0-meter length

• Can be replaced without system recalibration

• Compact 8 mm probe fits into confined machinery spaces

Specifications Table

Applications

• Vibration and position monitoring for turbines, compressors, and motors

• Keyphasor reference and speed measurement

• Industrial machines requiring compact sensor integration and high thermal stability

FAQ

Q: Can the 330100-50-00 probe be used with an extension cable?
A: Yes, but the Proximitor must be configured to account for the total system length to maintain accuracy.

Q: What environments are suitable for this sensor?
A: It operates reliably in extreme temperatures and high-EMI industrial environments.

Q: Is system recalibration required when replacing the probe?
A: No, the 3300 XL series allows direct replacement without recalibration if the total cable length remains 5.0 meters.
