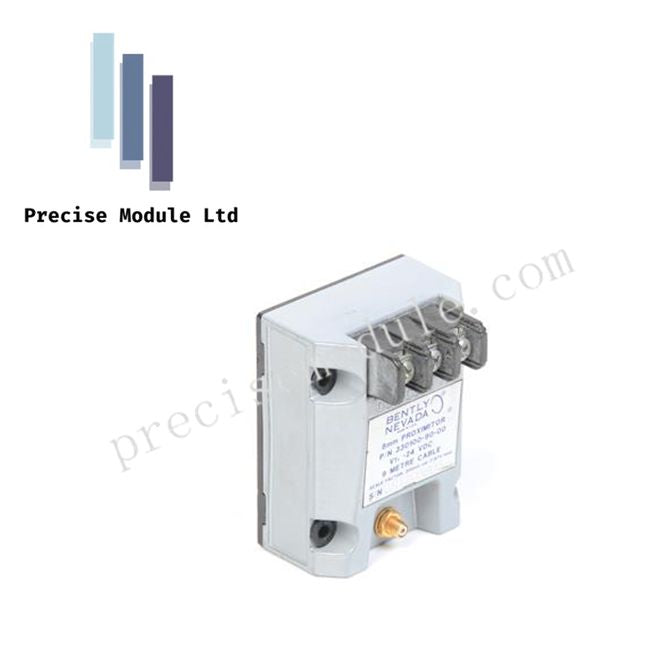

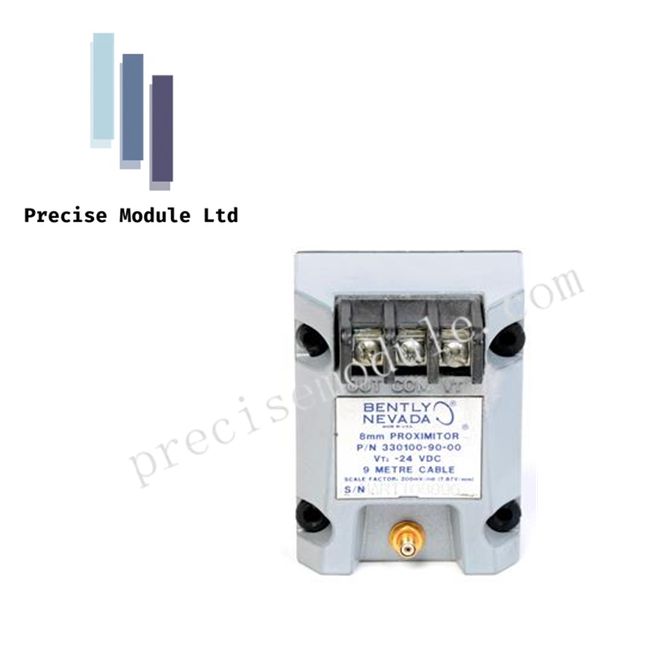

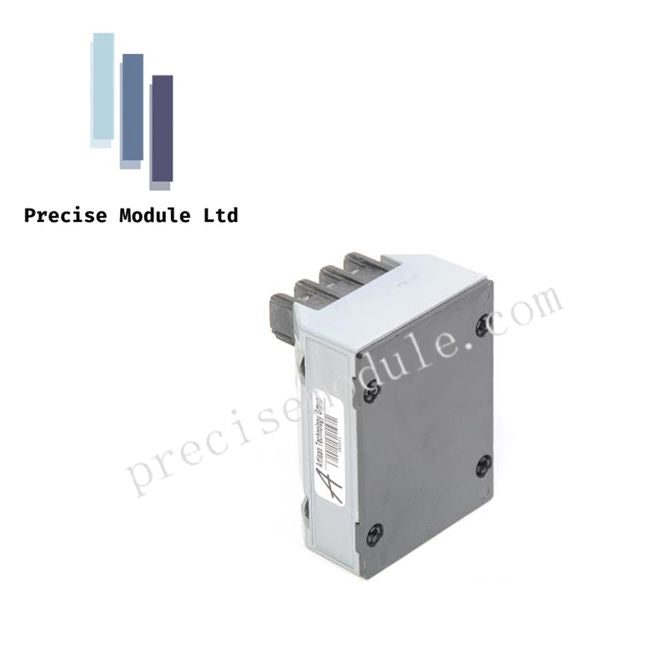

Bently Nevada 3300 XL 330100-90-00 Proximity Probe Sensor

Product Description

Overview

The Bently Nevada 330100-90-00 is an industrial-grade 8 mm proximity sensor from the 3300 XL series, engineered for precise shaft position and vibration monitoring. Designed for high-reliability operation in extreme industrial environments, it measures both static distances (shaft position) and dynamic displacements (vibration) without physical contact.

This eddy-current sensor converts variations in a magnetic field into a linear voltage signal, delivering highly accurate readings for critical machinery applications. The "-90-00" configuration indicates a total cable length of 9 meters and a standard, unarmored connector.

Key Technical Features

Linear Measurement Accuracy

• Linear output range: 2.0 mm (80 mils)

• Scale factor: 7.87 V/mm (200 mV/mil) with 3300 XL Proximitor

• Provides precise detection of minute shaft movements

Mechanical and Thermal Reliability

• Tip material: High-performance Polyphenylene Sulfide (PPS) resistant to oils, lubricants, and industrial solvents

• Operating temperature: -51°C to +177°C (-60°F to +351°F)

• Standard mounting thread: 3/8-24

Vibration and Position Monitoring

• Radial vibration measurement for bearing orbital motion

• Axial displacement monitoring for shaft end-play

• Keyphasor® capability for speed reference and diagnostic signals

System Integration

• Compatible with 3300 XL Proximitor sensors matching cable length

• Interchangeable probe, extension cable, and Proximitor without custom calibration

• Cable length of 9 meters ensures correct signal scaling and system performance

Specifications Table

Applications

• Vibration and position monitoring in fluid-film bearing machinery

• Shaft speed measurement and Keyphasor reference signals

• Industrial turbines, compressors, and high-speed rotating equipment

FAQ

Q: Can the 330100-90-00 probe be used with a shorter Proximitor?
A: No, matching cable length is critical. Using a 5-meter Proximitor will result in calibration errors.

Q: Is the probe compatible with other 3300 XL probes?
A: Yes, probes, extension cables, and Proximitors are interchangeable if total system length is maintained.

Q: How should the probe tip and cable be maintained?
A: Keep the tip clean from debris and secure the cable to prevent mechanical noise from vibration.
