Bently Nevada 330104-00-08-90-02-05 – 8 mm Proximity Probe

Manufacturer: Bently Nevada
Product No.: 330104-00-08-90-02-05
Condition：in Stock
Product Type: 90° coaxial connector
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

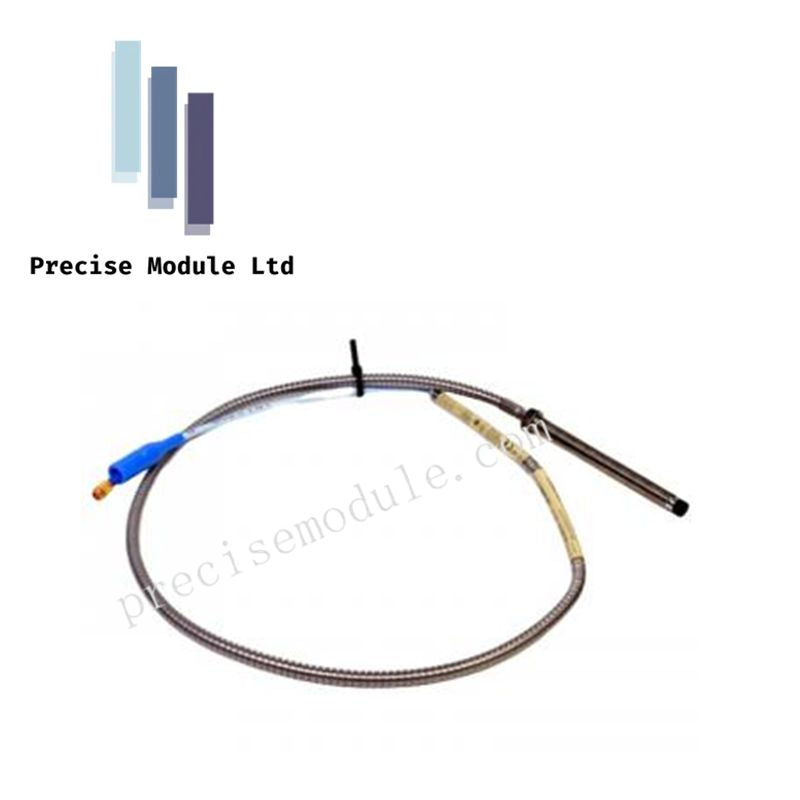

Bently Nevada 330104-00-08-90-02-05 – 3300 XL 8 mm Proximity Probe

Overview

The Bently Nevada 330104-00-08-90-02-05 is part of the 3300 XL 8 mm proximity transducer system, designed for accurate vibration and position measurements in rotating machinery. It relies on eddy current technology to deliver precise non-contact displacement detection, making it essential for machine protection, predictive maintenance, and condition monitoring.

With a rugged design, hermetic sealing, and high corrosion resistance, the 330104-00-08-90-02-05 probe ensures long-term stability and durability in demanding industrial environments such as oil & gas, power generation, and chemical processing.

Technical Specifications

Feature	Specification
Model Number	330104-00-08-90-02-05
System Compatibility	Bently Nevada 3300 XL series
Probe Tip Diameter	8 mm
Cable Length	0.8 meters (00-08)
Connector Type	90° coaxial connector
Extension Cable Length	2 meters (02)
Proximitor Model	3300 XL Proximitor Sensor (05)
Measurement Range	±2 mm (80 mils)
Linear Range	0.25 to 2.0 mm (10 to 80 mils)
Sensitivity	7.87 mV/µm (200 mV/mil) ±5%
Frequency Response	0 to 10 kHz
Operating Temperature	−35°C to +120°C
Environmental Protection	Hermetically sealed, corrosion-resistant
Mounting Thread	1/4-28 UNF or M8 × 1 (depending on configuration)
Applications	Shaft vibration, axial position, thrust bearing monitoring
