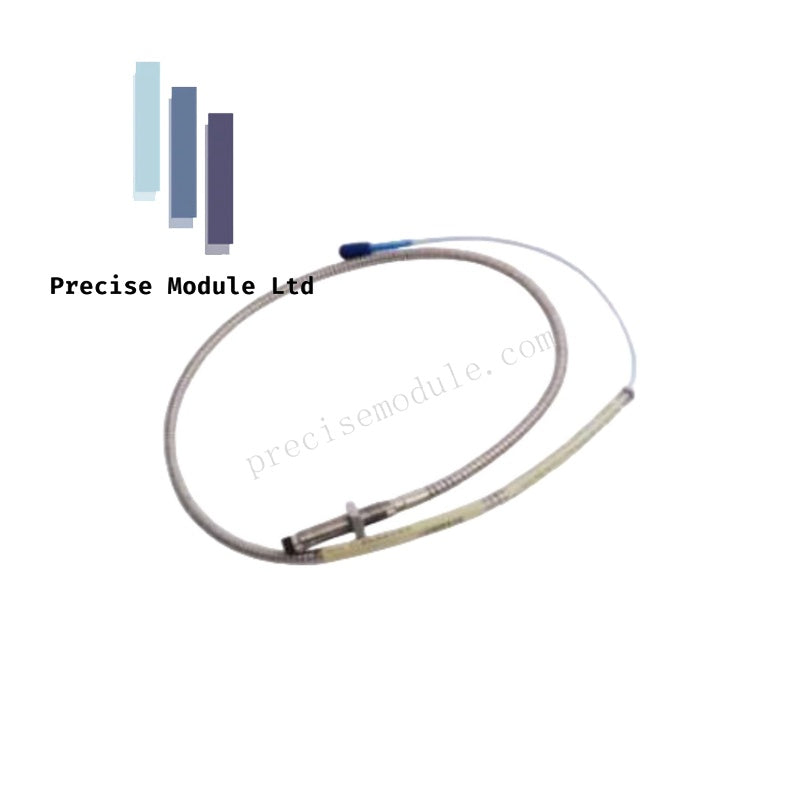

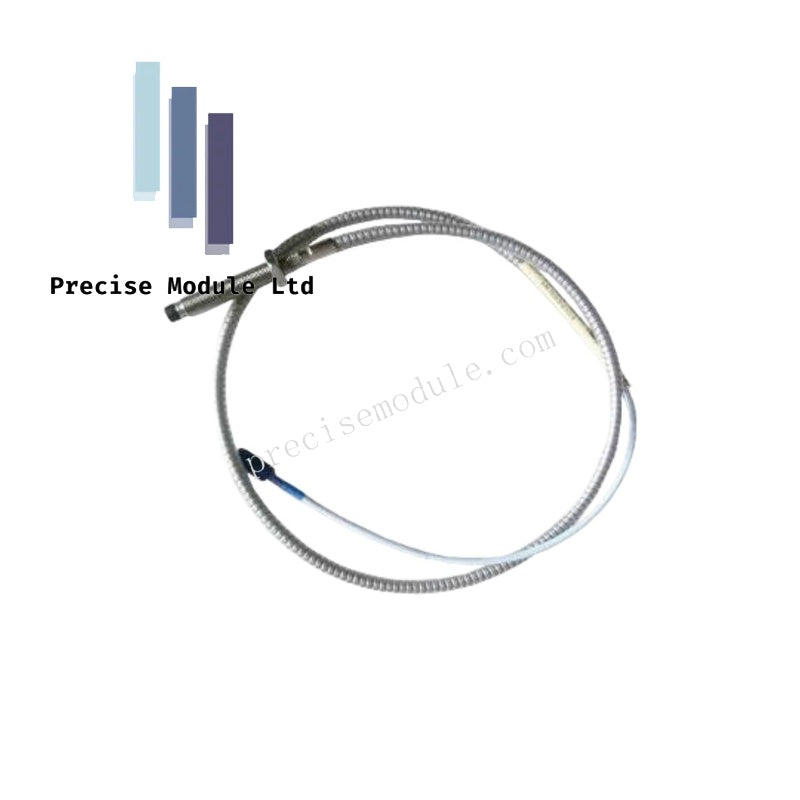

Bently Nevada 330104-00-09-10-02-00 Proximity Probe

Bently Nevada 330104-00-09-10-02-00 Proximity Probe

The Bently Nevada 330104-00-09-10-02-00, also cataloged as the 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for displacement sensing within eddy-current proximity transducer systems. This probe provides a continuous output voltage proportional to the distance between the probe tip and a conductive surface, facilitating the measurement of static position and dynamic vibration characteristics on fluid-film bearing machinery.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330104-00-09-10-02-00 probe is engineered to ensure consistent eddy-current probe scaling, a requirement for accurate rotor dynamics interpretation. When integrated into the 3300 XL system, it maintains linearity and thermal stability compliant with API 670 standards. The component supports full interchangeability, removing the requirement for bench calibration when replacing individual probes, extension cables, or Proximitor sensors. Proper installation ensures the transducer maintains its -10 VDC target midpoint, providing an optimal range for monitoring shaft centerline and vibration amplitude.

Frequently Asked Questions

Q: Is the 330104-00-09-10-02-00 probe compatible with non-XL 3300 system components?

A: Yes, the 3300 XL 8 mm system is backward compatible and interchangeable with legacy 3300 series 5 mm and 8 mm transducer components, facilitating upgrades without replacing the entire signal chain.

Q: Does this probe require specific calibration after installation?

A: No. The 3300 XL series is designed for total system interchangeability; components are calibrated to a standard output, allowing for field replacement without additional bench-level calibration.

Field Installation Guidelines

1. Mounting Geometry: Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance. The probe tip must be installed with sufficient clearance from the target surface to avoid physical contact during maximum shaft displacement.

2. Cable Routing: Route the miniature coaxial cable away from high-voltage lines and sources of electromagnetic interference. Use protective conduit if the installation environment presents risks of physical damage or chemical exposure.

3. Connection Integrity: Utilize the ClickLoc connector to ensure a secure, low-impedance electrical interface. Verify that the connector interface is clean and free of contaminants before mating to prevent signal attenuation.

4. Gap Validation: During commissioning, use a digital multimeter to measure the gap voltage. Adjust the probe position until the target gap voltage is achieved per the machine configuration requirements, typically -10 VDC for standard installations.
