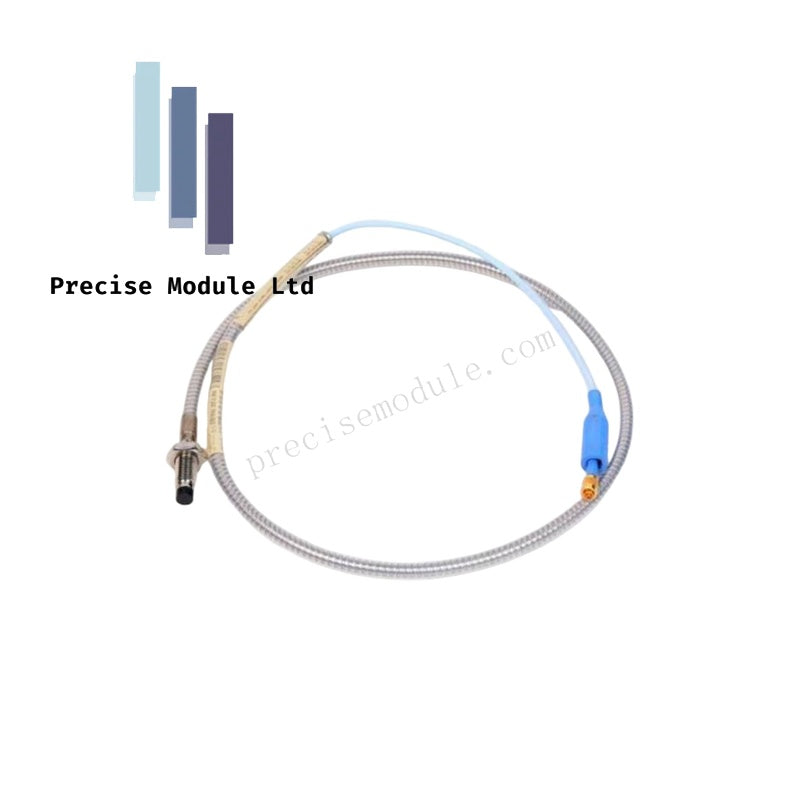

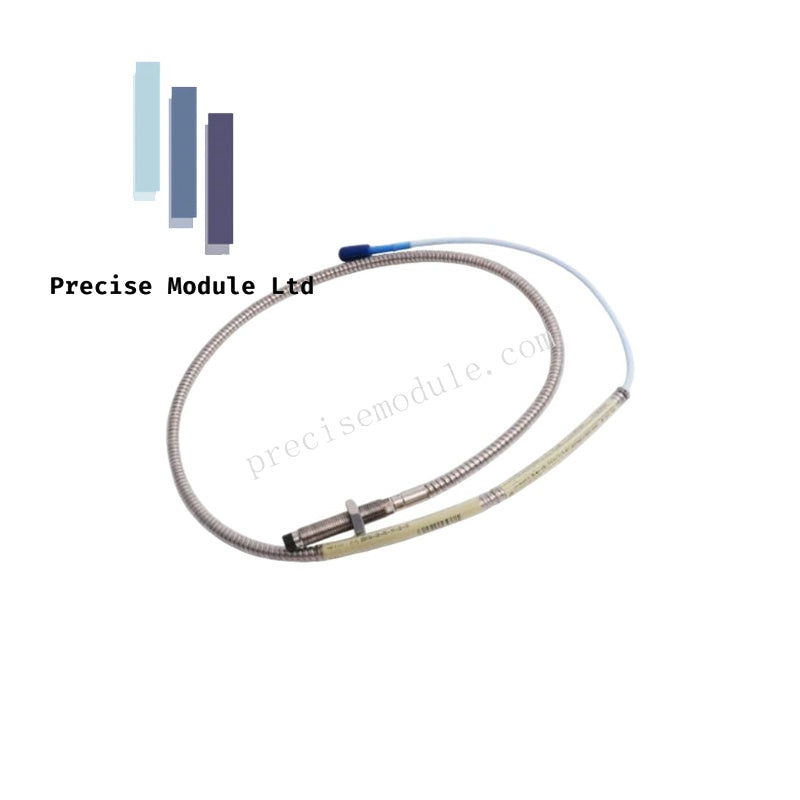

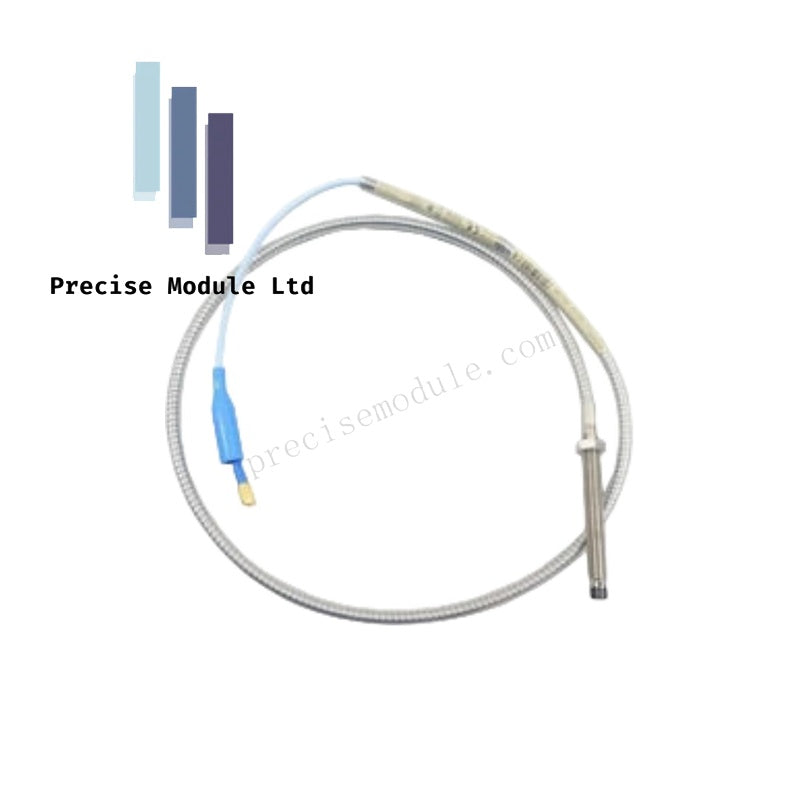

The Bently Nevada 330104-00-18-10-02-05, also cataloged as the 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for displacement sensing within eddy-current proximity transducer systems. This probe provides a continuous output voltage proportional to the distance between the probe tip and a conductive surface, facilitating the measurement of static position and dynamic vibration characteristics on fluid-film bearing machinery.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330104-00-18-10-02-05 probe is engineered to ensure consistent eddy-current probe scaling, a requirement for accurate rotor dynamics interpretation. When integrated into the 3300 XL system, it maintains linearity and thermal stability compliant with API 670 standards. The component supports full interchangeability, removing the requirement for bench calibration when replacing individual probes, extension cables, or Proximitor sensors. Proper installation ensures the transducer maintains its -10 VDC target midpoint, providing an optimal range for monitoring shaft centerline and vibration amplitude.

Frequently Asked Questions

Q: Does the inclusion of CSA/ATEX/IECEx approvals affect the electrical performance of the probe?

A: No. The approvals certify that the probe meets safety standards for hazardous area installations; the fundamental electrical scaling and signal output characteristics remain identical to non-approved versions.

Q: Can this probe be interchanged with previous generation 3300 series probes?

A: Yes. The 3300 XL system components are backward compatible with non-XL 3300 series 5 mm and 8 mm transducer systems, allowing for seamless integration during maintenance cycles.

Field Installation Guidelines

1. Mounting Geometry: Ensure the probe is installed in a rigid, non-vibrating bracket. The probe tip must be set with adequate clearance to prevent contact with the shaft at the maximum expected vibration or displacement excursion.

2. Cable Management: Protect the miniature coaxial cable from physical strain. Use dedicated conduit or cable trays to prevent damage from industrial fluids or accidental mechanical impact.

3. Connector Security: Utilize the ClickLoc mechanism to ensure a vibration-resistant connection. Verify that no contaminants are present at the interface to prevent impedance mismatches or signal degradation.

4. Electrical Verification: Measure the gap voltage between the probe tip and the target using a high-impedance digital multimeter. Confirm that the reading aligns with the expected -10 VDC midpoint for the specific machine application prior to operation.
