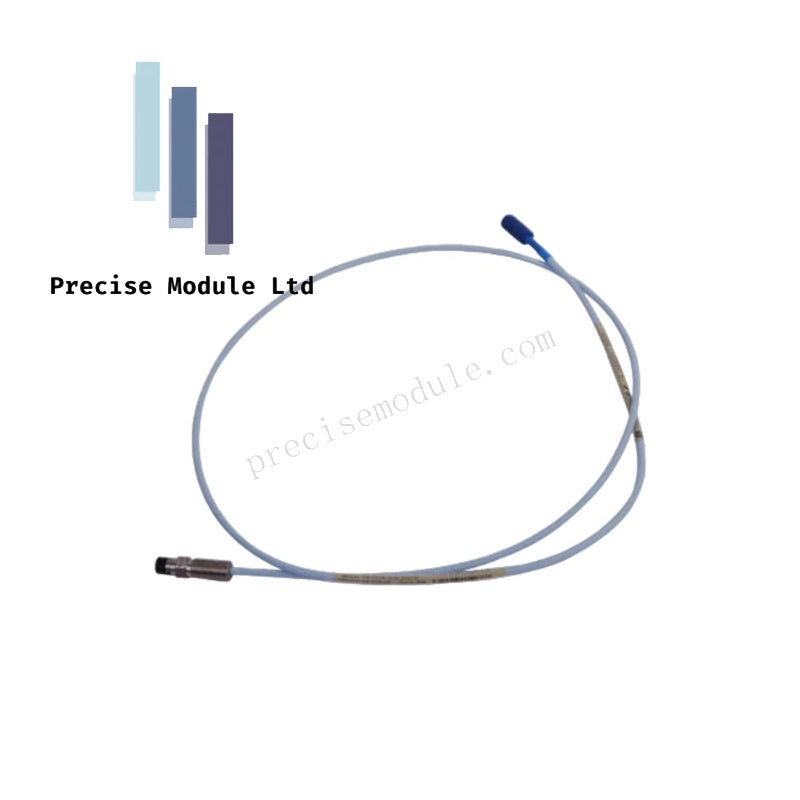

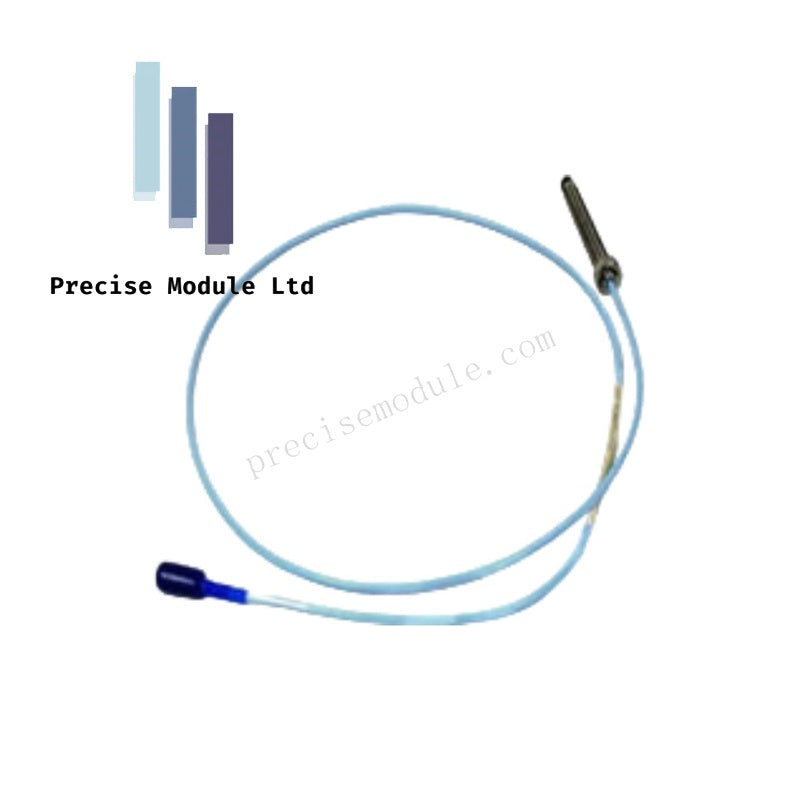

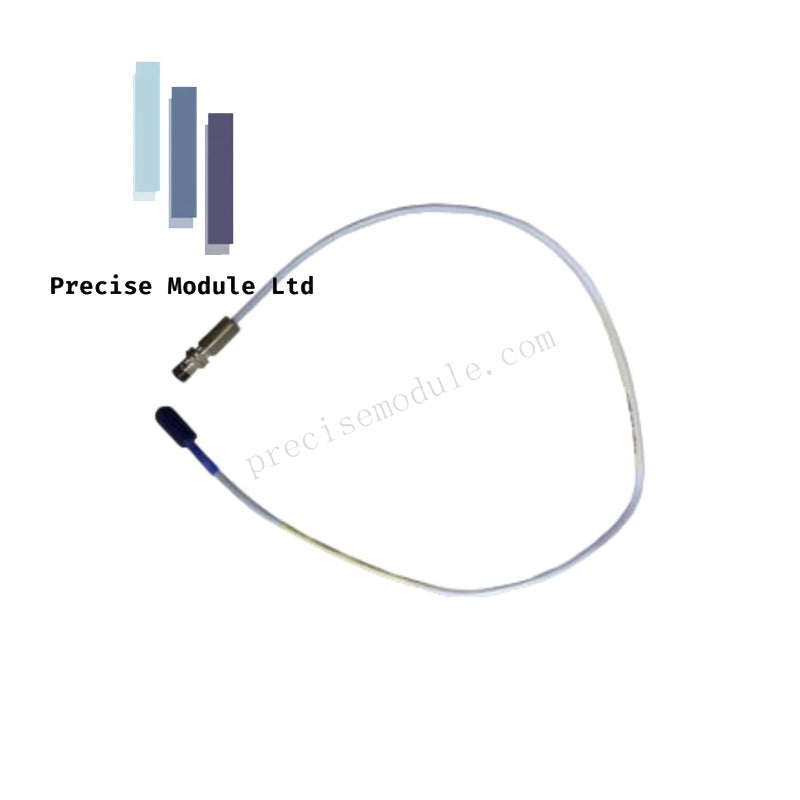

Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330106-05-30-05-02-00, also cataloged as the 330106-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe, operates as a dedicated hardware component for eddy-current displacement measurement within the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Measurement

The Bently Nevada 330106-05-30-05-02-00 is a 3300 XL 8 mm reverse mount probe component used with a complete 3300 XL 8 mm Proximity Transducer System. The system consists of a 3300 XL 8 mm probe, 3300 XL extension cable, and 3300 XL Proximitor Sensor.

The transducer system provides an output voltage proportional to the distance between the probe tip and the conductive target surface. It supports measurement of both static position and dynamic vibration values for rotating machinery applications.

The 3300 XL 8 mm system is configured for fluid-film bearing machine vibration measurement, shaft position monitoring, Keyphasor reference applications, and speed measurement. The probe design supports interchangeability with compatible 3300 XL system components without individual probe, cable, and Proximitor Sensor matching or bench calibration.

Proximity Transducer System Compatibility

The 3300 XL 8 mm Proximity Transducer System complies with API 670 mechanical configuration, linear range, accuracy, and temperature stability requirements when configured as a standard 5 meter system.

The 330106-05-30-05-02-00 probe supports backward compatibility with selected non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility allows integration with existing monitoring configurations where mounting space limitations require alternative probe dimensions.

Frequently Asked Questions

Q: What measurement principle is used by the 330106-05-30-05-02-00 probe?
A: The probe operates using eddy-current proximity measurement technology to detect displacement between the probe tip and a conductive target.

Q: What components are required to form a complete 3300 XL 8 mm Proximity Transducer System?
A: The system consists of a 3300 XL 8 mm probe, 3300 XL extension cable, and 3300 XL Proximitor Sensor.

Q: What type of connector is used on this probe configuration?
A: The probe configuration uses a Miniature ClickLoc coaxial connector.

Field Installation Guidelines

Install the 330106-05-30-05-02-00 probe according to the applicable Bently Nevada 3300 XL proximity transducer installation procedures.

Ensure the probe mounting location provides stable mechanical alignment with the conductive measurement target. Verify probe gap adjustment and signal scaling before commissioning the monitoring channel.

Route the coaxial cable away from high-current wiring, switching circuits, and sources of electromagnetic interference. Maintain proper cable support and avoid mechanical stress on the connector interface.

Confirm compatibility between the probe, extension cable, and Proximitor Sensor before system startup. Verify vibration and position measurement channels through the connected monitoring system.
