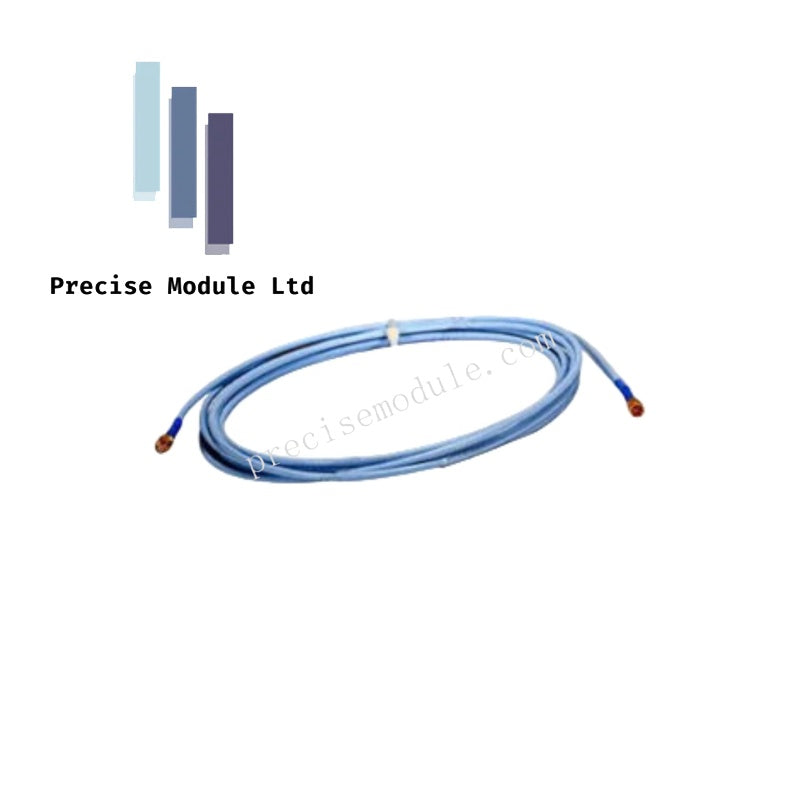

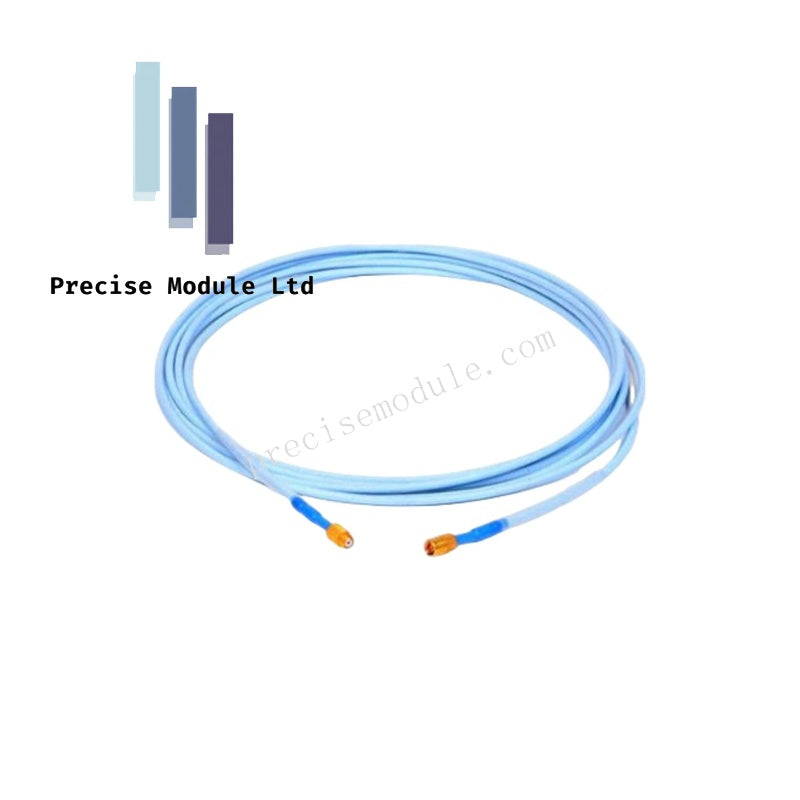

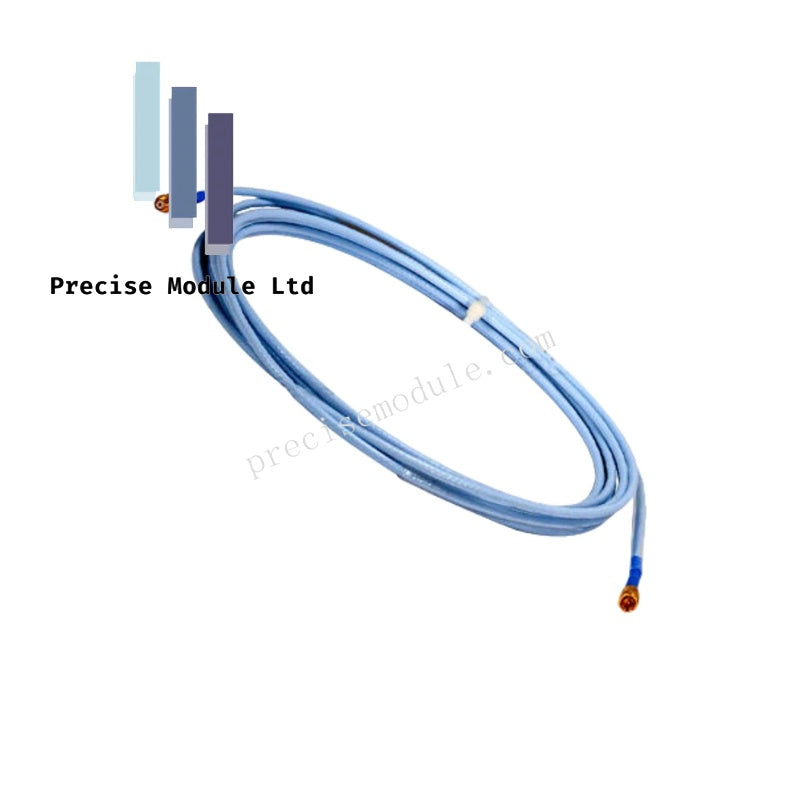

Bently Nevada 330130-040-01-00 3300 XL Standard Extension Cable

Bently Nevada 330130-040-01-00 3300 XL Standard Extension Cable

The Bently Nevada 330130-040-01-00 serves as the primary 3300 XL Standard Extension Cable utilized to connect 3300 XL proximity probes and Proximitor Sensors across Bently Nevada eddy-current transducer system platforms. The cable provides signal transmission between transducer components for non-contact vibration and displacement measurement applications.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 3300 XL Standard Extension Cable is used as part of the complete 3300 XL proximity transducer system consisting of a compatible probe, extension cable, and Proximitor Sensor. The cable maintains the electrical characteristics required for accurate eddy-current signal transmission between the probe and sensor.

Proper probe scaling depends on the complete matched transducer configuration. During installation, gap voltage validation is performed to confirm correct probe operating position and signal response. Cable routing, connector installation, and mechanical protection must be maintained to preserve measurement signal integrity.

Frequently Asked Questions

Q: What components are connected by the 330130-040-01-00 extension cable?
A: The cable connects compatible 3300 XL proximity probes with 3300 XL Proximitor Sensors as part of the complete proximity transducer system.

Q: What is the cable length of the 330130-040-01-00 model?
A: The cable length option for this model is 4.0 meters (11.5 feet).

Q: Is the armored cable version suitable for industrial installation environments?
A: The model includes an armored cable configuration designed to provide additional mechanical protection during field installation.

Field Installation Guidelines

• Install the extension cable only with compatible 3300 XL probes and Proximitor Sensors.
• Verify cable length, connector type, and mechanical routing before commissioning.
• Avoid routing transducer cables parallel to high-voltage power cables and variable-frequency drive wiring.
• Secure armored cable sections to prevent excessive mechanical stress at connectors.
• Confirm connector engagement and protection components are properly installed.
• Verify final signal response and gap voltage after completing probe and sensor installation.
