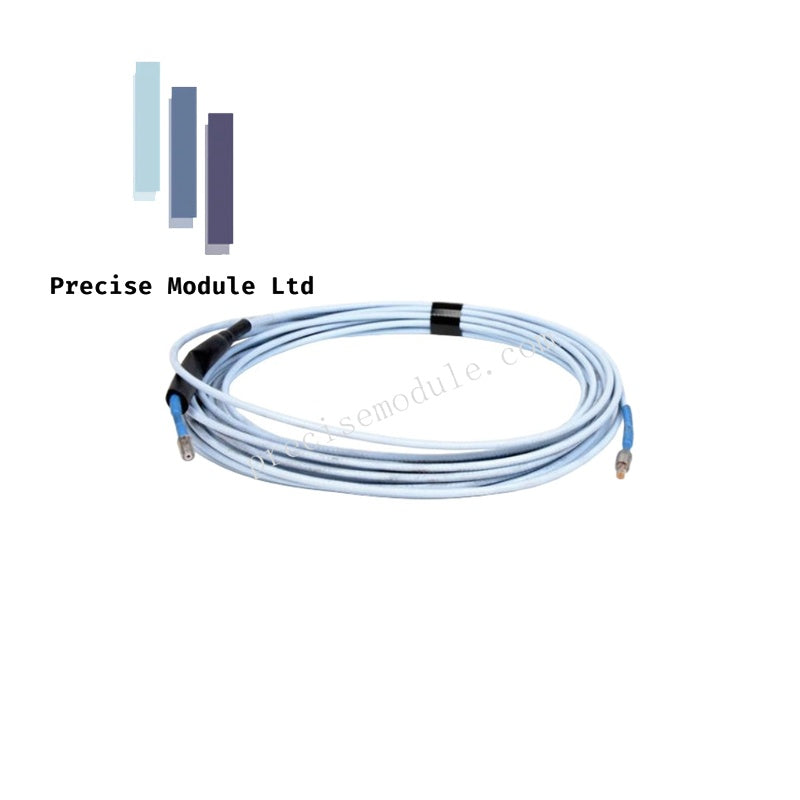

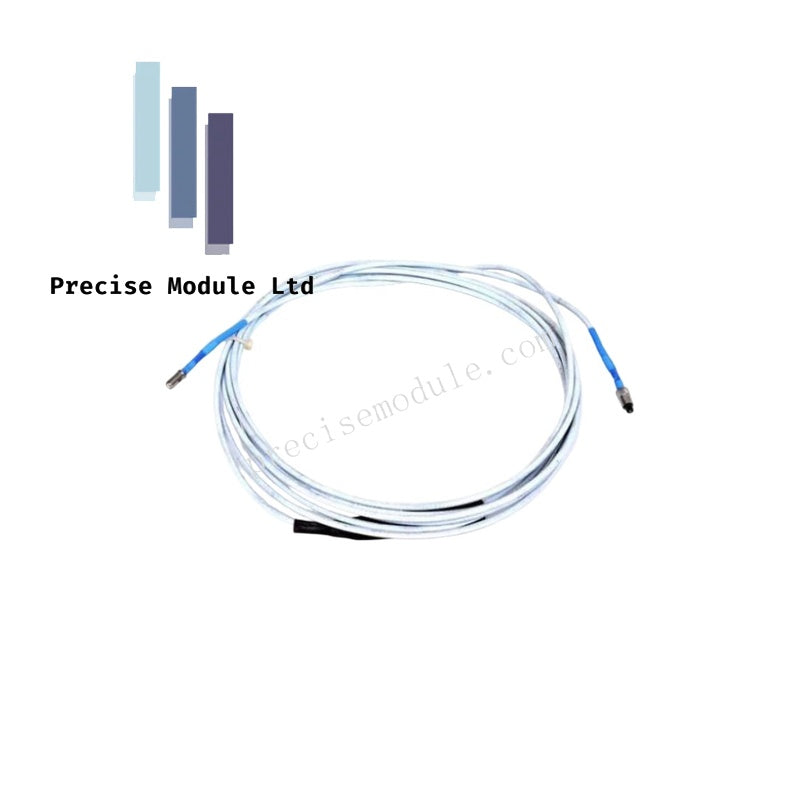

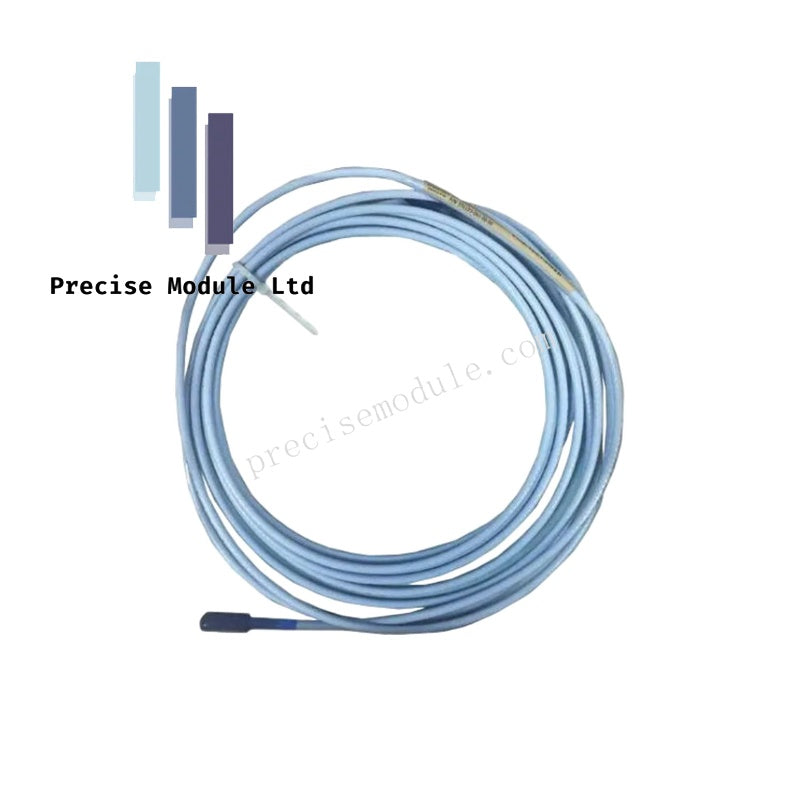

Bently Nevada 330130-045-00-00 Extension Cable

Bently Nevada 330130-045-00-00 Extension Cable

The Bently Nevada 330130-045-00-00, also cataloged as the 3300 XL Standard Extension Cable, operates as a dedicated hardware component for signal transmission within eddy-current proximity transducer systems. This cable serves as the intermediate link between the proximity probe and the Proximitor sensor, ensuring the maintenance of signal integrity and impedance matching necessary for accurate static position and dynamic vibration measurements on fluid-film bearing machinery.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Signal Integrity

The 330130-045-00-00 extension cable is constructed to maintain rigorous electrical specifications, ensuring that the total system capacitance remains within the limits required for accurate eddy-current probe scaling. This precision is vital for rotor dynamics analysis, as any degradation in signal transmission can introduce noise or phase shifts, skewing vibration data. By meeting the stringent requirements of the 3300 XL system, this cable supports total component interchangeability, allowing for field replacement without the need for additional bench calibration or complex system retuning.

Frequently Asked Questions

Q: Does the length of the extension cable impact the Proximitor sensor output?

A: Yes, the system is calibrated for specific total lengths (probe + extension + Proximitor). Using an incorrect cable length may alter the system output and linearity; ensure the replacement matches the total system length specification.

Q: Can this cable be used with non-XL 3300 series components?

A: Yes. The 3300 XL system is designed for backward compatibility, allowing this extension cable to be integrated with legacy 3300 series proximity probes and sensors.

Field Installation Guidelines

1. Connector Inspection: Inspect the coaxial connectors for debris or moisture before mating. A clean, tight connection is critical to prevent impedance discontinuities that can interfere with high-frequency signal transmission.

2. Physical Routing: Ensure the cable is routed away from high-voltage cables and potential sources of electromagnetic interference. Secure the cable using appropriate clamps to prevent abrasion and damage from vibration or contact with sharp edges.

3. Strain Relief: Provide adequate strain relief at the cable entry points to the junction box or probe mount. Excessive tension on the cable can damage the internal conductors and degrade signal performance.

4. System Verification: After replacement, verify the integrity of the connection by checking the gap voltage at the Proximitor output terminals. Confirm the values align with the expected operational range for the machine installation.
