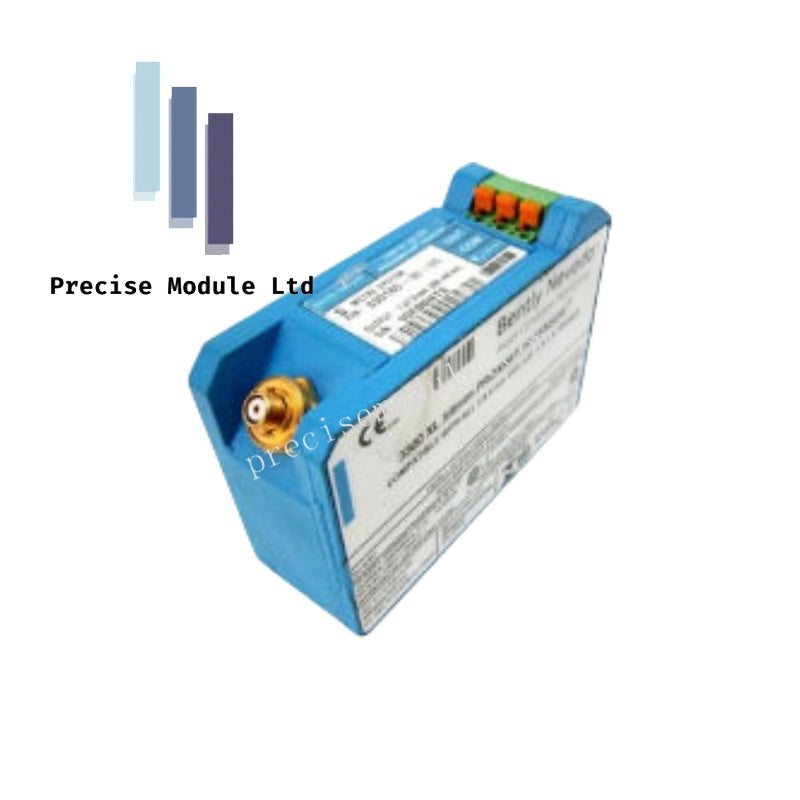

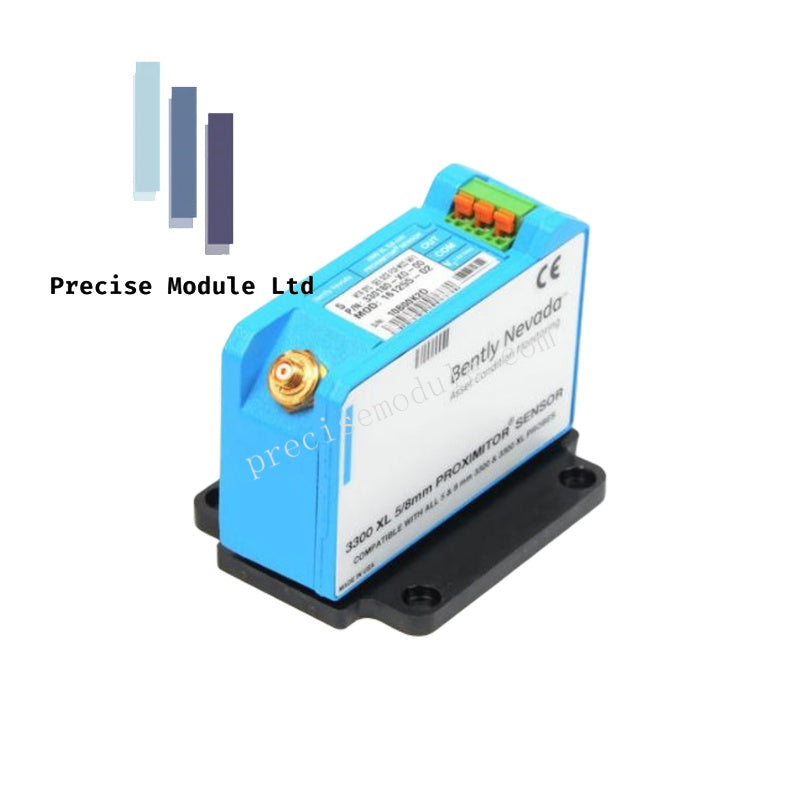

Bently Nevada 330180-X0-00 3300 XL 8 mm Proximitor Sensor

Bently Nevada 330180-X0-00 3300 XL 8 mm Proximitor Sensor

The Bently Nevada 330180-X0-00, also cataloged as the 330180 Proximitor Sensor, operates as a dedicated hardware component for eddy-current signal conditioning within the 3300 XL 8 mm Proximity Transducer System. Working with a compatible probe and extension cable, the sensor produces an output voltage proportional to the distance between the probe tip and a conductive target surface for static and dynamic measurements.

Suffix Breakdown & Model Matrix

The supplied documentation identifies 330180-X0-00 as a catalog configuration within the 3300 XL 8 mm Proximity Transducer System. No official suffix definition for the X0-00 designation is provided; therefore, no suffix interpretation is included.

Hardware Specifications

Gap Voltage Validation and Eddy-Current Signal Conditioning

The Proximitor Sensor conditions the eddy-current signal generated by the proximity probe and produces an output proportional to probe-to-target distance. During commissioning, gap voltage validation is commonly performed with the probe adjusted toward a nominal -10 VDC operating point to confirm operation within the calibrated linear measurement range. The sensor supports both shaft position and vibration measurements while maintaining interchangeability with compatible 3300 XL system components, eliminating the need for individual probe and sensor matching.

Frequently Asked Questions

Q: Can the Proximitor Sensor operate without a compatible probe and extension cable?
A: No. The sensor is designed to operate as part of the complete 3300 XL 8 mm Proximity Transducer System together with a compatible probe and extension cable.

Q: Is component matching required when replacing the Proximitor Sensor?
A: No. The 3300 XL system supports interchangeability of probes, extension cables, and Proximitor Sensors without individual bench calibration or matching.

Q: Which measurements are supported by the complete transducer system?
A: The system supports static position measurement, dynamic vibration measurement, Keyphasor reference, and speed measurement using conductive machine targets.

Field Installation Guidelines

• Install the sensor with the specified compatible 3300 XL probe and extension cable.
• Route transducer cables separately from high-voltage or high-current conductors to minimize electrical interference.
• Maintain proper cable shielding and grounding according to the machinery monitoring installation practice.
• Verify probe gap voltage before placing the monitoring channel into service.
• Confirm that all transducer system components belong to compatible 3300 XL configurations before commissioning.
• Inspect cable connectors and mounting hardware to ensure secure mechanical and electrical connections.
