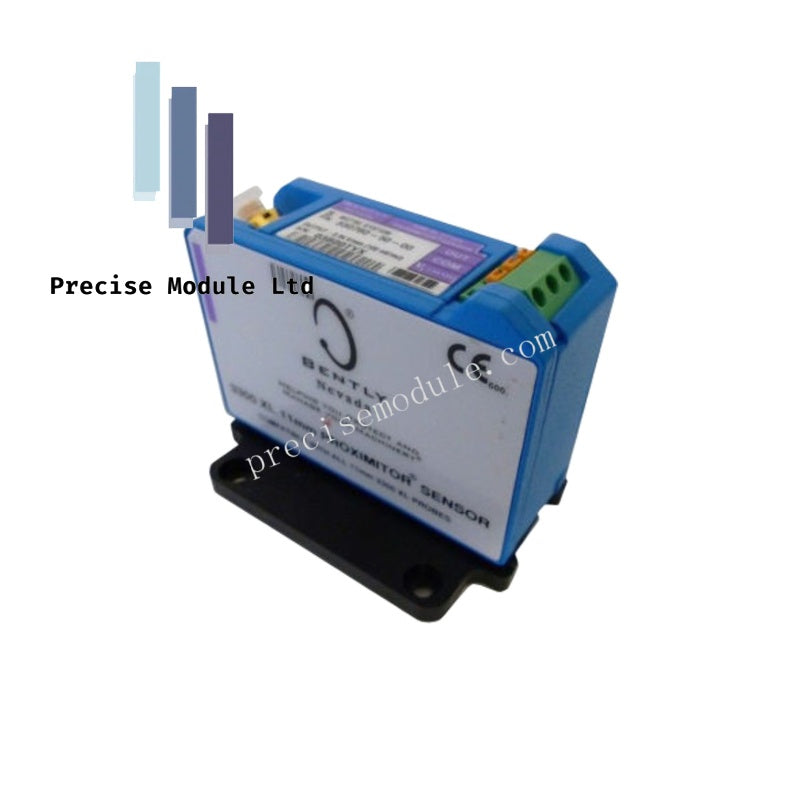

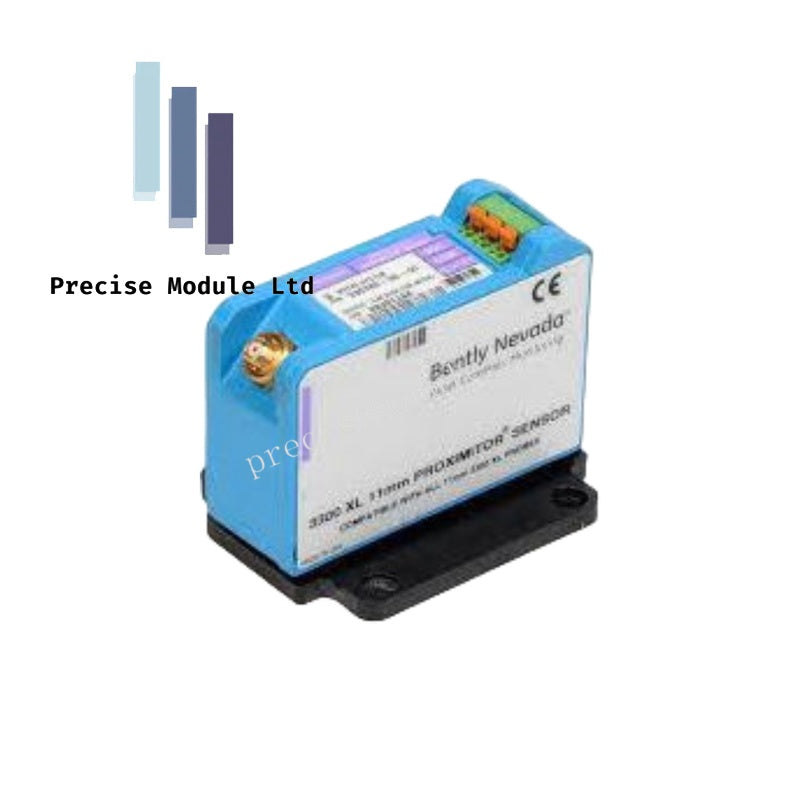

Bently Nevada 330780-50-00 3300 XL 11 mm Proximitor Sensor

Bently Nevada 330780-50-00 3300 XL 11 mm Proximitor Sensor

The Bently Nevada 330780-50-00, also cataloged as the 3300 XL 11 mm Proximitor Sensor, operates as a dedicated hardware component for eddy-current displacement measurement within Bently Nevada 3300 XL transducer systems.

Hardware Specifications

Eddy-Current Measurement and Installation Characteristics

The Bently Nevada 3300 XL 11 mm Proximitor Sensor provides eddy-current displacement measurement for machinery monitoring applications. The sensor output varies according to the distance between the probe tip and the conductive target surface, allowing measurement of shaft position and dynamic vibration signals.

The 3300 XL 11 mm design incorporates RFI/EMI immunity characteristics to maintain signal performance in environments containing high-frequency electrical interference. The sensor supports DIN-rail high-density mounting configurations and traditional panel mounting arrangements.

The SpringLoc terminal strip design enables field wiring connection without special installation tools. The transducer system architecture supports stable probe signal transmission through the extension cable and Proximitor sensor assembly.

Frequently Asked Questions

Q: What type of measurement does the 3300 XL 11 mm Proximitor Sensor provide?
A: The sensor provides eddy-current displacement measurement for shaft position and vibration monitoring applications.

Q: What mounting configurations are supported by the 3300 XL 11 mm Proximitor Sensor?
A: The sensor supports high-density DIN-rail mounting and traditional panel mounting configurations.

Q: What material is used for the probe case?
A: The probe case material is AISI 304 stainless steel.

Field Installation Guidelines

Install the Proximitor Sensor using the specified mounting arrangement and ensure secure mechanical fixation before system commissioning.

Maintain proper separation between transducer wiring and high-current or high-frequency interference sources. Use correct cable shielding and grounding practices to reduce electrical noise effects.

Verify extension cable connections, terminal assignments, and signal polarity before applying power to the monitoring system.

For DIN-rail or panel mounting installations, confirm sufficient clearance for wiring access and maintain proper routing of field cables.
