Bently Nevada 330801-28-05-101-03-02 mm proximity transducer assembly

Manufacturer: Bently Nevada
Product No.: 330801-28-05-101-03-02
Condition：in Stock
Product Type: mm proximity transducer assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

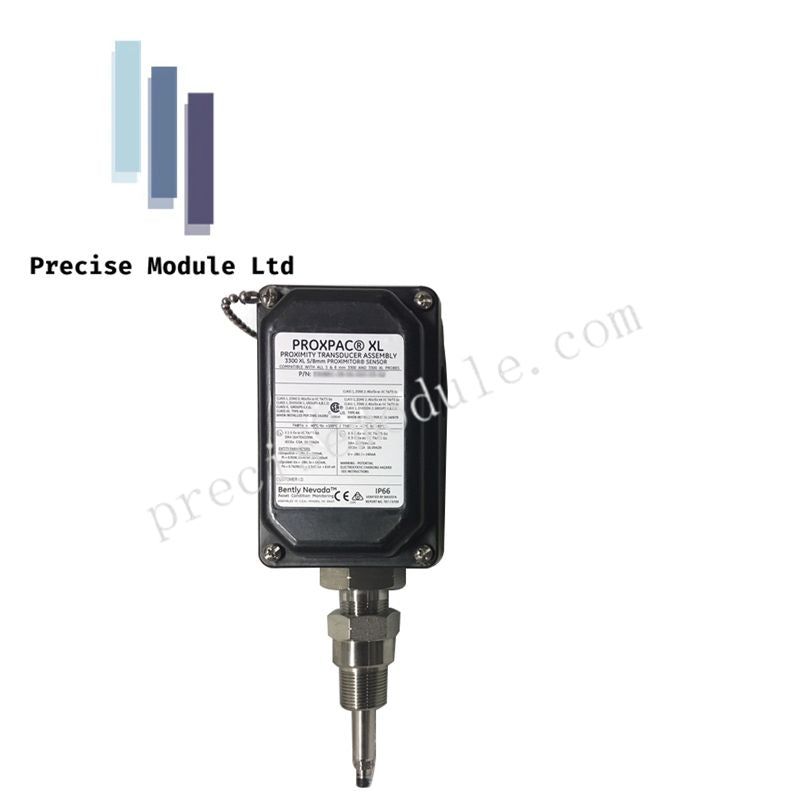

Bently Nevada 330801-28-05-101-03-02 – 8 mm Proximity Transducer Assembly

Overview

The Bently Nevada 330801-28-05-101-03-02 is an advanced 8 mm proximity transducer assembly from the 3300 XL series, designed for precise and continuous monitoring of rotating machinery. It delivers reliable non-contact measurements of shaft displacement, radial vibration, and axial position using eddy current technology.

This assembly combines a 28-foot probe cable, a 5-foot extension cable, and a 3300 XL Proximitor® sensor, ensuring stable performance in turbines, compressors, pumps, and other critical assets that demand API 670 compliant protection.

Technical Specifications

Feature	Specification
Model Number	330801-28-05-101-03-02
System Type	3300 XL 8 mm Proximity Transducer System
Probe Tip Diameter	8 mm
Cable Length	28 feet (≈ 8.5 meters)
Extension Cable	5 feet (≈ 1.5 meters)
Proximitor Model	3300 XL Proximitor Sensor
Thread Type	3/8-24 UNF
Measurement Range	±2 mm typical (system dependent)
Frequency Response	Up to 10 kHz
Operating Temperature	−35°C to +120°C (−31°F to +248°F)
Environmental Protection	FluidLoc and CableLoc sealing
Housing Material	Stainless steel body with PPS tip
Compliance	API 670 machinery protection standard
Country of Origin	CN (China, varies by supplier)
