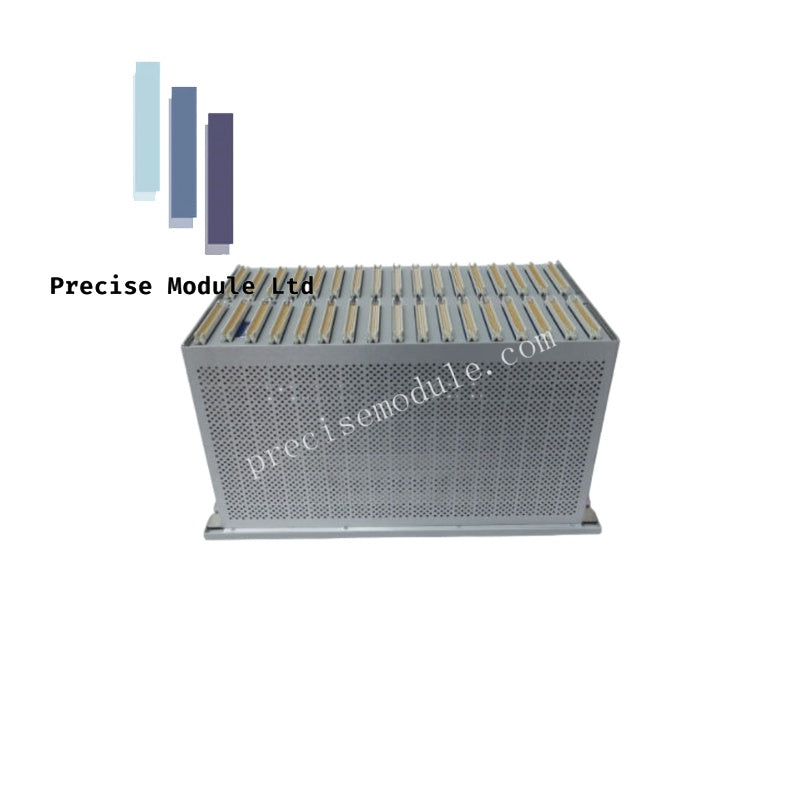

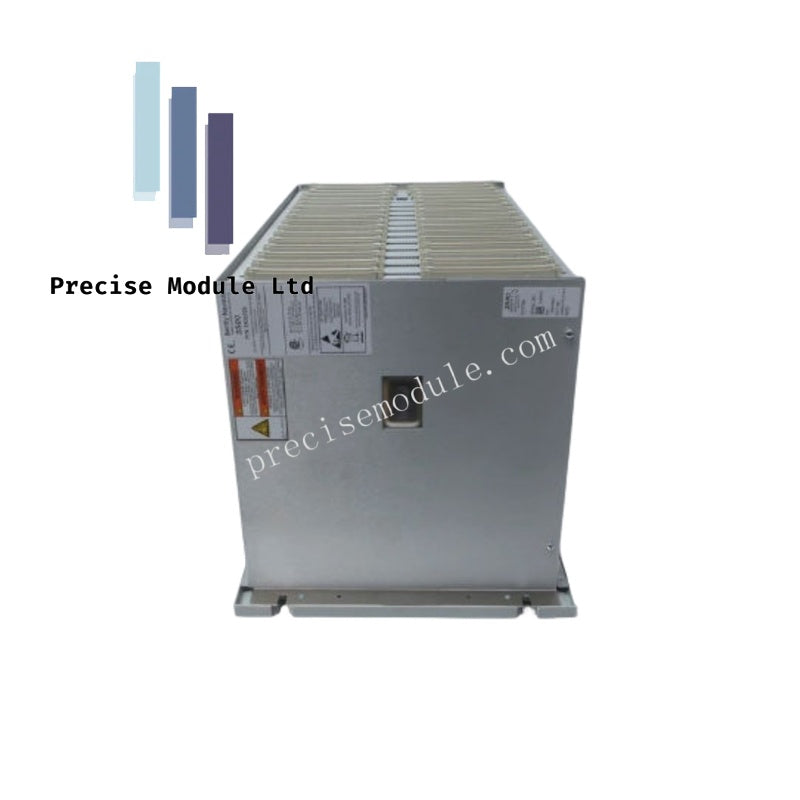

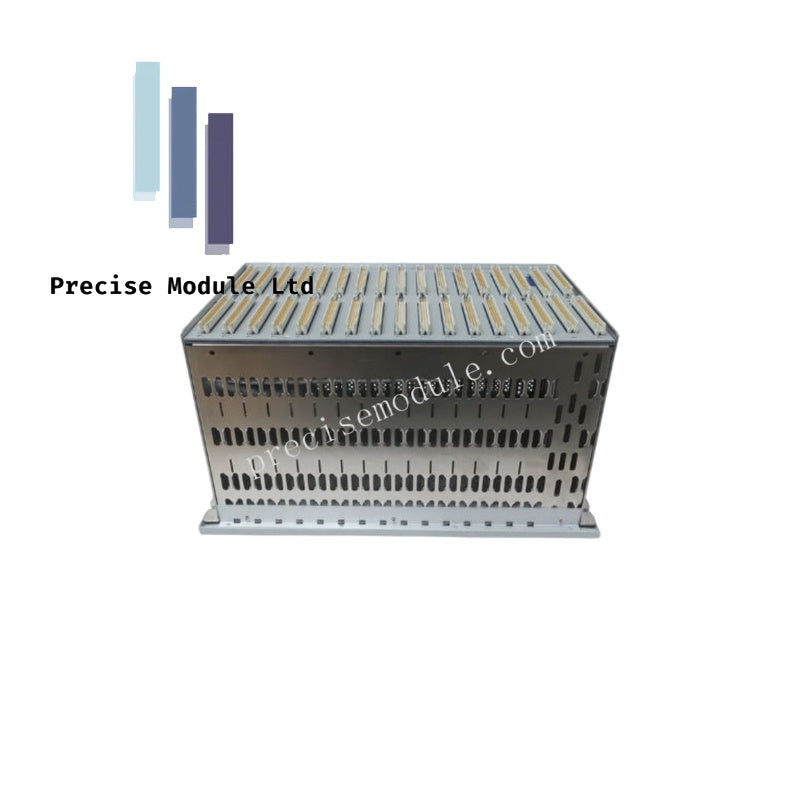

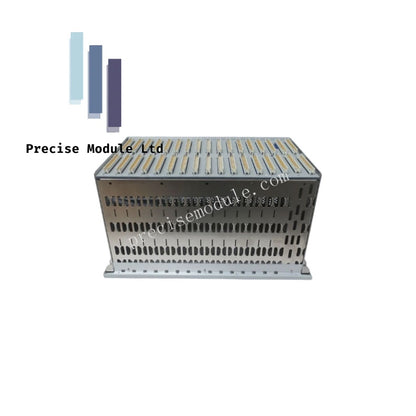

The Bently Nevada 3500/05-01-01-00-00-00, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for machinery monitoring and protection within the 3500 Machinery Protection System.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 3500/05 chassis serves as the central backplane for transient data acquisition and signal processing. Accurate eddy-current probe scaling relies on the stable -24 VDC bus provided by the rack power supplies. The backplane design ensures low-latency communication between monitor modules and the Transient Data Interface (TDI), facilitating high-fidelity rotor dynamics monitoring. During installation, verify that gap voltage validation (-10 VDC targets) is maintained across all input channels to ensure the integrity of proximity-to-vibration signal conversion. Internal bus structures are engineered for cross-talk suppression to maintain signal-to-noise ratios in high-density monitoring environments.

Frequently Asked Questions

Q: Does the 3500/05 rack support mixed-mode installation of monitor and relay modules?

A: Yes, the 14 available slots in the full-size rack accept any combination of 3500 monitor, relay, or Keyphasor modules, provided the Rack Interface Module (RIM/TDI) and Power Supplies occupy the designated far-left positions.

Q: What is the primary requirement for panel mounting this chassis?

A: The chassis requires a rectangular panel cut-out of specific dimensions to accommodate the flange. Secure the rack using the provided clamping hardware to ensure structural rigidity against mechanical vibration.

Field Installation Guidelines

• Panel Cut-out Preparation: Ensure the panel aperture conforms to manufacturing tolerances to allow for a flush fit. Use the provided clamps to secure the rack, ensuring even pressure distribution around the flange.
• Backplane Access: For panel-mounted configurations, ensure adequate clearance is available behind the panel for cable management, I/O module insertion, and maintenance access.
• Grounding and Shielding: Connect the rack chassis to a verified clean instrument earth. Use high-quality shielded twisted-pair cabling for all transducer inputs, ensuring the shield is terminated only at the I/O module barrier to prevent ground loops.
• System Integrity: Always install blanking panels in unused slots. This maintains the structural integrity of the rack and ensures proper airflow for heat dissipation across the internal backplane circuitry.
