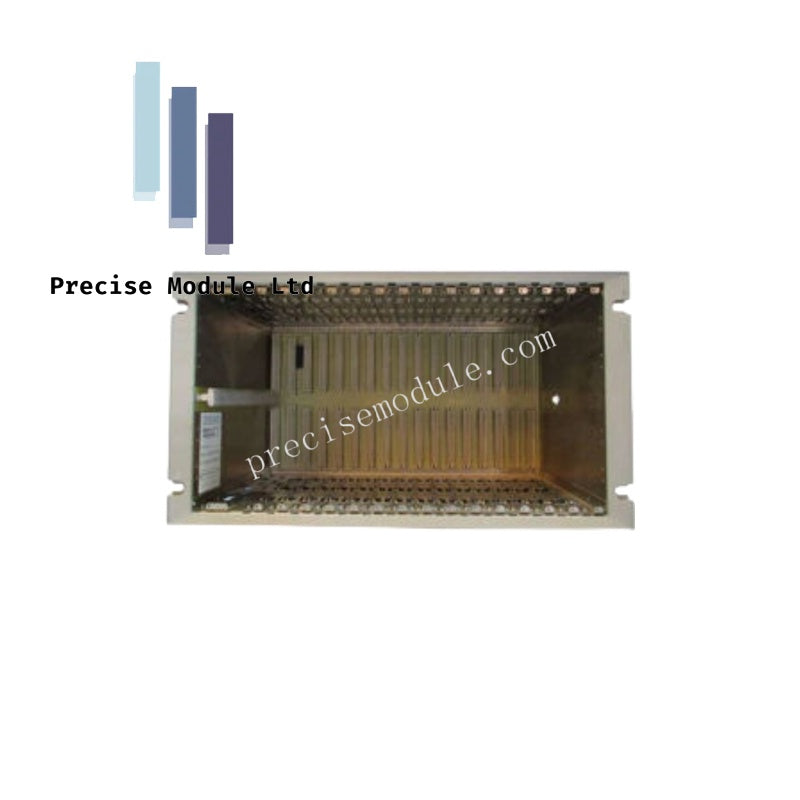

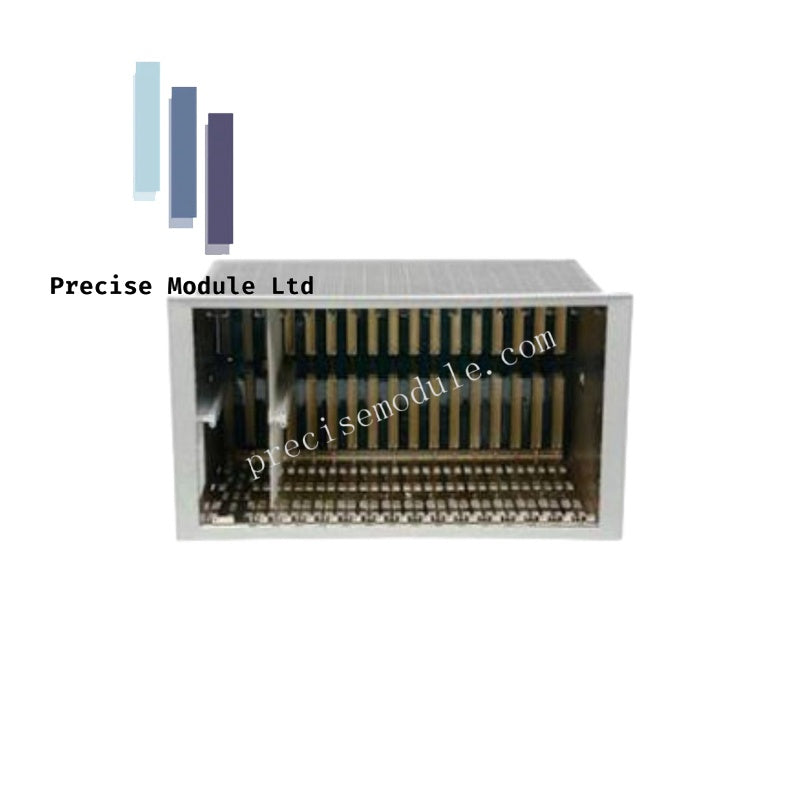

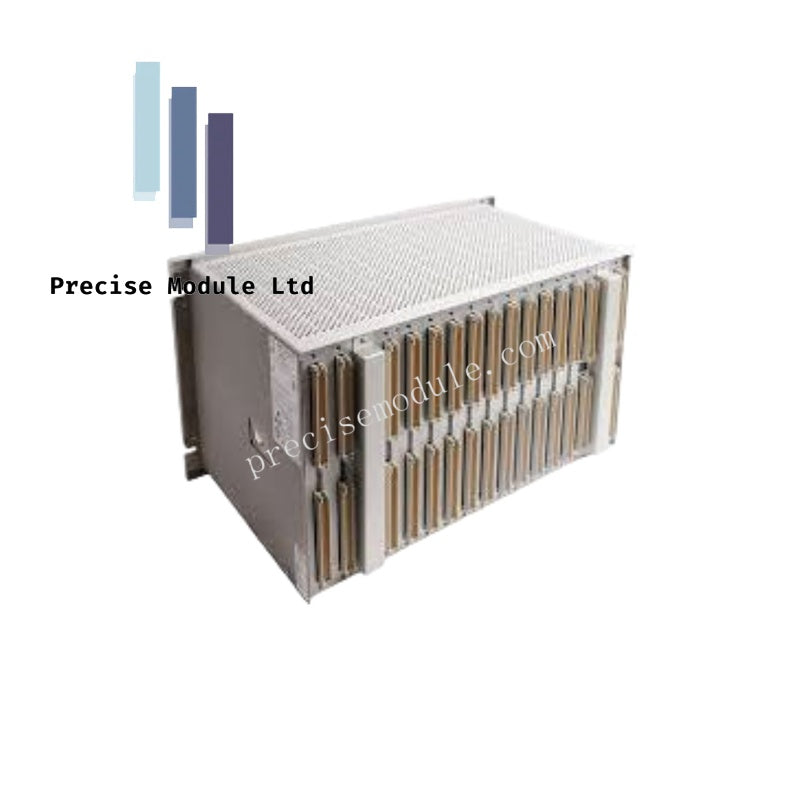

Bently Nevada 3500/05-02-04-00-00-00 Instrument Rack

Bently Nevada 3500/05-02-04-00-00-00 Instrument Rack

The Bently Nevada 3500/05-02-04-00-00-00, also cataloged as the 3500/05 Instrument Rack, serves as the primary 3500 System Chassis utilized to execute continuous, online machinery protection across API 670 platform environments. This rack provides the physical infrastructure and backplane connectivity necessary to support the integration of power supplies, Transient Data Interface (TDI) modules, and diverse I/O monitoring configurations.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Integration

The 3500/05 chassis is engineered to maintain signal integrity for high-speed rotor dynamics measurements. By providing a rigid mechanical interface and high-speed backplane communication, it facilitates precise eddy-current probe scaling and sensor data acquisition. The rack architecture allows for the insertion of modules that require strict gap voltage validation (-10 VDC targets) to ensure accurate machinery health assessment. Furthermore, the chassis design incorporates robust shielding to mitigate electrical noise, essential for effective cross-talk suppression in high-density monitoring environments.

Frequently Asked Questions

Q: Does the 3500/05 rack support module hot-swapping under normal operation?

A: Yes, all monitor modules, TDI modules, and power supplies are designed for insertion or removal while the rack is powered without interrupting the operation of other modules.

Q: Are there specific grounding requirements for the chassis?

A: The rack must be connected to a dedicated high-integrity earth ground via the chassis grounding lug to ensure proper shielding and compliance with EMC standards.

Field Installation Guidelines

1. Mounting Orientation: The unit is designed for panel mounting. Ensure the panel cutout dimensions conform to the 3500 series mechanical specifications to allow for proper heat dissipation.

2. Slot Configuration: Follow the slot assignment rules strictly; the Power Supply must occupy the leftmost slots, and the TDI module must occupy the slot specifically designated for interface communication to ensure bus stability.

3. Cabling and I/O: Route signal cables separately from high-voltage AC power lines to avoid induced noise. Use the specified internal or external intrinsic safety barriers when installing sensors in hazardous locations.

4. Thermal Management: Maintain the specified air gap around the rack to facilitate natural convection. Do not obstruct the ventilation intake or exhaust ports on the rack housing.
