Bently Nevada 3500/05-02-04-00-00-01 System Rack

Bently Nevada 3500/05-02-04-00-00-01 System Rack

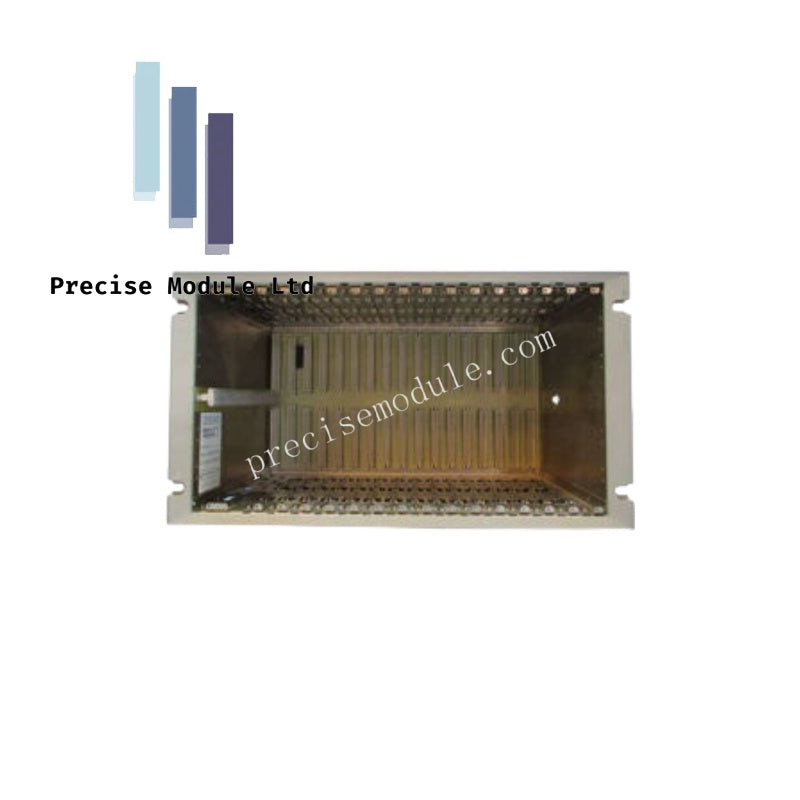

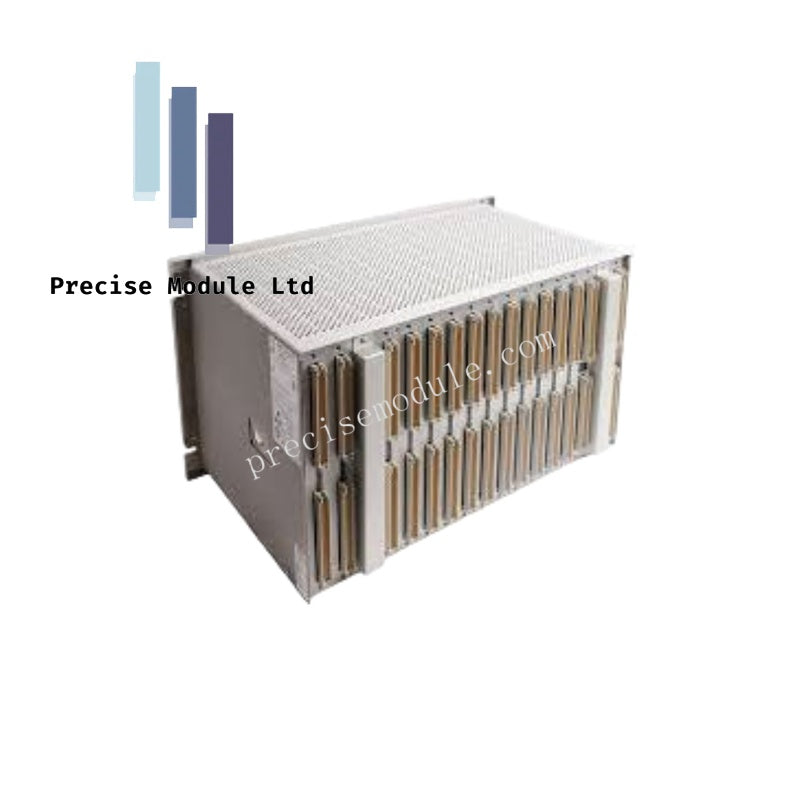

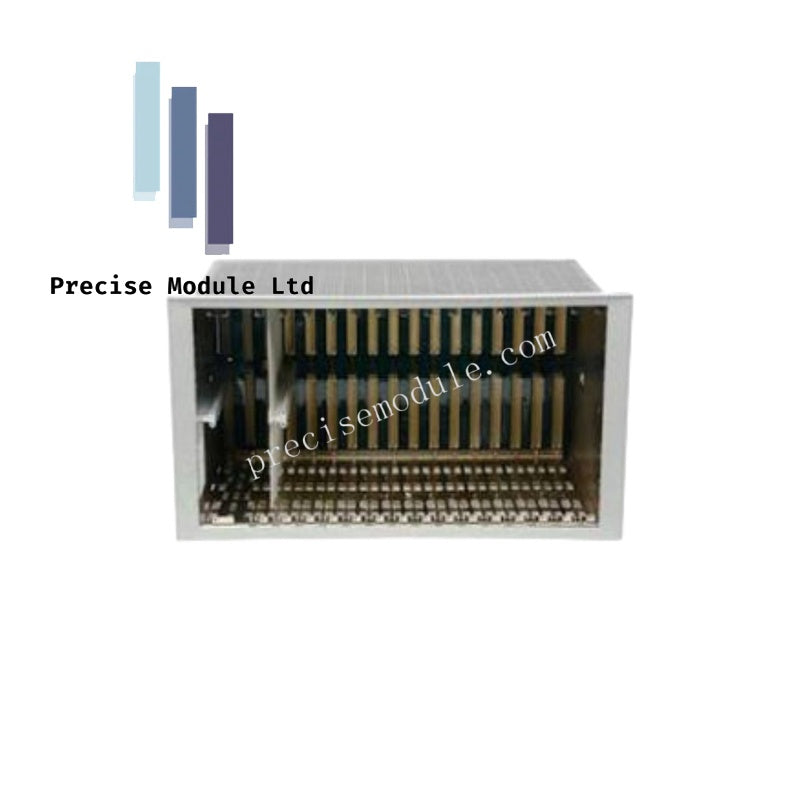

The Bently Nevada 3500/05-02-04-00-00-01, also cataloged as the 3500/05 Mini-Rack, operates as a dedicated hardware component for continuous machinery monitoring and protection within 3500 Series platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring and TSI Integration

The Bently Nevada 3500/05 Mini-Rack provides a compact infrastructure for high-density rotor dynamics monitoring where space is constrained. The backplane utilizes high-integrity signal paths to facilitate eddy-current probe scaling, necessary for maintaining accurate proximity-to-vibration data. During commissioning, technicians must perform gap voltage validation (-10 VDC targets) to ensure probe-to-target alignment accuracy. The internal backplane layout is engineered for cross-talk suppression, which is essential in the compact 7-slot configuration to minimize electromagnetic interference between high-speed dynamic channels and low-level diagnostic signals.

Frequently Asked Questions

Q: Is the bulkhead mounting option available for the 3500/05 Mini-Rack?

A: No. The bulkhead mount format is specifically restricted to the 19-inch full-size rack and is not available for the 12-inch Mini-Rack configuration.

Q: Does the Mini-Rack follow the same slot-positioning logic as the full-size rack?

A: Yes. The Power Supplies and the Rack Interface Module (RIM/TDI) must occupy the mandatory far-left slots to ensure stable power distribution and bus communication across the backplane.

Field Installation Guidelines

• Panel Cut-out Compliance: Ensure the panel aperture dimensions align with the specifications for the Mini-Rack chassis. Utilize the supplied clamps to achieve a secure, vibration-resistant fit against the panel surface.
• Module Placement: Verify that the Rack Interface Module (RIM) and all redundant power supplies are installed in the far-left slots to maintain correct system initialization.
• Shielding and Grounding: Connect the rack grounding stud to a verified low-impedance instrument earth. All transducer input cables must utilize high-quality shielded twisted-pair wire, with shields terminated according to the specific 3500 I/O module requirements to minimize ground loops.
• Environmental Integrity: Ensure the installation area remains within the specified ambient temperature range of -30 deg C to 70 deg C. Use blanking plates for all unoccupied slots to maintain proper thermal dissipation and prevent debris ingress into the backplane connectors.
