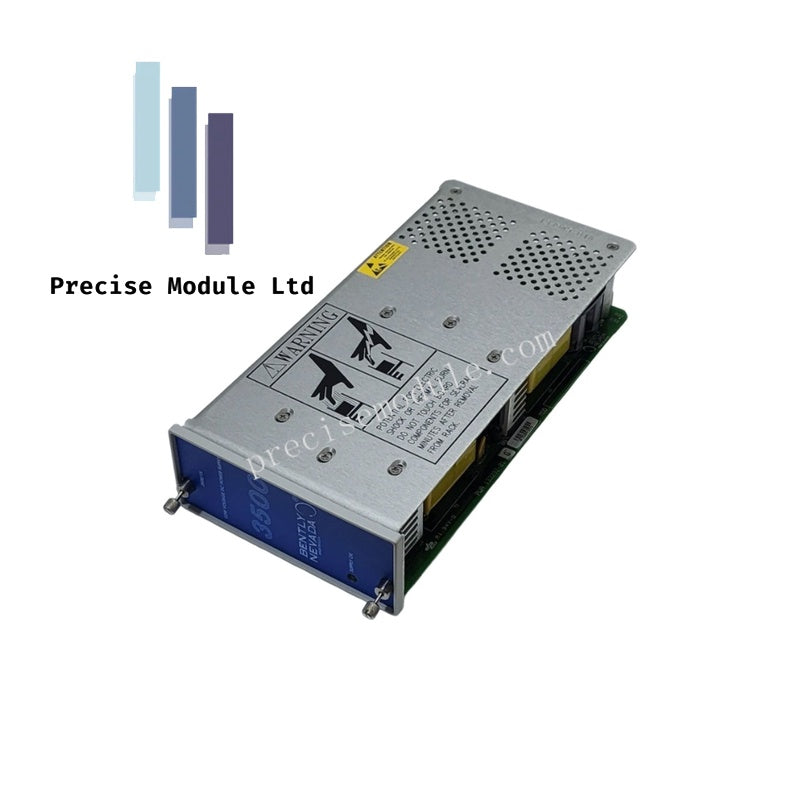

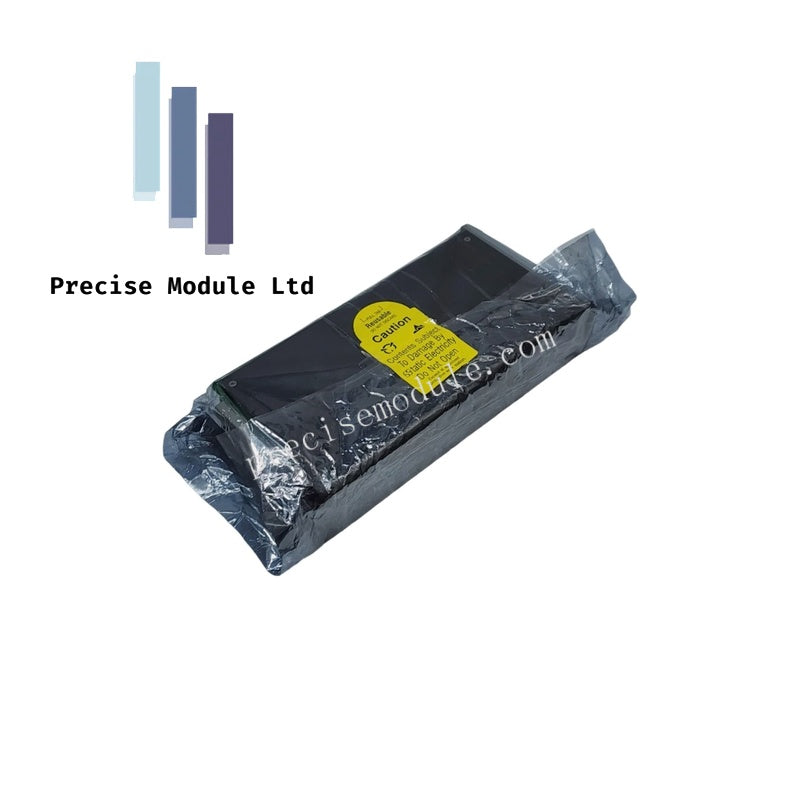

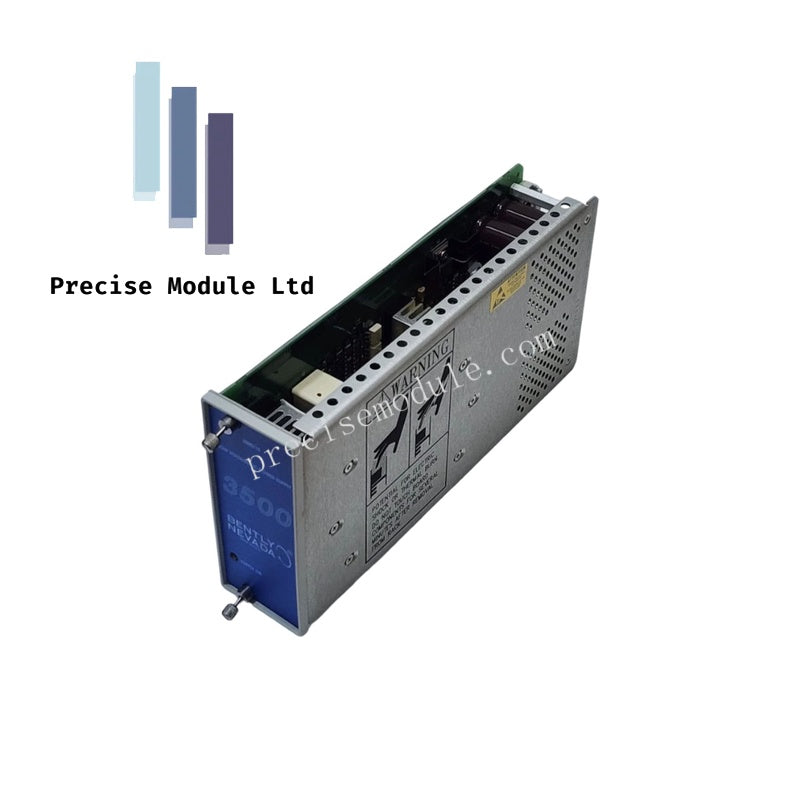

Bently Nevada 3500/15-07-07-05 (133292-01+133300-01) Power Supply Module

Bently Nevada 3500/15-07-07-05 (133292-01+133300-01) Power Supply Module

The Bently Nevada 3500/15-07-07-05, also cataloged as the 3500/15 Power Supply, operates as a dedicated hardware component for converting line voltage to internal system bus voltages within 3500 Machinery Protection System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics and Power Bus Validation

Designed for the 3500 Machinery Protection System, this unit maintains strict gap voltage validation and cross-talk suppression on the backplane power distribution rails. The module guarantees stable DC output rails to support proximity probes, eddy-current transducers, and vibration monitoring cards without introducing electrical noise into critical rotor dynamics monitoring circuits. Dual power supply configurations utilize hot-swappable redundancy where the lower slot acts as primary and the upper slot acts as backup, ensuring zero operational interruption during primary power loss or module extraction.

Frequently Asked Questions

• Q: Can the module be inserted or removed under power?
  • A: Yes, the 3500/15 module supports hot-swapping. Removing or inserting either power supply module does not disrupt rack operation provided a second operational power supply is installed in the system.
• Q: What is the structural role of dual supplies in a single rack?
  • A: When two power supplies are installed, the unit in the lower slot functions as the primary power source, while the upper slot unit serves as an active hot-backup supply.

Field Installation Guidelines

• Slot Placement: Install the 3500/15-07-07-05 exclusively in the designated half-height power supply slots located on the far left side of the 3500 rack framework.
• Grounding Requirements: Ensure the rack chassis is securely connected to the plant earth ground to maintain electromagnetic compatibility and protect internal switching circuits from transient surges.
• Wiring Verification: Verify AC or DC input voltage ranges at the terminal blocks prior to energizing the module to prevent internal fuse damage.
