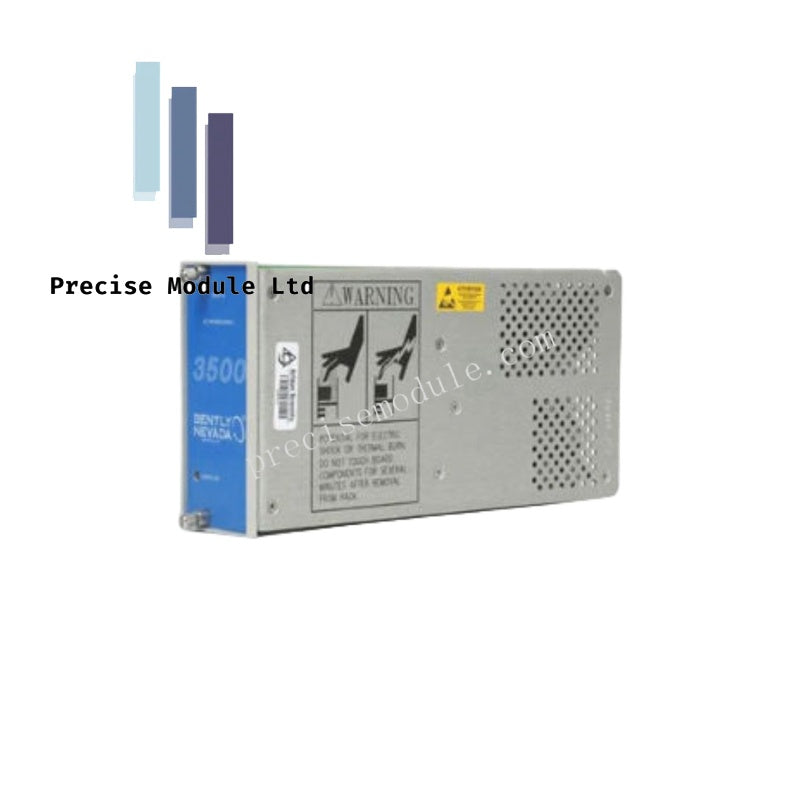

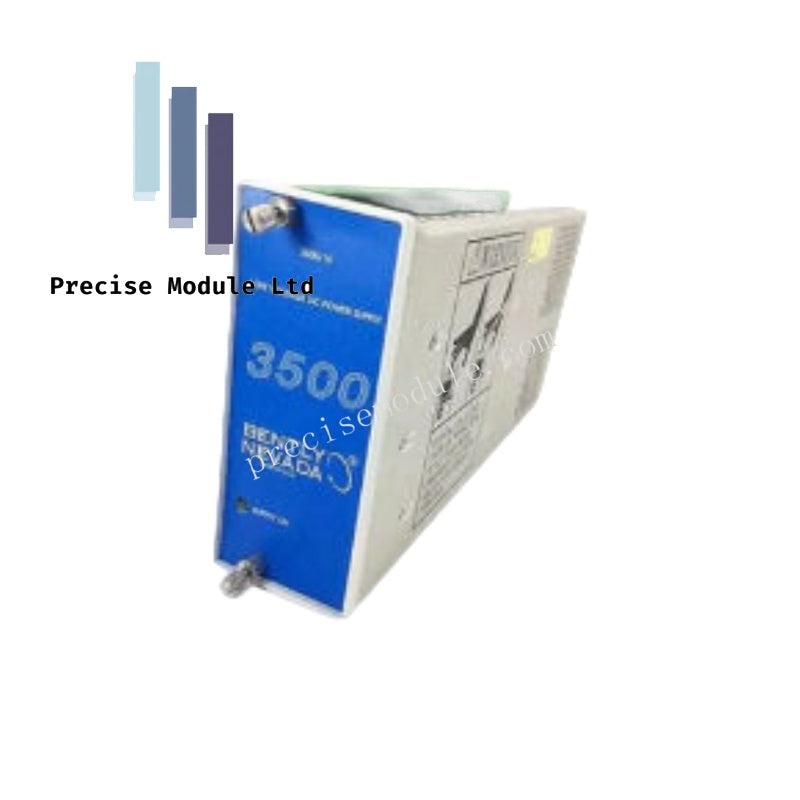

Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module

Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module

The Bently Nevada 3500/15 106M1081-01, also cataloged as the 3500/15 Universal AC Power Input Module, operates as a dedicated hardware component for power regulation and input distribution within 3500 Machinery Protection System platforms.

Hardware Specifications

Mechanical Monitoring and Rotor Dynamics Compatibility

The 3500/15 input module is designed to provide stable power conditioning for rotor dynamics monitoring equipment. It ensures that incoming AC power is properly isolated and filtered before distribution to the rack backplane, which is essential for maintaining gap voltage validation (-10 VDC targets) in proximity probes. This module minimizes electrical noise injection, preventing potential interference with eddy-current probe scaling and ensuring the precision of high-speed vibration data acquisition. Its robust design supports high-reliability operation across varying site power conditions.

Frequently Asked Questions

Q: Is this input module compatible with existing 3500/15 power supply modules?

A: Yes, the 106M1081-01 is a component designed for integration with the 3500/15 power supply assembly. It must be installed in the designated power supply slots on the left side of the 3500 rack.

Q: What is the operational behavior when used in a redundant power configuration?

A: In a redundant setup, the system utilizes the lower and upper rack slots for power input modules. The module facilitates seamless operation where either input can sustain the full rack load, ensuring no disruption during module maintenance or primary power failure.

Field Installation Guidelines

• Slot Assignment: This module must be installed within the dedicated power supply slot area on the left side of the 3500 instrument rack.
• Mechanical Seating: Ensure the module is fully aligned with the backplane connector guide rails. Firmly seat the module and secure the front panel captive screws to guarantee proper electrical grounding to the rack frame.
• Power Wiring: Verify input voltage is within the 85 to 264 VAC range at 47 to 63 Hz. Use appropriately rated cabling to accommodate peak in-rush currents of up to 30 A.
• Environment: Maintain the operating environment between -30 deg C and +65 deg C with humidity levels below 95% non-condensing to prevent performance degradation of internal electronic components.
